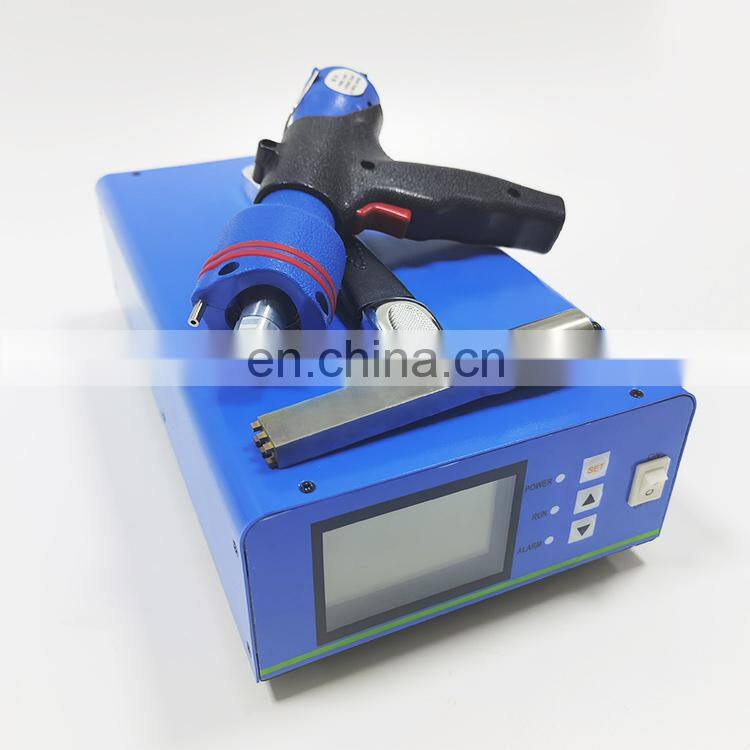

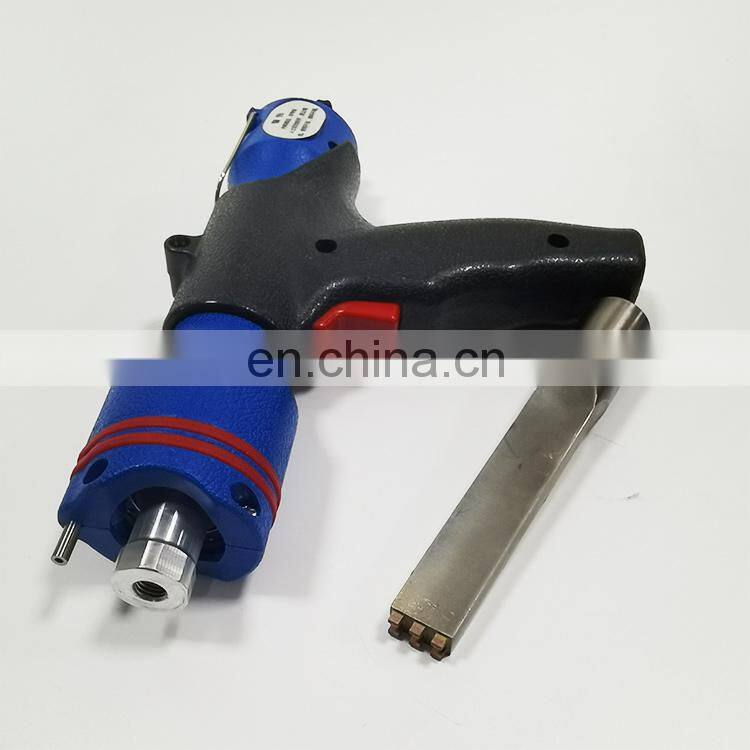

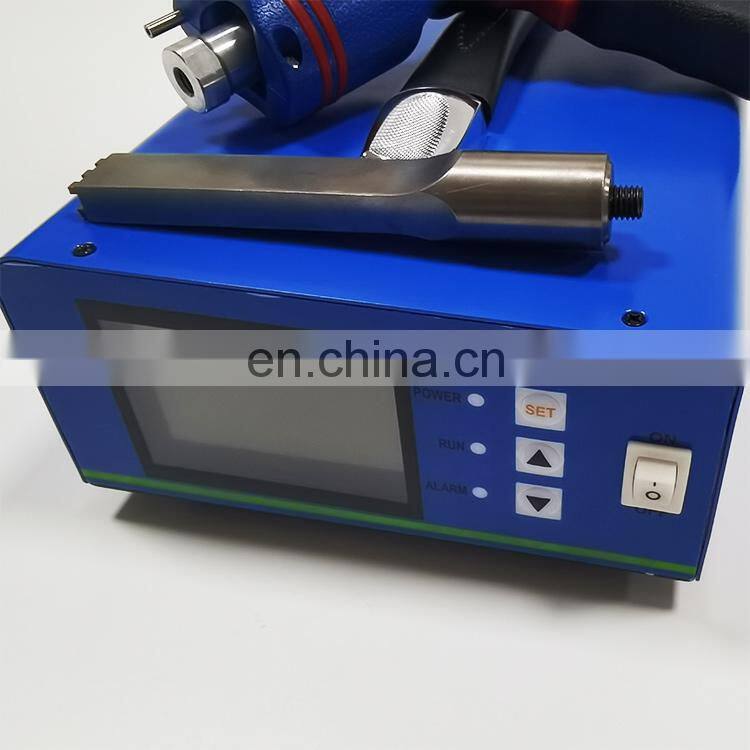

Portable Manual Mini Ultrasonic N95/kn95 Masks Non Woven Ear Loop Spot Welding Machine With Horn for 2 Layer Face Mask
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Customized High Quality Safety Ultrasonic Hand Held Welding Machine for Auto Plastic Parts
-
Professional Customized Hand Held Non Woven Handle Loops Ultrasonic Welding Machine for N95mask Kn95mask Hed Loop Welding
-
Customized Portable Manual Ultrasonic Spot Welding Machine Ultrasonic Handle Sealing Machine For Fabric
-
Hand Held Manual Mask Inner Ear Loop Belt Ultrasonic Spot Weld Machine / Machine Ouder Par Points Ultrasons
-
Portable Ultrasonic Spot Welding Machine Welder for Automotive Plastic Parts
-
Hot Sale Portable Hand Face Mask Earloop Ultrasonic Spot Welding Machine / Handheld Ultrasonic Plastic Welder Gun
Product Description
Products Description
Portable Manual Mini Ultrasonic n95/kn95 Masks Non Woven Ear Loop Spot Welding Machine with Horn for 2 Layer Face Mask
DIZO team would like to supply you the exact technical parameters after confirming your related technical processing requirements as the application, material feature, thickness, dimension, efficiency demand etc. You can get one-stop source for related parts of Ultrasonic welding machine. Ultrasonic welding machine: transducer, booster, welding horns, generator etc.
Service: | OEM/ODM |
Voltage: | AC220V±10V or AC110V±10V , 50/60HZ |
Max current: | 15 A |
Power: | 500W/600W/700W/800W Depend on Usage |
Frequency: | 15KHz/20KHz/25KHz/30KHz Depend on Usage |
Application: | Plastic, Non-woven Fabric, Nylon and so on |
Welding Area: | 4*4mm ~ 10*10mm |
Delay Time/Weld time/Hold Time: | 0.01~9.99S |
Operation Mode: | Semi-automated |
Display: | Intelligent Digital |
Type: | Portable Spot Welding |
Material: | Aluminum |
Material of welding horn: | Magnesium Aluminum Alloy/Titanium Alloy/Steel Alloy |
Core selling points: | Accurate temperature control/Flexible Manufacturing/Low Maintenance Cost/Sustainable/Low Noise Level/High Safety Level/Easy to Operate/Long Service Life/High Rigidity/High-accuracy |
Details Images
Ultrasonic welding is the process of converting electric current into electric energy through ultrasonic generator. The converted high-frequency electric energy then converted into the mechanical motion of the same frequency again through the transducer, and the mechanical movement is transmitted to the welding head through a set of horn device which can change the amplitude. The vibration energy received by the welding head is transferred to the joint of the work piece to be welded. In this area, the vibration energy is converted into heat energy by friction, and the plastic is melted. Ultrasonic can be used not only to weld hard thermoplastic plastics, but also to process fabrics and films. Heat energy comes from the reciprocating movement of a work piece on another surface with a certain displacement or amplitude under a certain pressure. Once the expected welding degree isreached, the vibration will stop, and at the same time, there will still be a certain pressure applied to the two work pieces to cool and solidify the just welded parts, thus forming a close combination.
DIZO team would like to supply you the exact technical parameters after confirming your related technical processing requirements as the application, material feature, thickness, dimension, efficiency demand etc. You can get one-stop source for related parts of Ultrasonic welding machine. Ultrasonic welding machine: transducer, booster, welding horns, generator etc.
Ralated Products
Company Profile
Q1: Are you a manufacturer? |
A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds. |
Q2: Where is your factory? Can I visit your factory? |
A2: Dizo located in the city of Wuxi. |
Q3: How to buy your machine? |
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number. |
Q4: Are we still need to install the machine after we got? |
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well. |
Q5: How about your warranty? |
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine. |
Q6: How can you guarantee we receive a good performance product? |
A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome. |
Q7: How soon can you deliver the equipment? |
A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days. |
Q8: Who do I talk to when I want to start an application? |
A8: Dizo has experiences of sales engineers to provide the assistance and support you require. |
Q9: Can I get a discount or can you do something with the price? |
A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance. |
Q10: Packaging & Shipping |
A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard. |
