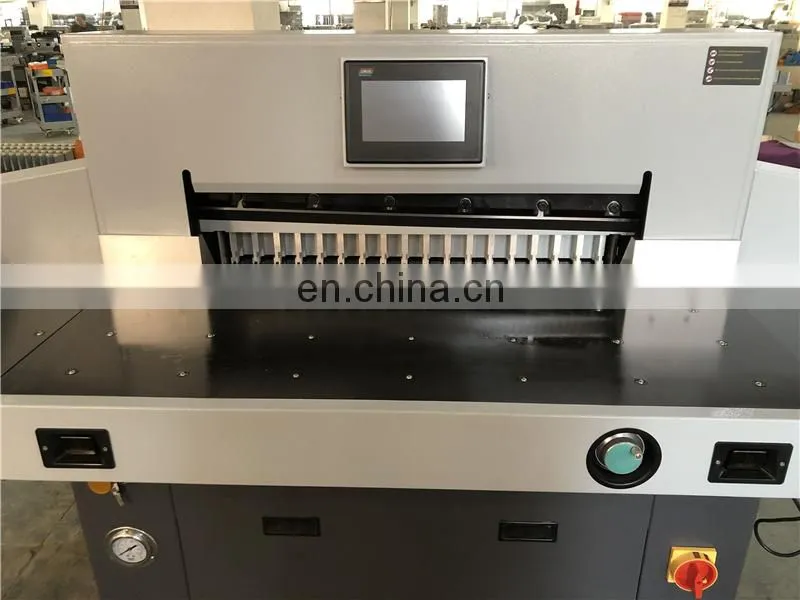

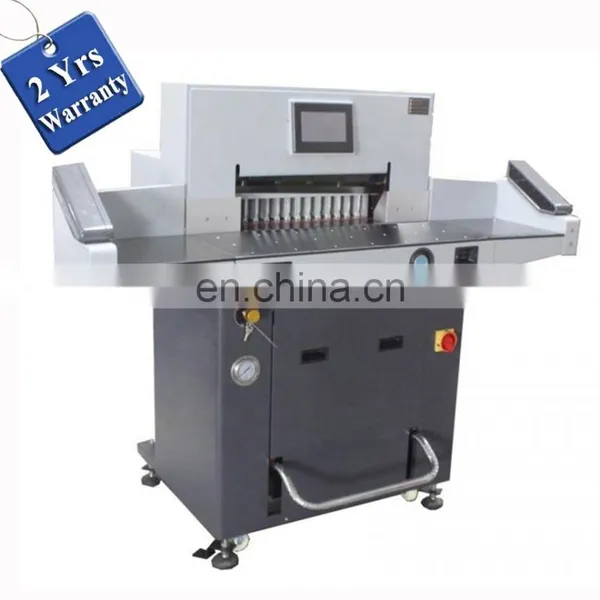

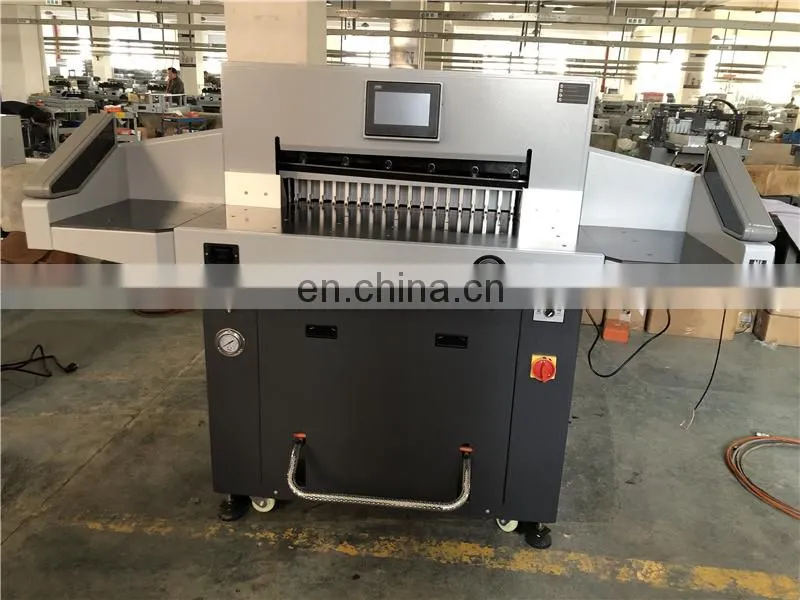

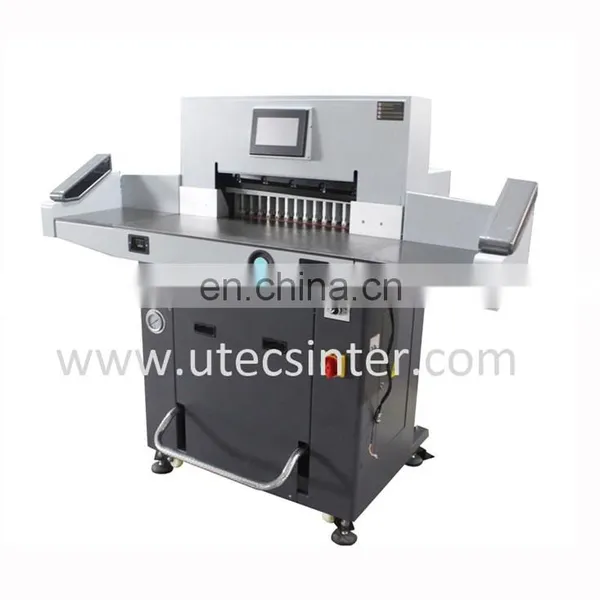

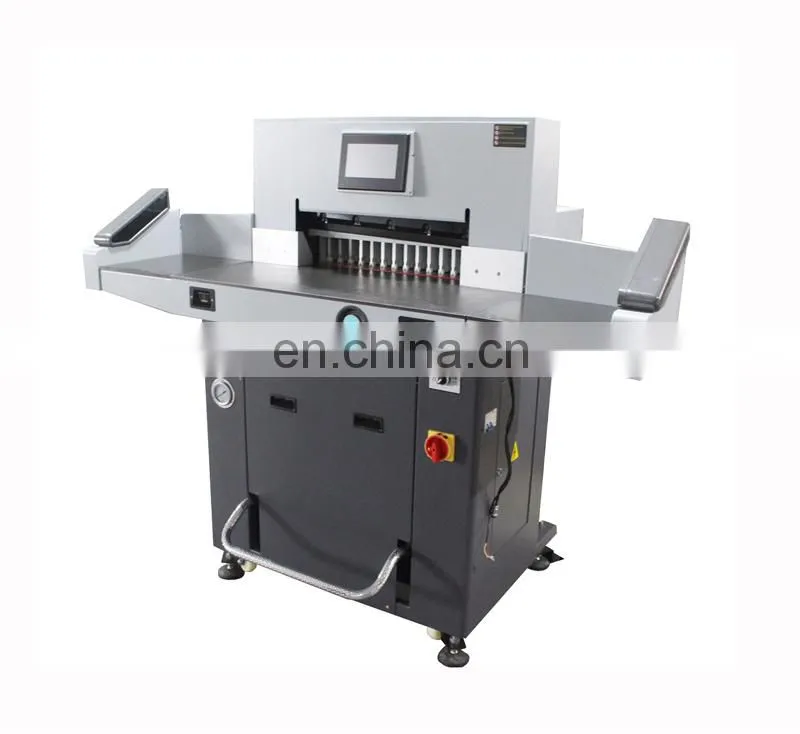

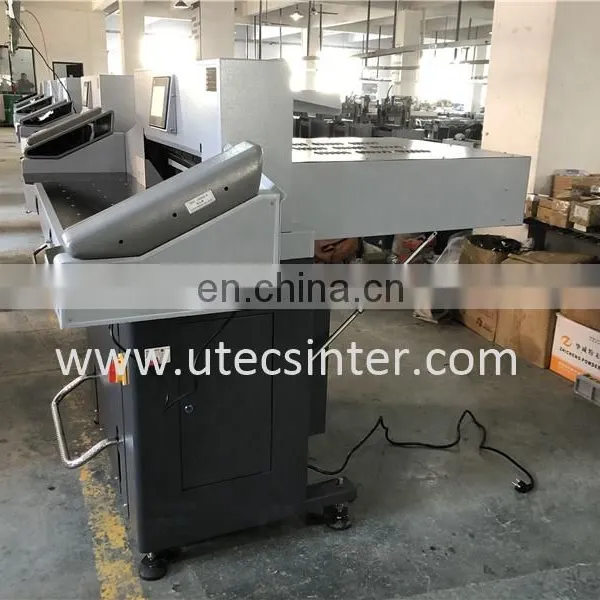

GC720HL POLAR card board guillotine paper cutter trimmer machine with side table and floating balls beads
Video demonstration only for reference
Video (GC720H): /watch?v=wT9Z-XHgRBo
Video (GC720HL): /watch?v=YoV9Y1VDrA0
Parameters:
|
Models |
GC720H |
GC720HL |
|
Features |
No side table and air pump |
With side table and air pump |
|
Max Cutting Size |
720*720MM |
|
|
Max Cutting Thickness |
80MM |
|
|
Min. Cutting Size |
30MM |
|
|
Cutting Accuracy (mm) |
±0.2 |
|
|
Ball table |
√ |
|
|
Press Way |
Hydraulic |
|
|
|
+Pedal |
|
|
Cutting Way |
Hydraulic |
|
|
Display |
7" Touch Screen |
|
|
Program |
√ |
|
|
Arithmetic |
√ |
|
|
Push Motor |
Step motor |
|
|
Power |
220V(110V)±10%, 50/60HZ, 2.75KW |
|
|
Side Table |
Optional |
|
|
Machine Size |
1580*1280*1480 mm |
|
|
Net Weight |
About 480 kg |
|
Infrared safety protection design

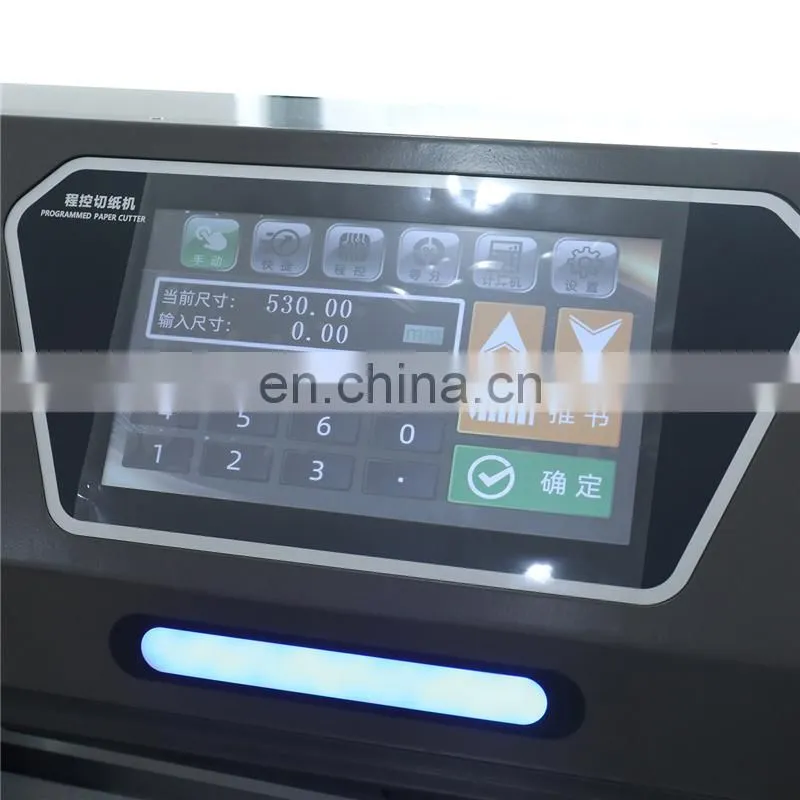

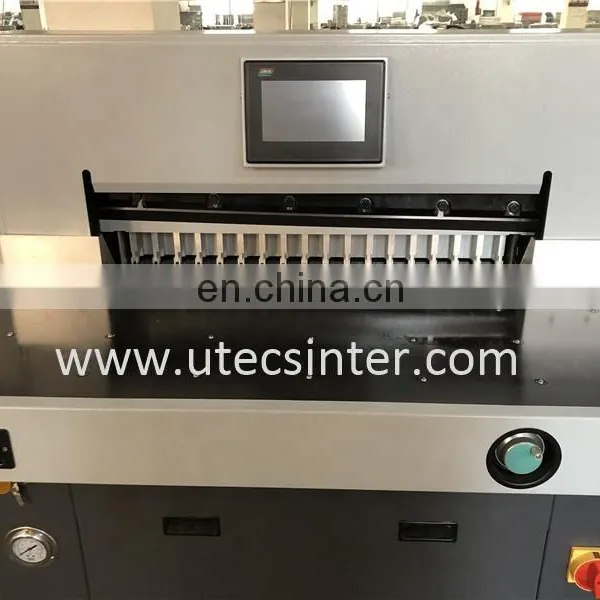

Man-machine interface design,100 groups*96 cuts program

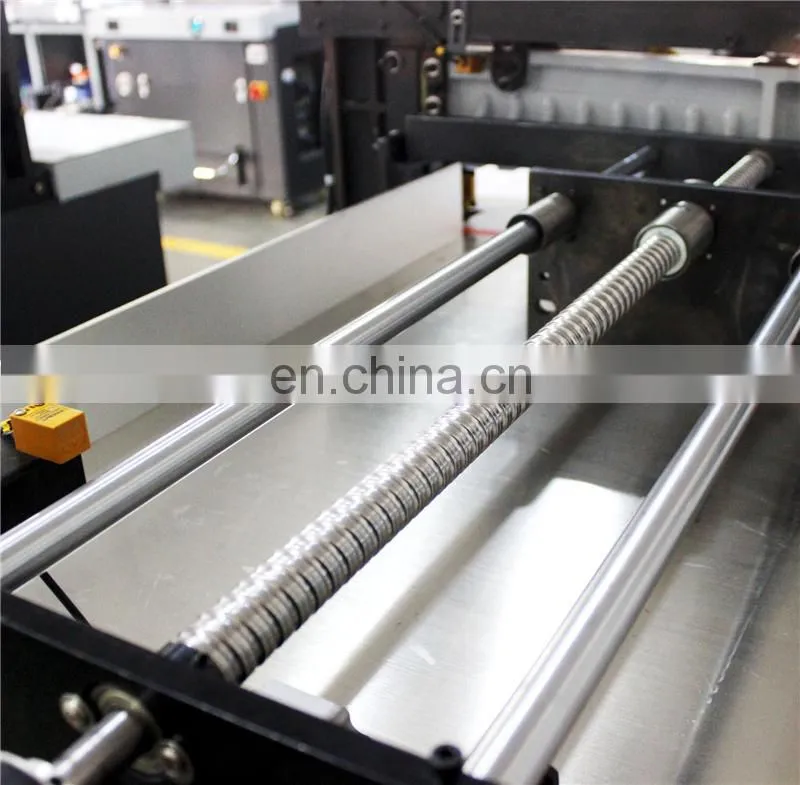

Back platform without groove design overhanging ball screw push paper more stable
High speed hydraulic system, high cutting speed and high efficiency

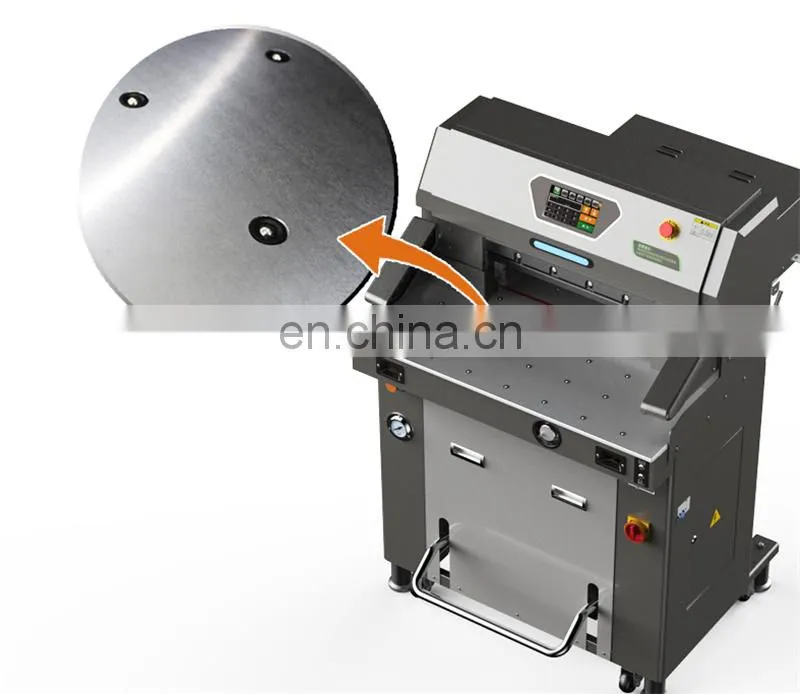

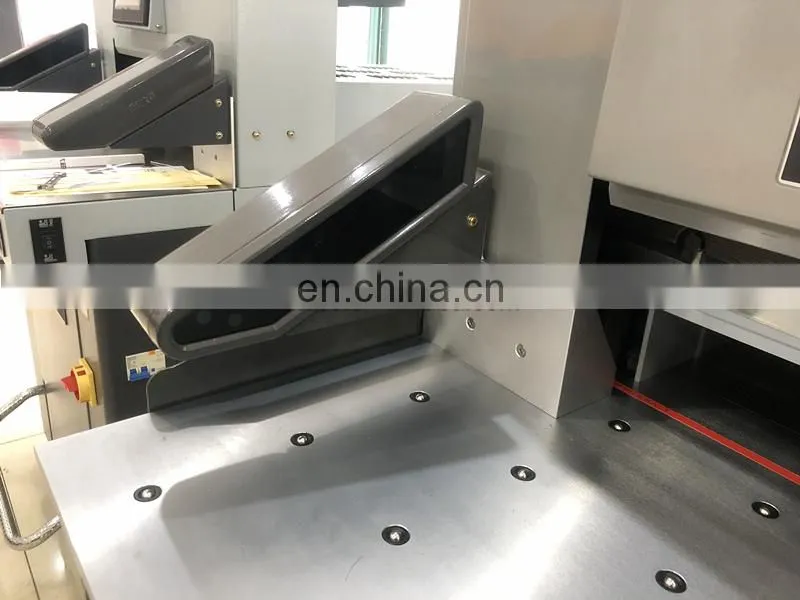

8mm thick aviation aluminum table with floating balls

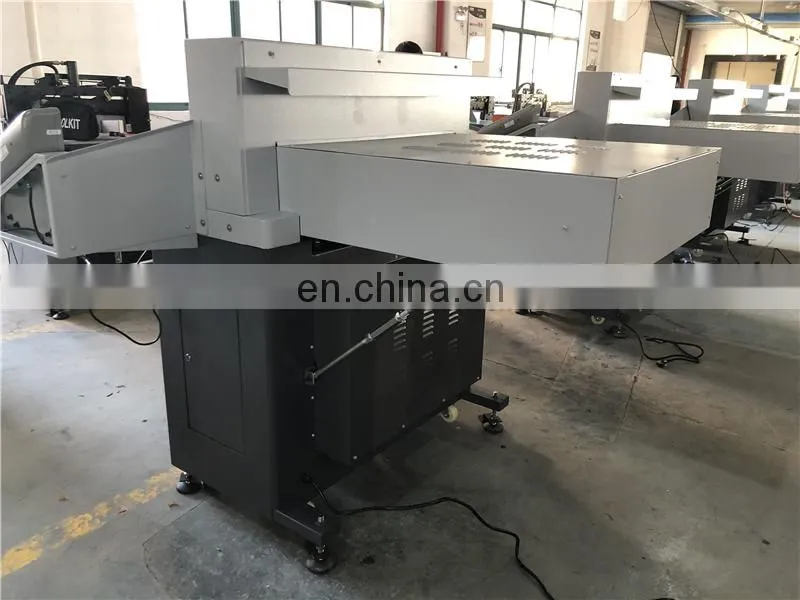

Push book platform can be folded,covenient transportation

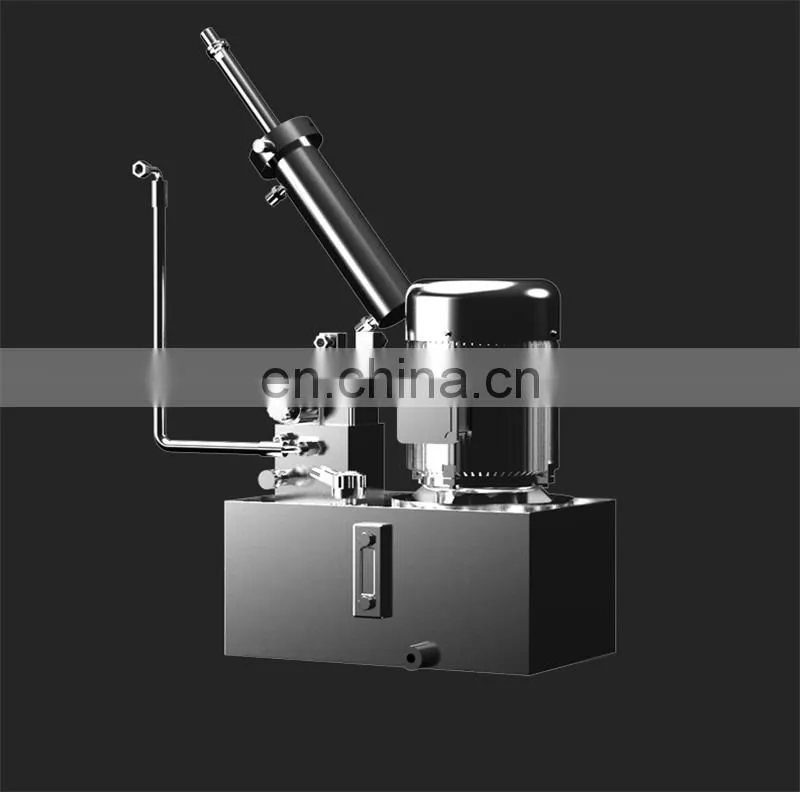

Dual hydraulic power control system, Taiwan main motor, providing strong power, imported hydraulic valve parts
Mechanical foot, cut riding nail book pre-alignment more convenient, higher precision
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
