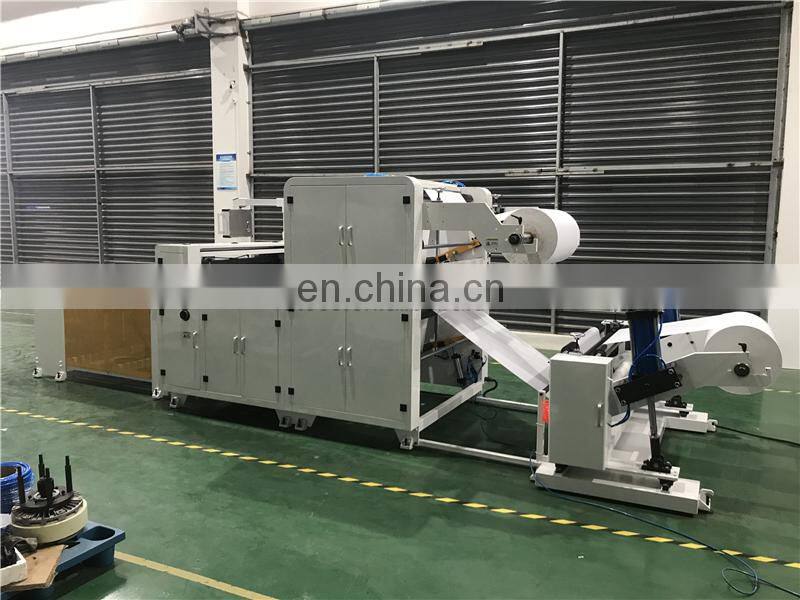

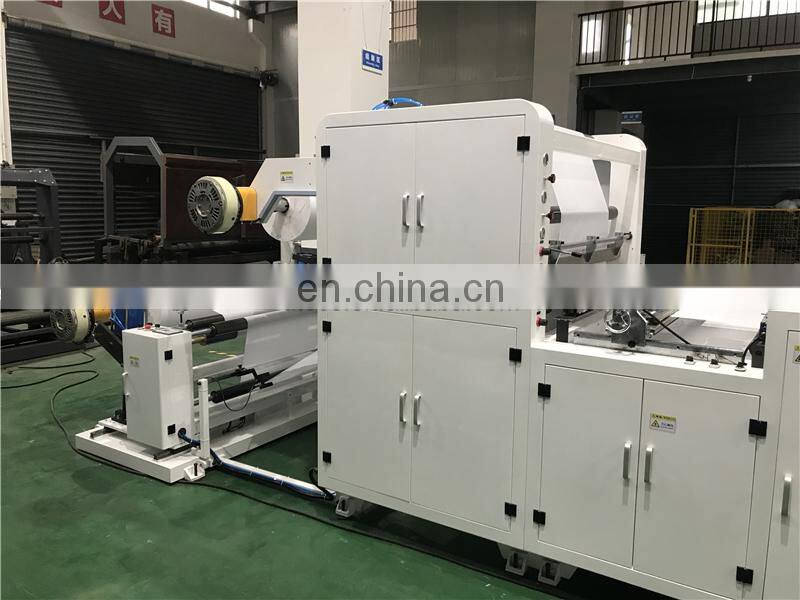

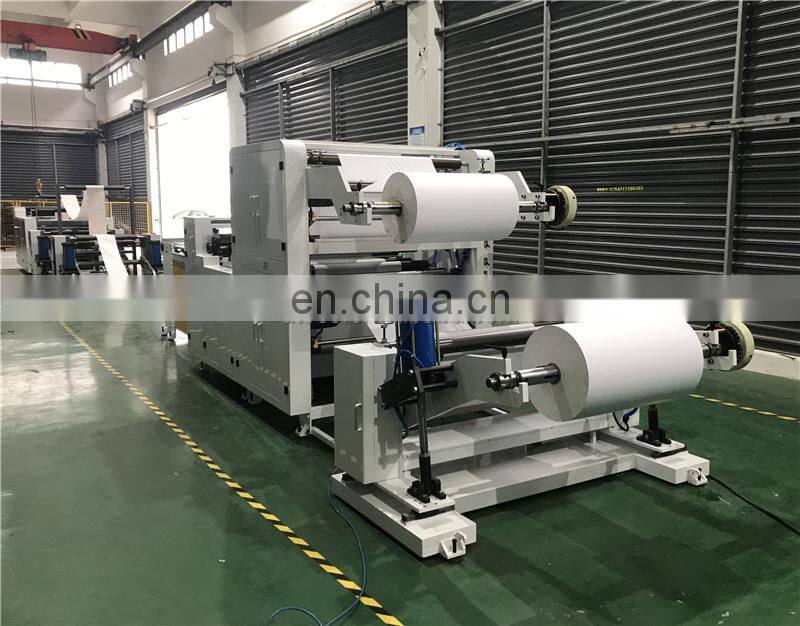

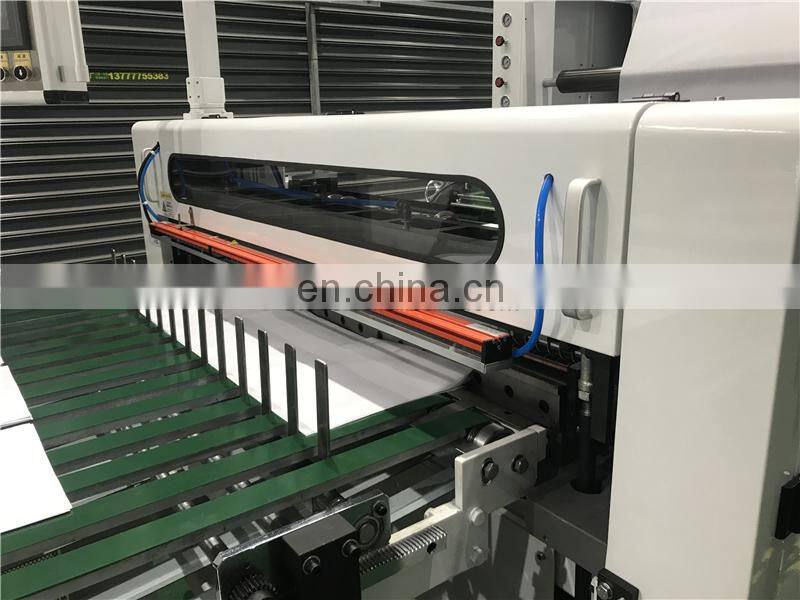

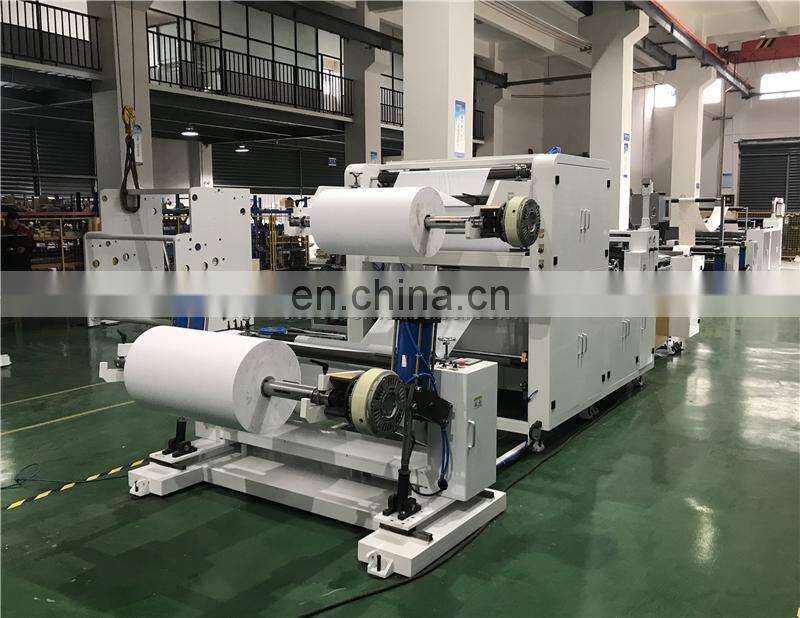

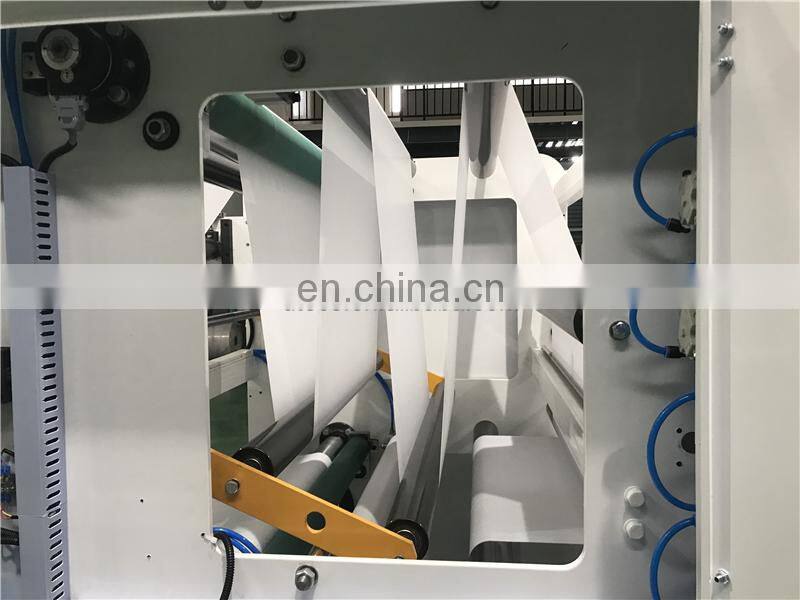

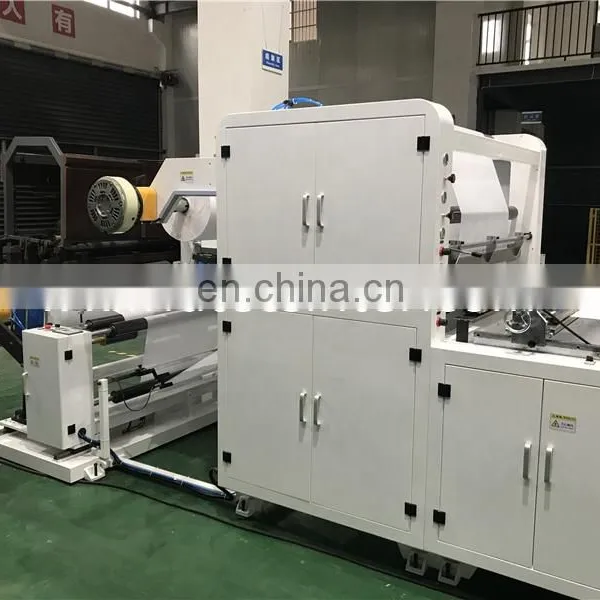

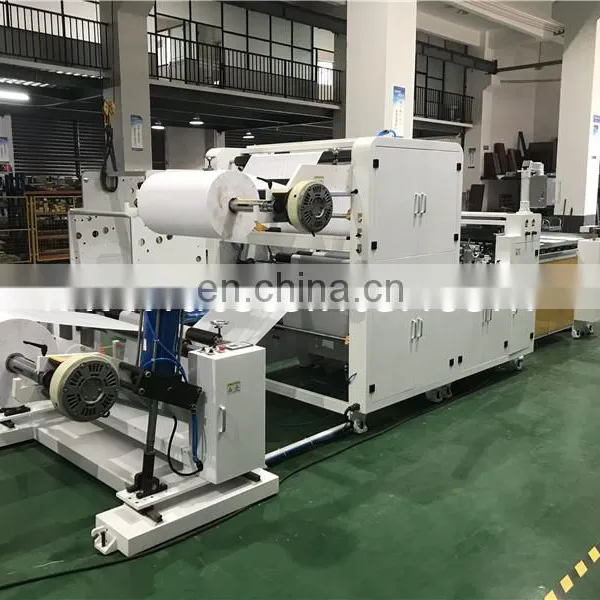

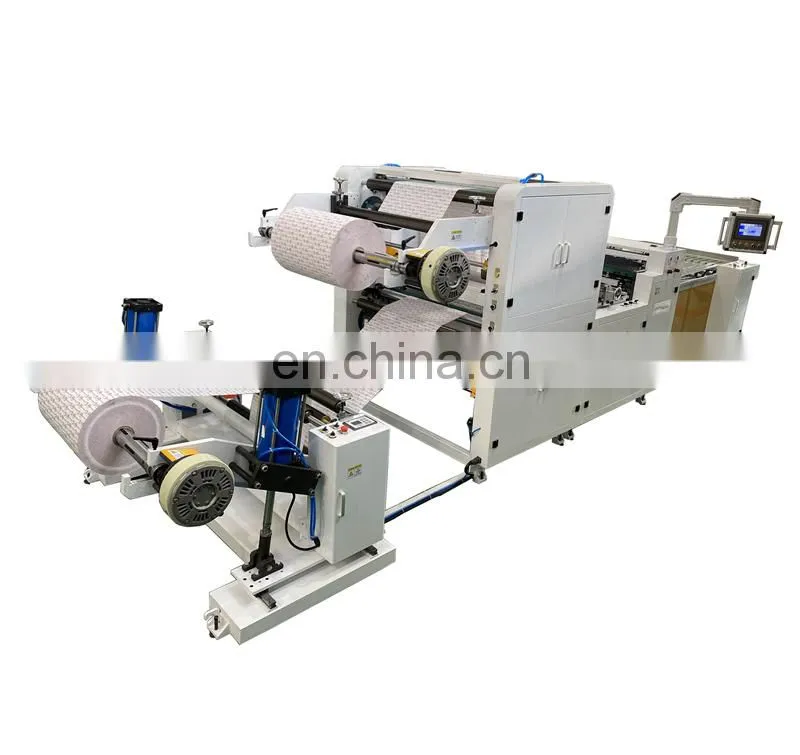

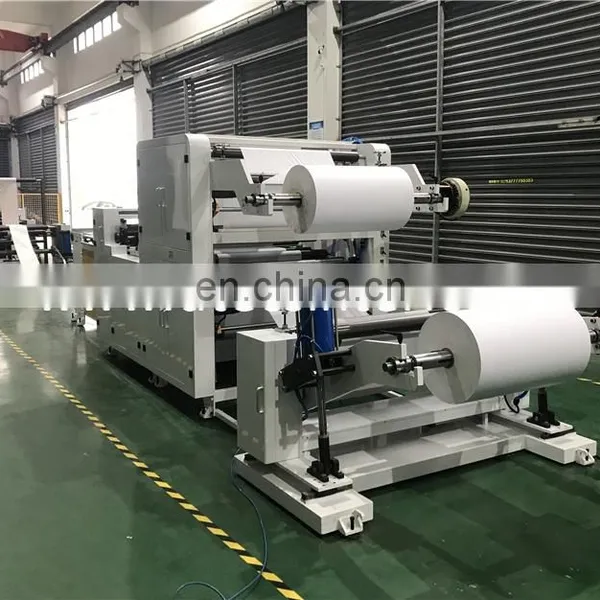

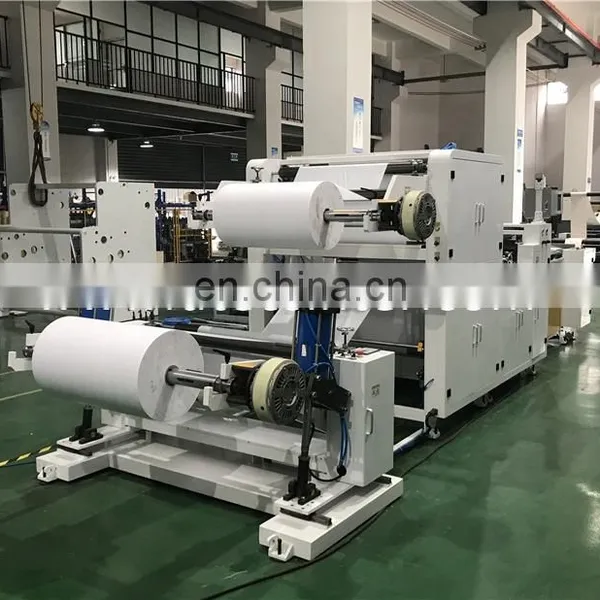

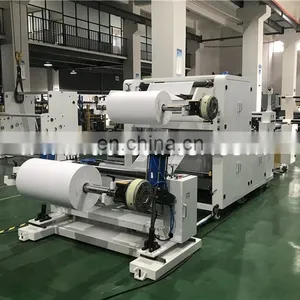

UTHQ1100K Automatic Dutch oven fryer parchment oil wax paper cross cutting sheeting machine
Video demonstration only for reference
Video: /watch?v=xNAJBfDO26E&t=2s
Description:
This machine is suitable for wax paper, adhesive paper, silver/golden laminated paper board, printed composite paper, paper-plastic composite reel material transverse cutting. It is widely used in paper processing industry, printing and packaging industry, etc.
Features:
1, Sheets can be fed to high-level printing machine directly.

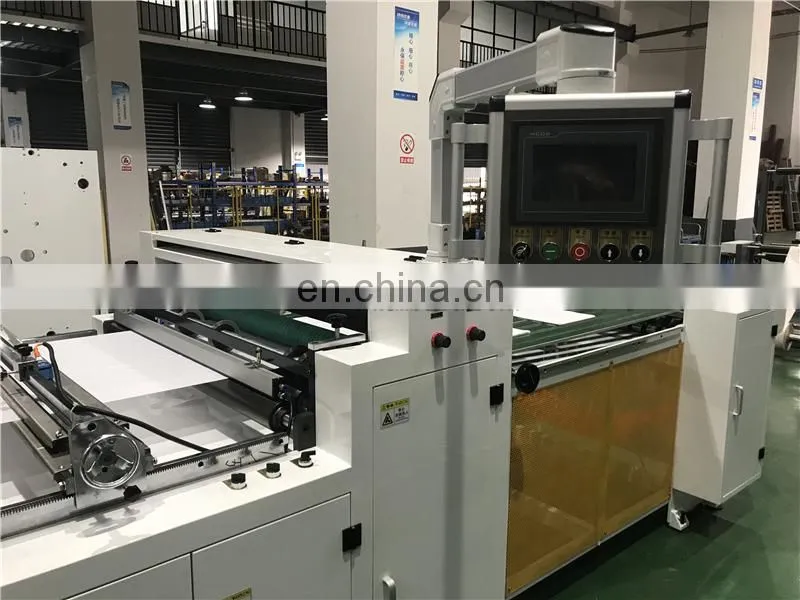

2, Running stably at high speed, LCD touch screen +PLC controlling, easy to operate and convenient for maintenance.

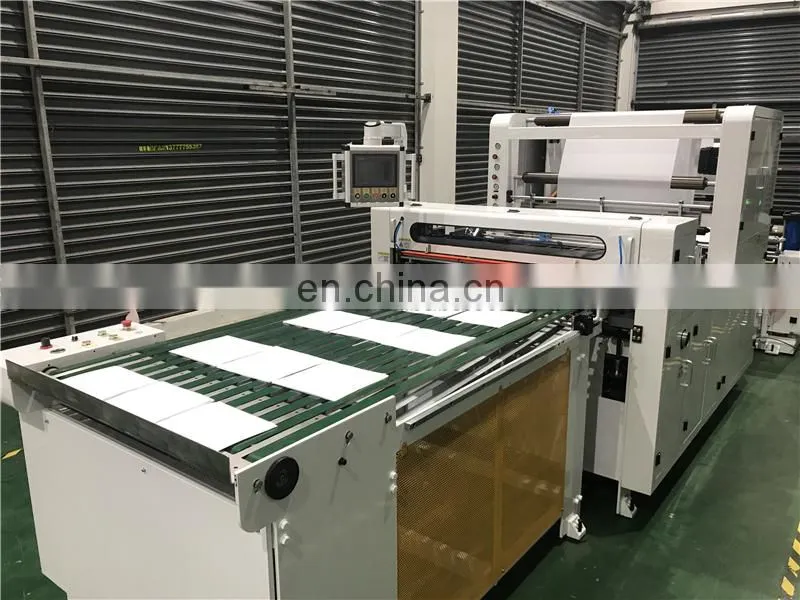

3, Automatic pile stacking and conveyor delivery system
4, It adopts servo motor for constant length cutting
5, High stability and long durability
Parameters:
|
Model |
UTHQ1100K |
|
Max sheeting speed |
150 cuts/min |
|
Max feeding speed |
150 m/min |
|
Max cutting width |
1100mm |
|
Max unwinding diameter |
Φ1200mm |
|
Thickness range of paper |
15-200g |
|
Cutting precision |
±0.2mm |
|
Cutting length range |
X≤800mm |
|
Max. Piling height |
≤100mm |
|
Power supply |
AC380V×50HZ/60HZ |
|
Power |
12KW |
|
Total weight |
5000KG |
|
Overall Dimension |
8000*2100*2000mm |
The actual output is based on paper material, paper gram weight, cutting length, number of roll paper, operator technology and operation condition
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?

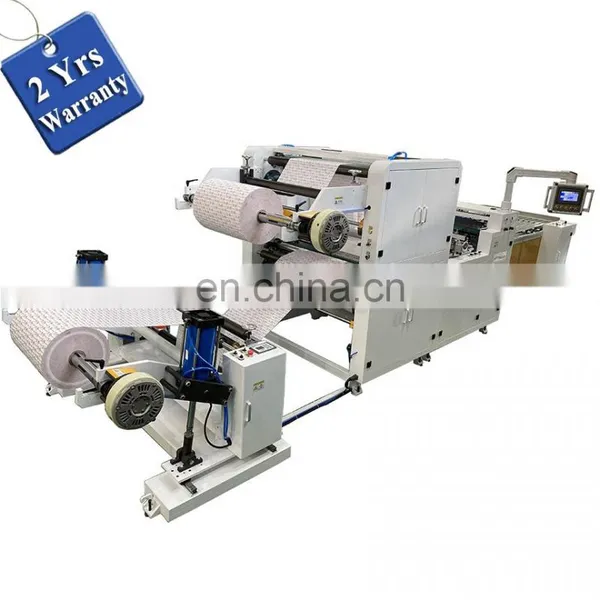

A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Container Load and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
