UTM850B Underwear Shirt Medicine Automatic Paper Cardboard Box Window Patching Machine

UTM850B underwear shirt medicine Automatic paper cardboard box Window patching Machine

Description:

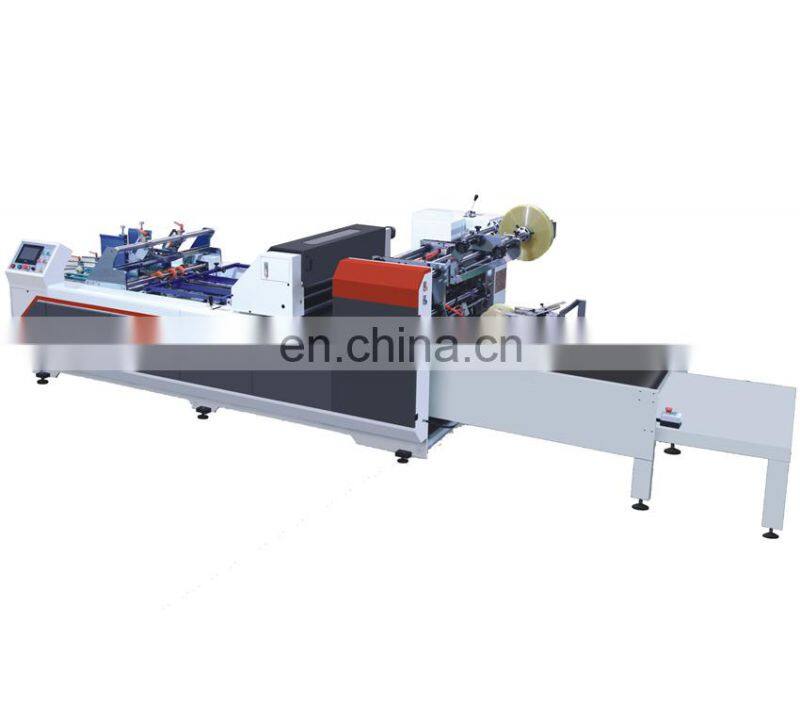

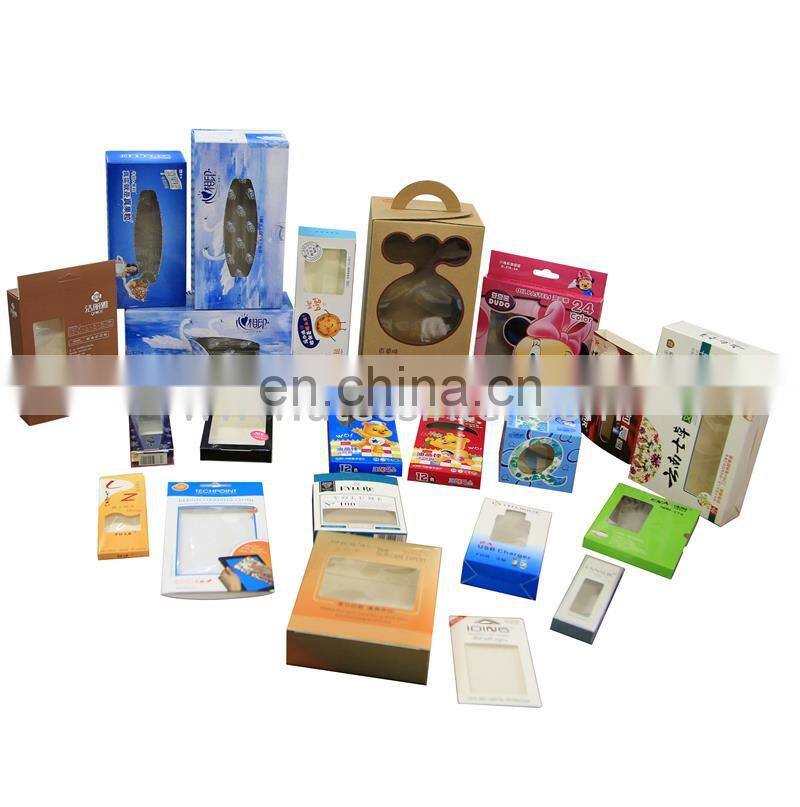

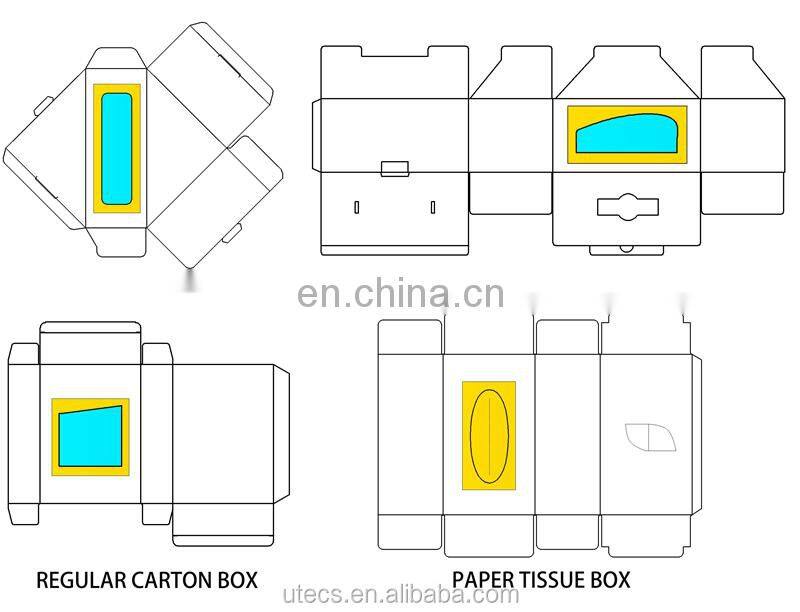

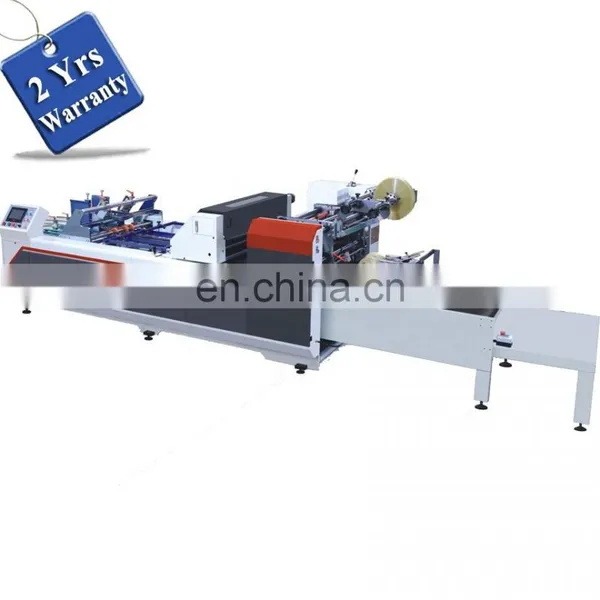

The model UTM850B window patching machine is widely used for gluing transparent films on the windows of various carton boxes such as tissue box, medicine box and shirt box etc. The machine combines following five units: paper sheets feeding unit, positioning adjustment unit, gluing unit, film patching unit, delivery unit. Heavy duty steel structure equipped ensures the machine running in high stability and reliability.

Features

1, Rotary film cutting + Single group film applicator

2, Servo motor paper feeding

3, Servo motor film feeding

4, Paper receiving step move system with batch counting

5, Paper vacuum conveyor belt

6, Double sheet / empty sheet gluing rising automatically

7, Paper length L <260mm  for double sheet mode (optional)

8, Film printing surface tracking (optional)

9, Film patching with hole punching (optional)

10, Tissue box film middle cut (optional)

Parameters:

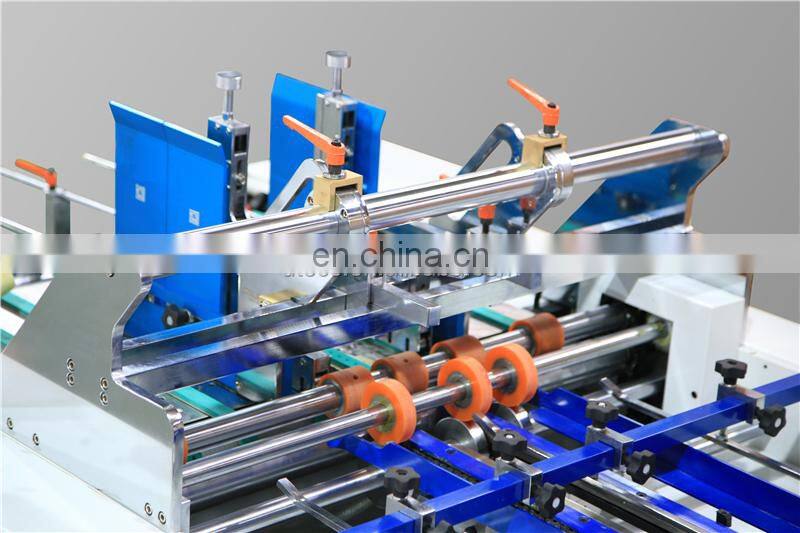

Paper  Feeding  Section:

Adopt belt feeding paper, it is suitable for coated, reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.

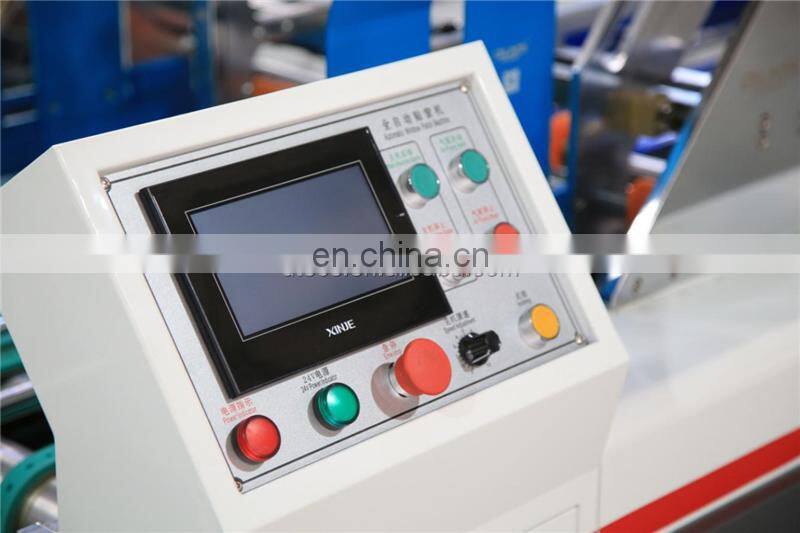

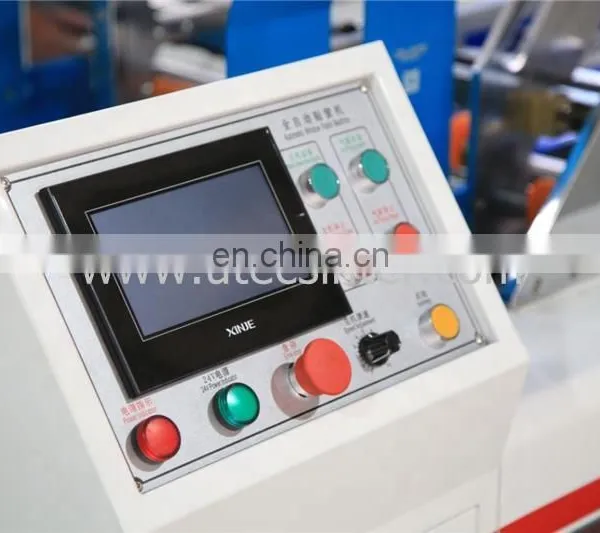

Operating Interface:

All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button.

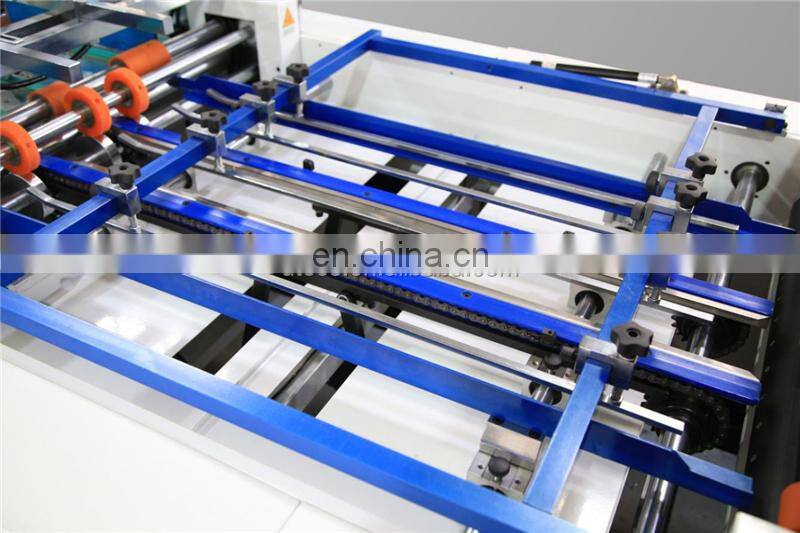

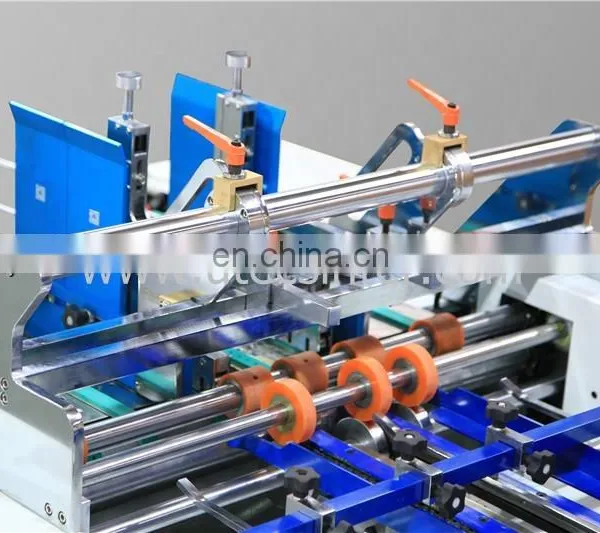

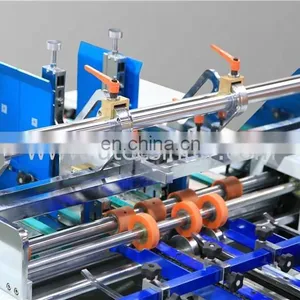

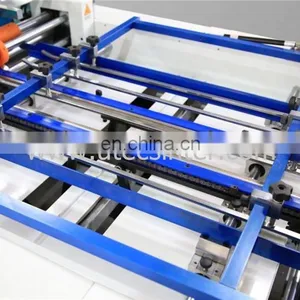

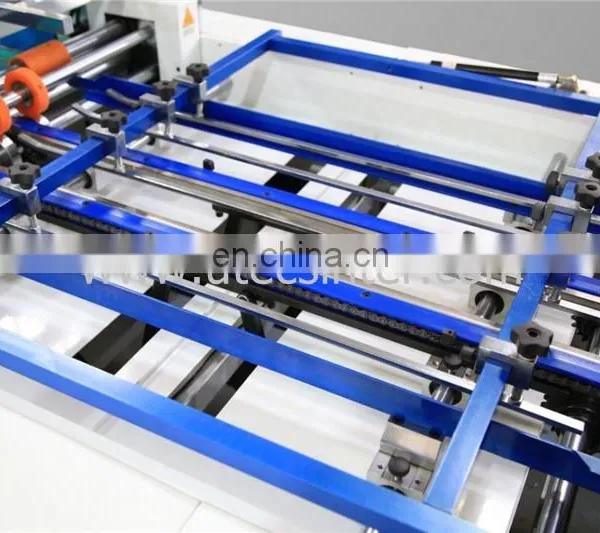

Paper Transmission Correcting Rail:

Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.

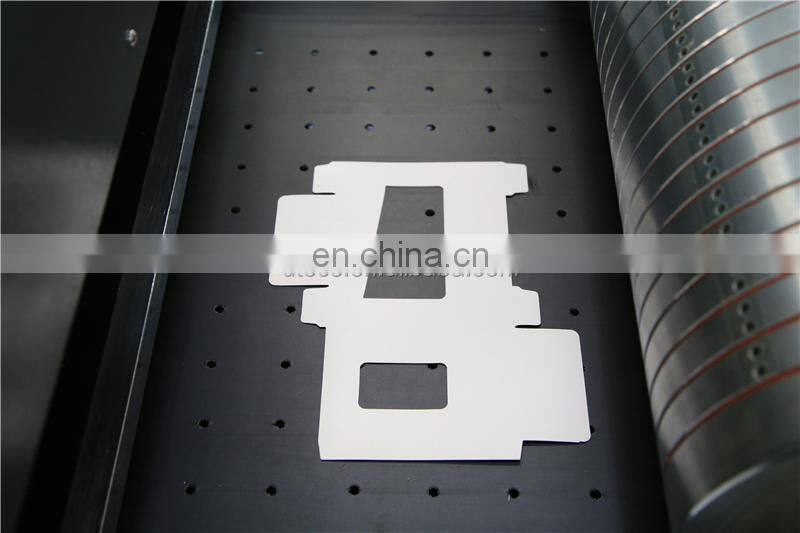

Vacuum Conveyor:

Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting.It runs steadily at high speed and has high precision.

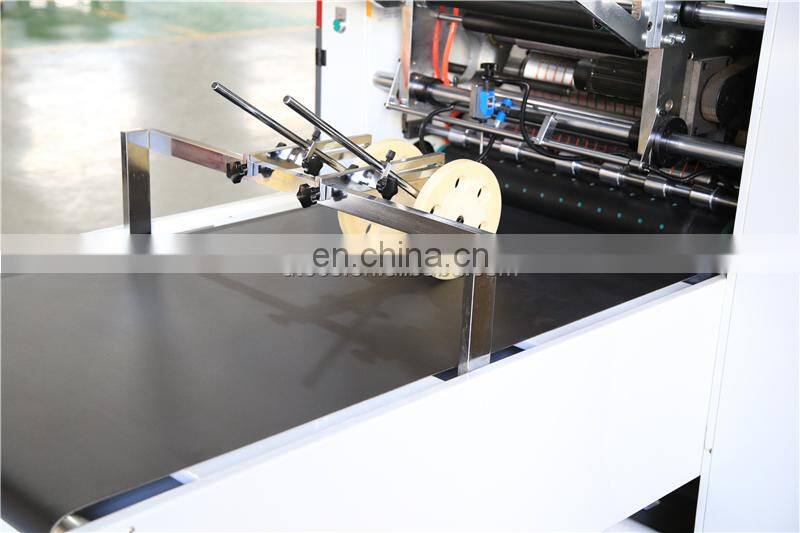

Paper Stacking Section

Single stepper motor controls the operation of paper-collecting belt. Paper-folding distance can be adjusted wholly or segmentally and run at multi-speed.

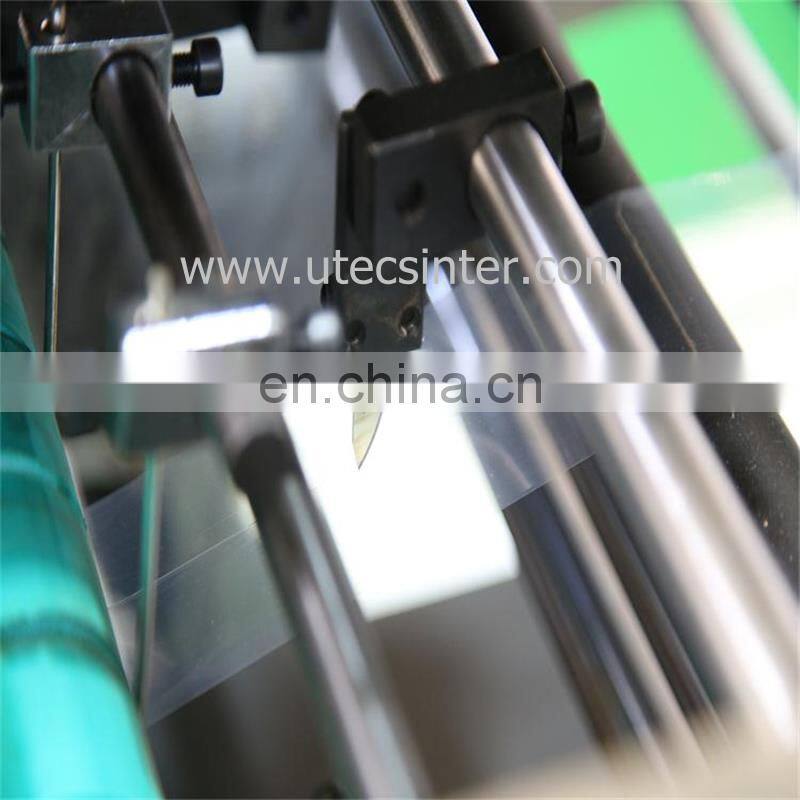

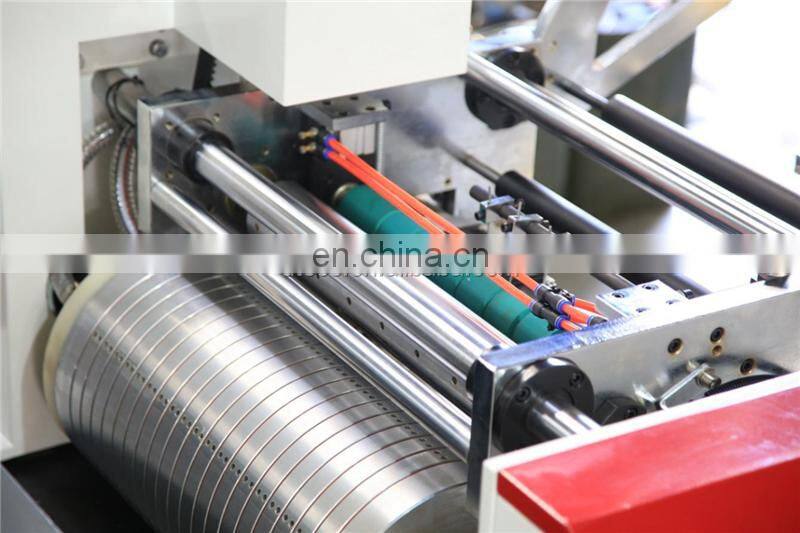

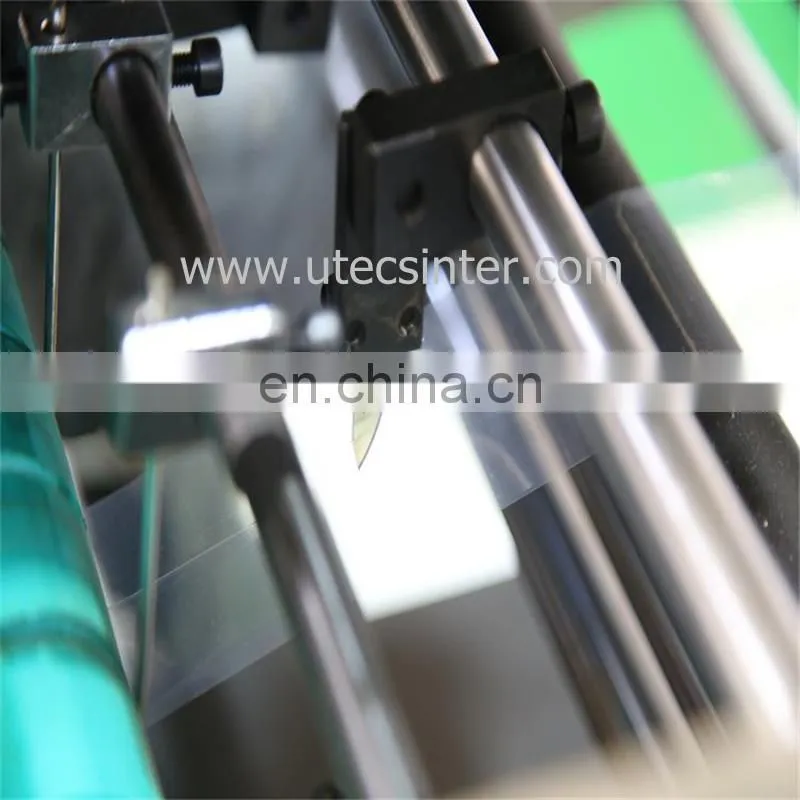

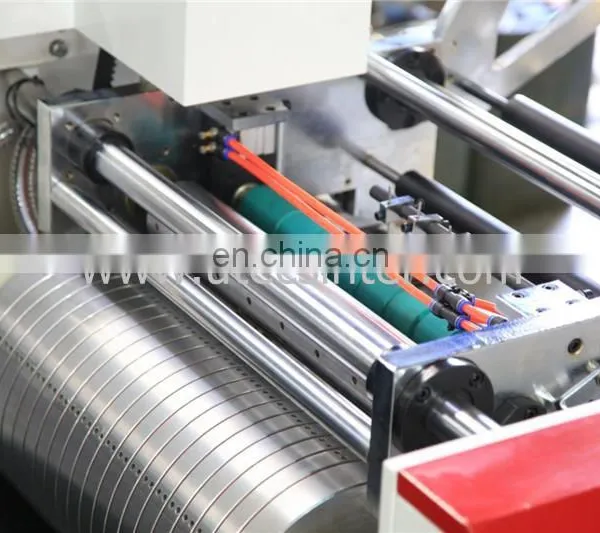

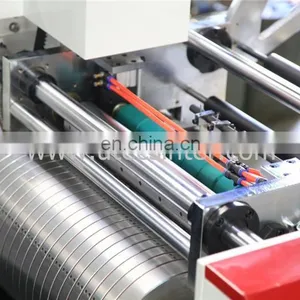

Rotary Film Cutting and Sucking Unit

Film cutting hob is a local sectional design. Compared with traditional whole section cutting, it has lower noise, less vibration, more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.

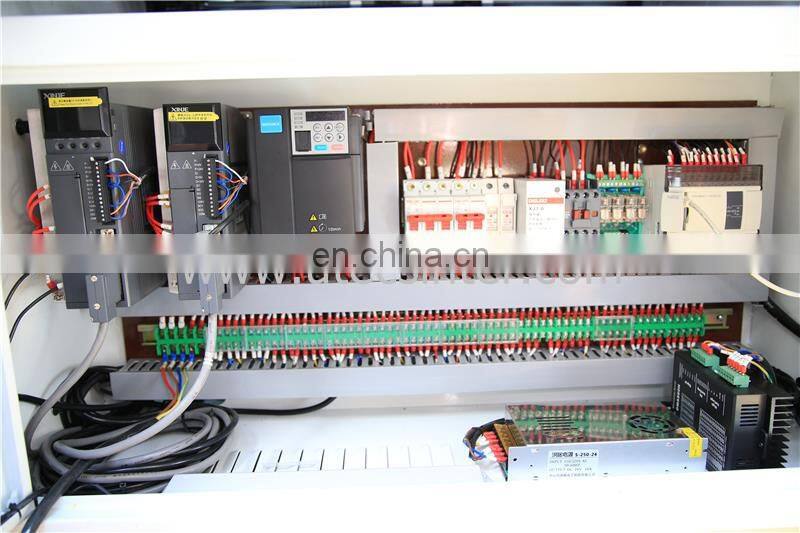

 Reliable Electricals

Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high.

Additional Parts Available to be Added:

1.Paper towel box film opening device can be installed to open or cut off the local film.

2.A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same.
