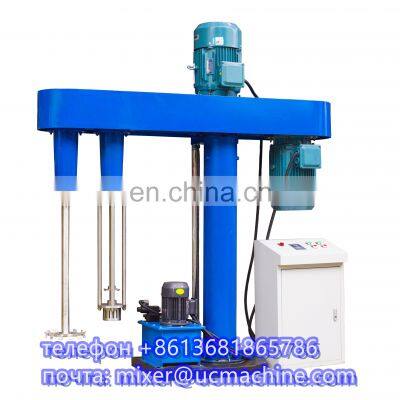

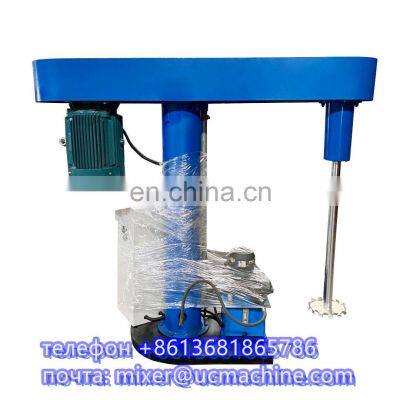

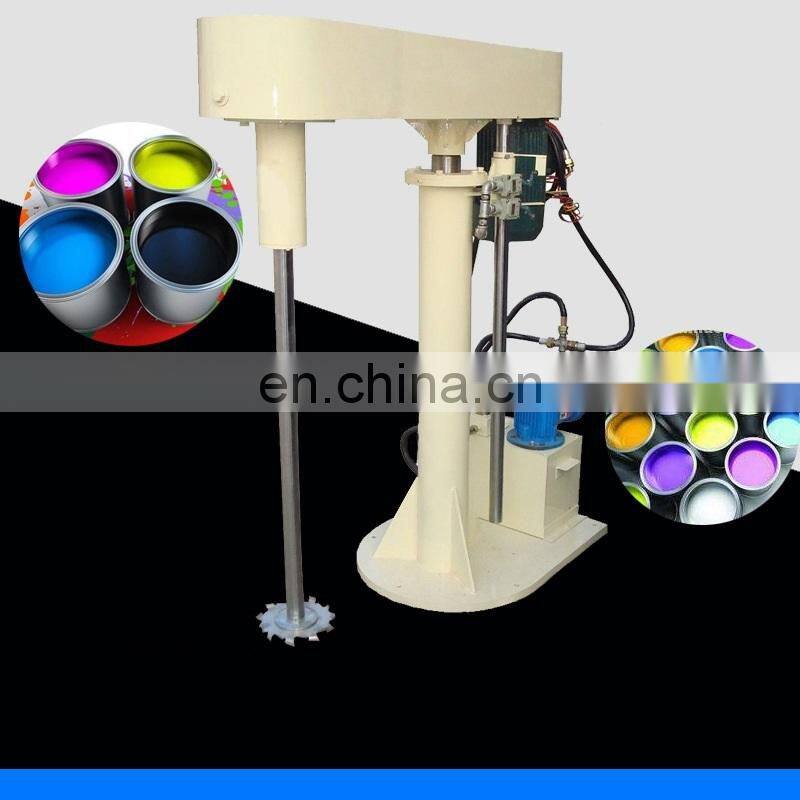

High speed elevating paint dispersion mixer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

high speed disperser

^{High Speed Disperser , also known as agitator, it is a high speed equipment for mixing liquid and solids to dissolve, disperse and homogenize.The medium speed is stirred and dissolved, and the high speed is distributed evenly.Material under the action of high-speed rotating blade, sharp turn hard in the container, and touch attack and shear blade, the aggregate crushing to quickly spread, homogeneous mixture, accelerate the dissolution.}

^{Material Viscosity: ≤50,000 cps
Production Capacity: 50-10,000L
Applied Materials: Suitable for many kind of liquid chemicals emulsion paint, industrial paint, ink and colorants, electrics battery pastes, etc.
Application Fields: Suitable for dispersing, mixing materials in industries such as biology, pharmacy, food, paint, ink, adhesives, pigment, fertilizer, etc.

- Stainless steel solid dispersion shaft
- Frequency inverter speed adjustable
- Safety hydraulic lifting system}

Details Images

working principle

Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

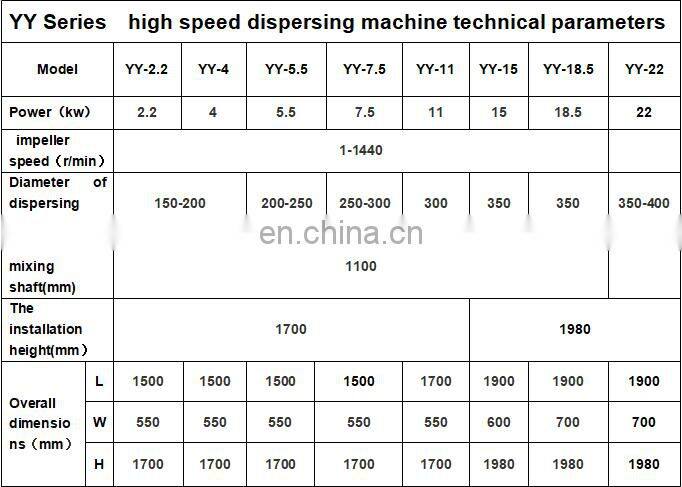

Product Paramenters

Products Feature

Drive Head
A steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The drive head is of hinged type construction which can be opened for maintenance.

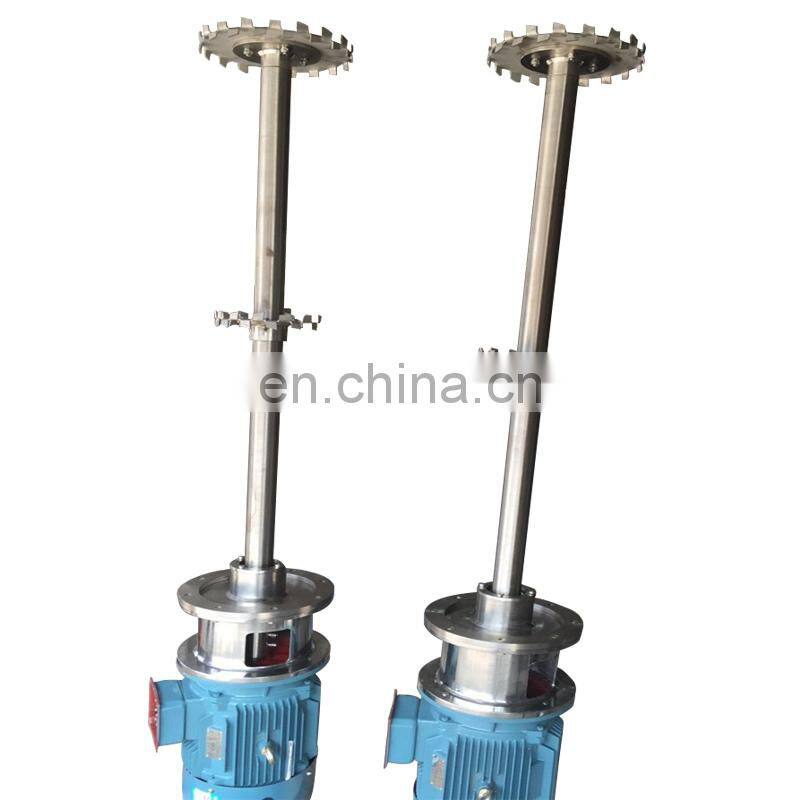

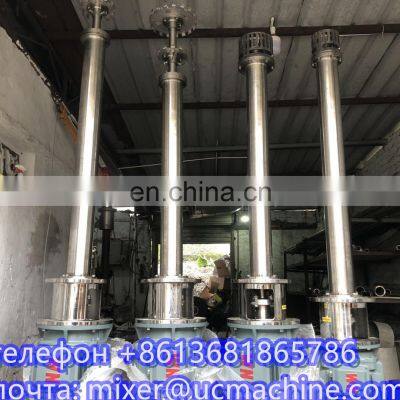

Main Shaft & Dispersing Disc
A SS 304 shaft duly machined and balanced is provided with a cowless disperser blade of special design for quick and efficient dispersion. The dispersers blade is made from special steel to withstand high wear and tear. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing.
Lifting & Lowering
The entire drive head and shaft is mounted on pneumatic lifting system which can be lifted and lowered to clear the height of the vessel.
Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 380 V / 50 Cycles / 3 Phase RPM 1500
Speed Inverter
An AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible
Electric Control Panel (Non-Ex proof)
A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.
Electric Control Panel (Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice. The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Cover for The Tank
The cover is attached with the shafts and lifted up and down together by hydraulic system
Vessel Locking Device (Optional)
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Vessel (Optional)
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.
1.Very high capacity.
2.Very high-degree vacuum and high pressure.
3.Frequency control for the mixing speed.
4.Easy to handle and control.
5.Sealed very well, which is very good for the quality of paint.
6.Stable performance and high efficiency.
7.Corrosion resisting, non-pollution,lower noise,long service life.

Product Application

Widely used in mixing,dispersing and dissolving liquid and solid including paint,pigment,ink,pesticide,dye,resin,food etc.
