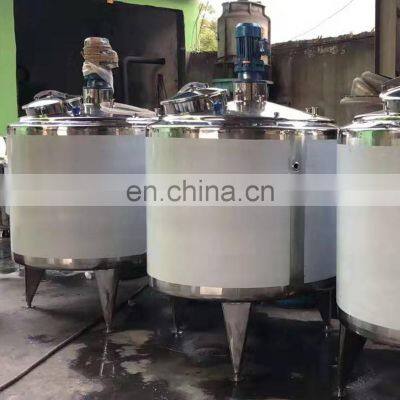

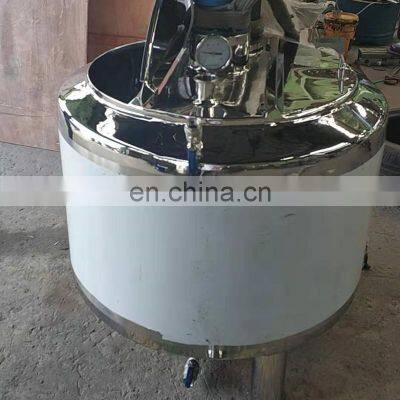

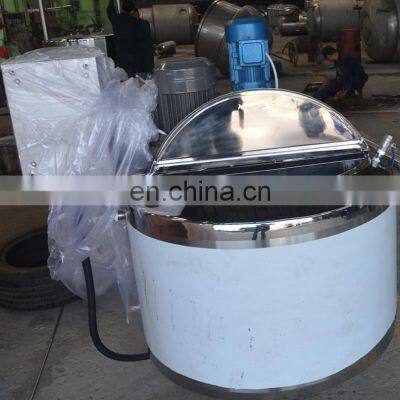

Juice Mixing Tank Batching Tank Juice Storage Tank
Specifications:
- Steam / hot water heating, can be cooled by tap water;
- Stainless steel jacket;
- Insulation layer to effectively maintain temperature;
- Various agitators to suit different applications;
- Mixing capacity from 5,00 Liter to 10,000 Liter, or 50 Gallon to 1,000 Gallon and other customized volumes;
- Mixing speed: 36 rpm ~ 750 rpm, variable;
Product Features:
- Made of stainless steel, suitable for chemical, pharmaceutical, food and beverage industries;
- Designed with jacket, allowed for hot water or steam heating, and tap water cooling;
- Temperature gauge: 0 ~ 150 ℃;
- Equipped with glass level meter;
- Connector to CIP system available.
Structure & Others:
- Single, Double and triple wall construction all available.
- The two walls make up the jacket which allowed hot water and cooling water pass through.
- Conical bottom, easy to discharge.
- Sealed top, sanitary and prevent dirt in air fly in the tank effectively.
- Stainless steel 304.
- Motor capacities available: 1.1KW and other capacities meeting customers' demand.
- Agitator speed: 36 rpm & others.
Technical Parameter:
|
Volume (L) |
Dimension (D*H ) (mm) |
Total Height (mm) |
Diameter of Inlet & Outlet |
Insulation (mm) |
|
500 |
840 × 1000 |
2250 |
38 |
60 |
|
600 |
920 × 1000 |
2300 |
38 |
60 |
|
700 |
990 × 1000 |
2300 |
38 |
60 |
|
800 |
950 × 1220 |
2500 |
38 |
60 |
|
900 |
1010 × 1220 |
2500 |
38 |
60 |
|
1000 |
1060 × 1220 |
2550 |
51 |
60 |
|
1500 |
1160 × 1500 |
2850 |
51 |
60 |
|
2000 |
1340 × 1500 |
2900 |
51 |
60 |
Note: For other customized tanks, please feel free to contact WhatsApp/Cell: +86 138 1711 5848.
|
Our Company Name |
Shanghai Youcan Beverage Machinery Co., Ltd |
|
Our Industrial Experience |
More than twenty years. |
|
Machines We Manufacture & Export |
Sanitary stainless-steel made tanks, homogenizers, jacketed kettles, pasteurizers, tubular UHT sterilizers, CIP systems, bottle blowing machines, etc. |
|
Production Lines We Supply |
Mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream, etc. |
|
Our Clients |
Beverage, Brewing, Dairy Farm, Dairy Processing, Food, Personal Care, Pharmaceutical industries, etc. |
|
Our Expertise |
1. With our fully-experienced research and development team, we are capable of solving any technique problems concerning your production and meet all your whole-line and machinery demands.
2. With two-decade experience in beverage machinery, we are confident to supply all machines meeting your unique requirements. |
|
Ports Our Machines Delivered |
Shanghai, Ningbo, Guangzhou, and other China main ports, and all other international destinations. |
