1. Brief Introduction:
The Thermal Oil Heater, with stable performance and reliable quality, is examined and approved by the State Technical Supervision Bureau, and is tested by Yantai City.

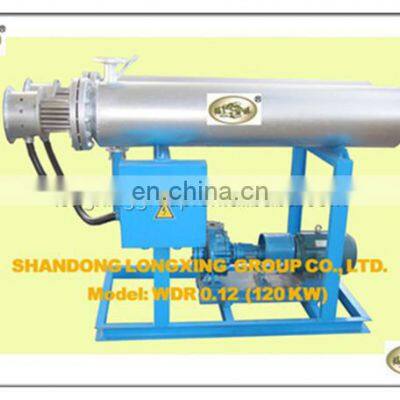

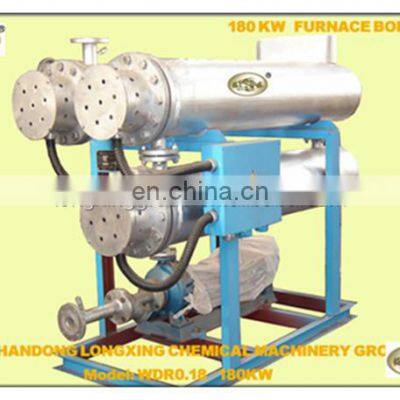

It is an efficient heating equipment, which uses electricity as heat source and heat transfer oil as heat carrier, passing thermal energy to the heat users through the forced circulation of the hot oil pump, and returns to the Heater for reheating and recirculation.
2. Features:
(1) It runs at a lower pressure and get a higher operating temperature.
(2) It can get the stable heating and precise temperature.
(3) Thermal Oil Heater has complete operational control and security monitoring devices.
(4) Thermal oil furnace helps to save electricity, oil and water, and can recover investment in 3 to 6 months.
3.Technical Parameters:
Type Specification |
WDR 0.036 |
WDR 0.06 |
WDR 0.12 |
WDR 0.18 |
WDR 0.24 |
WDR 0.30 |
WDR 0.36 |
||
Heating Power (kw) |
36 |
60 |
120 |
180 |
240 |
300 |
360 |
||
Heat Output (×10³Kj/h) |
129 |
216 |
432 |
648 |
864 |
1080 |
1296 |
||
Highest Operation Temperature |
300 |
||||||||
Temperature Control Accuracy |
±5 |
||||||||
Thermal Efficiency (%) |
>90 |
||||||||
Design Pressure (Mpa) |
0.7 |
||||||||
Oil Cycle (m³ / h) |
10 |
18 |
18 |
18 |
30 |
30 |
45 |
||
Motor Power (Kw) |
2.2 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
||
Connecting Pipe (DN) (mm) |
Output |
32 |
50 |
50 |
50 |
65 |
65 |
80 |
|
Circuit |
32 |
50 |
50 |
50 |
65 |
65 |
80 |
||
Dimensions(mm) |
1785× 560× 1420 |
2000× 550× 1440 |
2000× 800 ×1440 |
200× 800× 1760 |
2000× 900× 1910 |
2000× 940× 2145 |
2000× 940× 2328 |
||
Weight(Kg) |
375 |
495 |
662 |
840 |
1018 |
1350 |
1705 |
||
Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.
² Installation and after-sale Service
We provide complete installation &operation manual for all machines supplied by us.
- Calling our technician to get advice
- Sending email to our technician
- Live chat with our technician on skype,trade manager,MSN,whats app,Wechat
- Inviting our technician to your factory
² Warranty
All the machines made by QUANTA MACHINERY are warranted for one year .
-- By T/T.(40% by T/T for an order, the balance to be paid before delivery.
We could package the product according to the customer's demand.
| Packaging Detail: | wooden carton(can be customized according to user's requests and specifications) |
| Delivery Detail: | With 30 days on receiving deposite payment |
