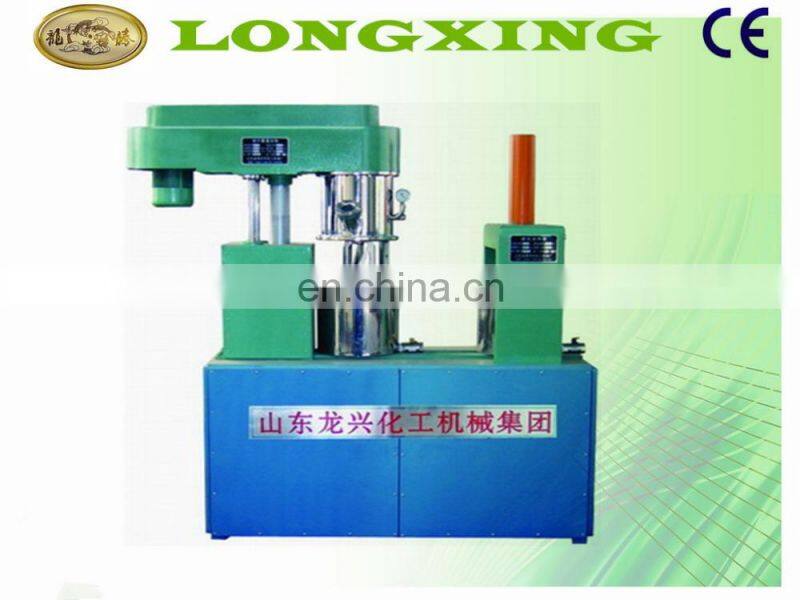

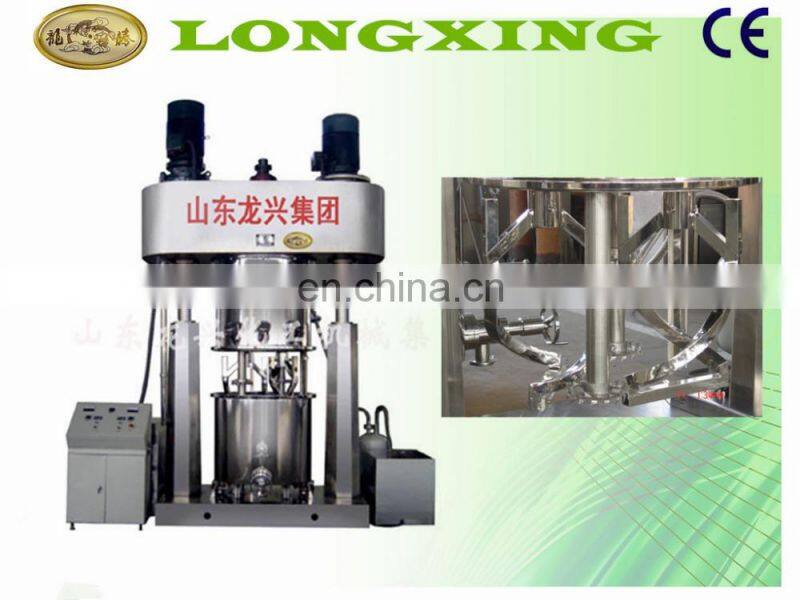

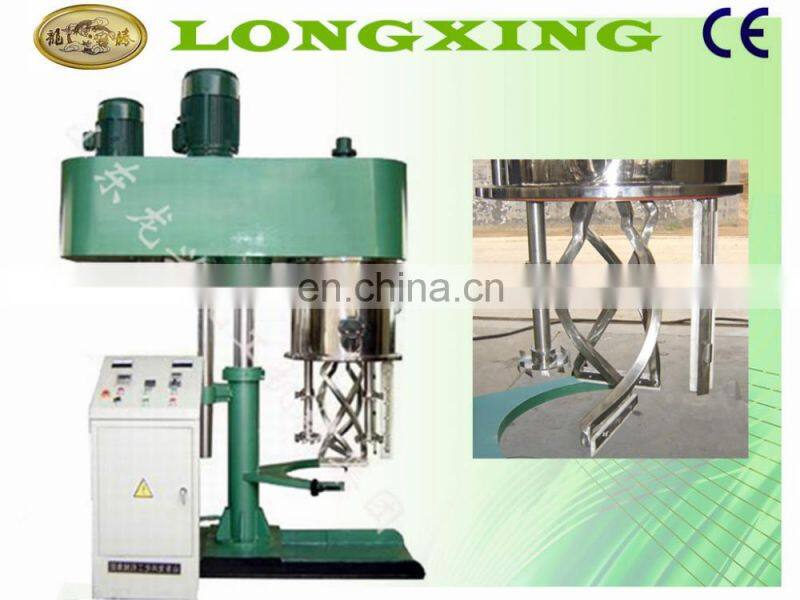

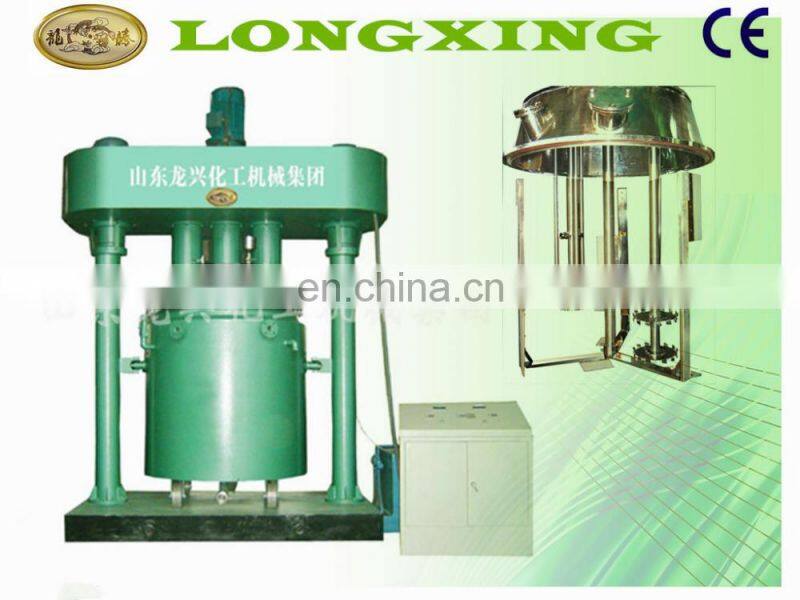

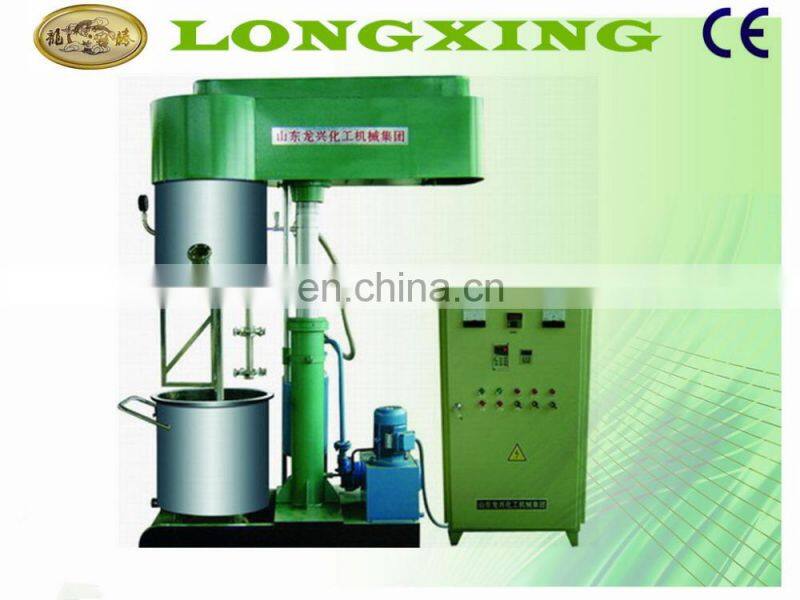

50 L Planetary Mixer
- T/T Credit Card
You May Like
-
Manufacture Factory Price 1000L Customized Planetary Mixer Chemical Machinery Equipment
-
Manufacture Factory Price Laboratory Double Planetary Disperser Chemical Machinery Equipment
-
Manufacture Factory Price Planetary Disperser for Battery Paste Chemical Machinery Equipment
-
Manufacture Factory Price Lithium Battery Double Planetary Mixer Chemical Machinery Equipment
-
Longxing Factory Price Planetary Disperser Mixer Making Machine Silicone Sealant Production Line
-
Manufacture Factory Price High Viscosity Double Planetary Mixing Machine Chemical Machinery Equipment
Product Description
1.Descriptions:

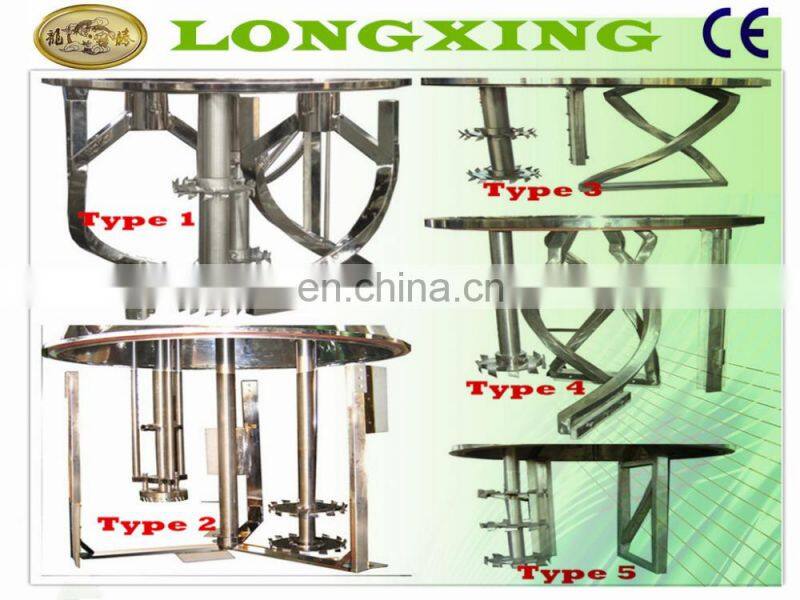

The machine has the high-speed, low speed, mobile scraper,which can be used for mixing, cutting, dissolving, scraping the wall. A scraper on the planet carrier rotates and constantly scrapes the barrel wall.Because the barrel wall is finished by the large vertical lathe and is polished by the large-scale automatic polishing machine,the rotation of the scraper will completely scrape the material in the barrel wall,which will improving the mixing effetiency. The unique temperature detection device in the transmission shaft ensures that the material temperature error is less than +-1 Degree Centrigrade.
Type | 5L | 15L | 30L | 50L | 100L | 300L | 500L | 1000L | |
Product Name | Double Planetary Power Mixer | Double Planetary Dual Drive Mixer | |||||||
Bucket Size (mm) | Ø280× 180 | Ø280× 325 | Ø400× 325 | Ø480× 365 | Ø550× 550 | Ø850× 650 | Ø960× 810 | Ø1160× 1100 | |
Revolution Motor(Kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
Revolution Speed (frequency control) r/min | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Rotation Speed (frequency control) r / min | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
Dispersing Motor(Kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
Vacuum( Mpa) | ≤0.098 | ||||||||
Lifting Stroke (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
Weight (kg) | 500 | 800 | 1000 | 2000 | 2300 | 2700 | 3500 | 5000 | |
Dimensions (mm) | L | 1500 | 1700 | 1700 | 1700 | 1700 | 2500 | 2700 | 2700 |
W | 900 | 900 | 900 | 900 | 1100 | 1200 | 1500 | 1800 | |
H | 1700 | 2100 | 2300 | 2300 | 2300 | 2700 | 2900 | 3100
| |
(2) Due to the rapid upgrading of technology, the right technical parameters are subject to the real product.
(3) If you have some problems,please call us,then our professional sales engineers will help you.
Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.

Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case . If your goods have one container that the goods can without plywood case packing ,just wrap the film to load .
Q2. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment for customized machine. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the drawing ?
A: Yes, we can produced as your technical drawings. If you haven't the drawing , just told me your need and our engineer will make the drawing for your reference .
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
