Help Center36KW Thermal Oil Furnace
Related Products
-
Manufacture Factory Price Horizontal Thermal Oil Heater(coal Fired) Chemical Machinery EquipmentNegotiableMOQ: 1 -
Manufacture Factory Price China-Made Thermal Oil Heater Chemical Machinery EquipmentNegotiableMOQ: 1
-
Manufacture Factory Price 36KW Thermal Oil Heater Chemical Machinery EquipmentNegotiableMOQ: 1
-
Manufacture Factory Price China-Made Hot Sale Electric HeatingThermal Oil Heater Chemical Machinery EquipmentNegotiableMOQ: 1
-
Manufacture Factory Price Electric Heating Thermal Oil Heater Chemical Machinery EquipmentNegotiableMOQ: 1
1. Brief Introduction:
The Thermal Oil Heater, with stable performance and reliable quality, is examined and approved by the State Technical Supervision Bureau, and is tested by Yantai City.

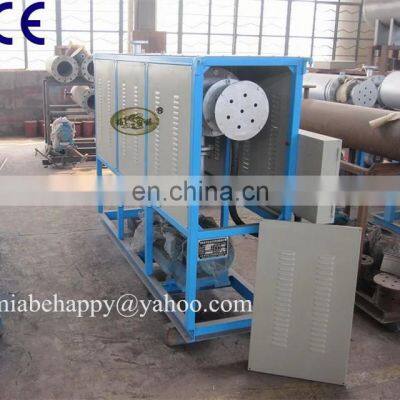

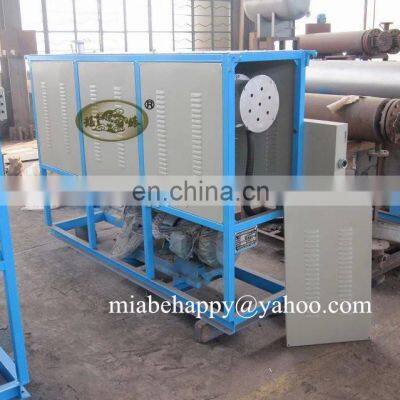

It is an efficient heating equipment, which uses electricity as heat source and heat transfer oil as heat carrier, passing thermal energy to the heat users through the forced circulation of the hot oil pump, and returns to the Heater for reheating and recirculation.
2. Features:
(1) It runs at a lower pressure and get a higher operating temperature.
(2) It can get the stable heating and precise temperature.
(3) Thermal Oil Heater has complete operational control and security monitoring devices.
(4) Thermal oil furnace helps to save electricity, oil and water, and can recover investment in 3 to 6 months.
3.Technical Parameters:
Type Specification |
WDR 0.036 |
WDR 0.06 |
WDR 0.12 |
WDR 0.18 |
WDR 0.24 |
WDR 0.30 |
WDR 0.36 |
||
Heating Power (kw) |
36 |
60 |
120 |
180 |
240 |
300 |
360 |
||
Heat Output (×10³Kj/h) |
129 |
216 |
432 |
648 |
864 |
1080 |
1296 |
||
Highest Operation Temperature |
300 |
||||||||
Temperature Control Accuracy |
±5 |
||||||||
Thermal Efficiency (%) |
>90 |
||||||||
Design Pressure (Mpa) |
0.7 |
||||||||
Oil Cycle (m³ / h) |
10 |
18 |
18 |
18 |
30 |
30 |
45 |
||
Motor Power (Kw) |
2.2 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
||
Connecting Pipe (DN) (mm) |
Output |
32 |
50 |
50 |
50 |
65 |
65 |
80 |
|
Circuit |
32 |
50 |
50 |
50 |
65 |
65 |
80 |
||
Dimensions(mm) |
1785× 560× 1420 |
2000× 550× 1440 |
2000× 800 ×1440 |
200× 800× 1760 |
2000× 900× 1910 |
2000× 940× 2145 |
2000× 940× 2328 |
||
Weight(Kg) |
375 |
495 |
662 |
840 |
1018 |
1350 |
1705 |
||
