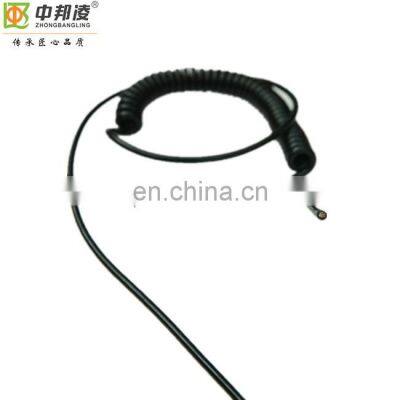

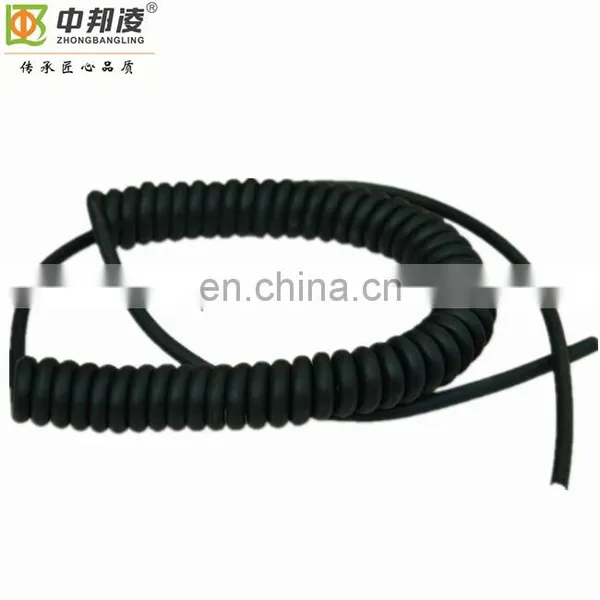

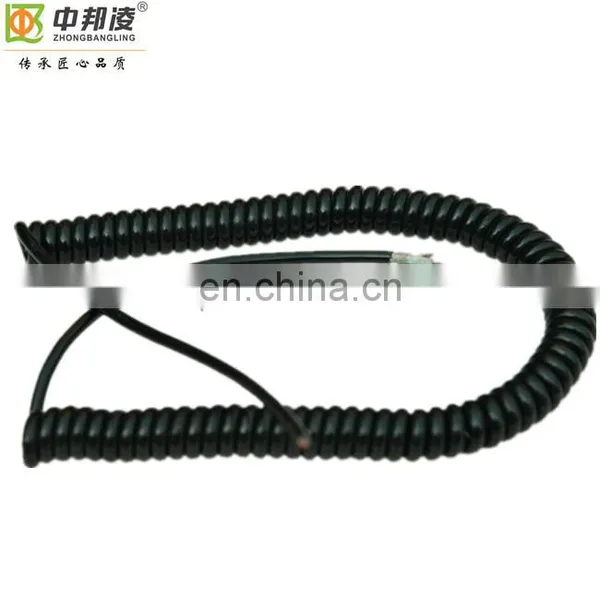

The Black Electrical Spring Wire/Coil Spring Cable

coil cable,coil-cable ,electric coil cables

 in the application majority domains, is the most superior solution. the chemistry, the machinery, the heat and optics (different color) the performance is outstanding. Very good elastic force. technical specification:

applicable scope: Uses in fixed alternating voltage 300/750V or below direct current voltage 6V-1000V, needs the assembly electric circuit which back and forth reciprocated to compile the wiring, like telephone spiral line, computer spring electric cable, electronic installation spring line plug-in unit and automobile spiral line, trailer spring electric cable, spring ties.

Product characteristic: Has the good flexibility and the elasticity (elongation length may reach original spring length 3.5-4 times) has the good resistance to cold, the flame retardance the oil resistance and the resistance to wear. May produce each kind of screw spring line according to situation various requirements

Conductor structure: The use single laid either many copper wires (or tin-plate copper wire). Insulation material: May use the polyvinyl-chloride, the polyethylene, the polypropylene or calls to unite the polyethylene and the fluorine models the branch, satisfies the different situation the request.

Protective covering material: Generally uses the polyurethane elastic material.

Operating temperature: According to customer request, cold resistant - 65 degrees; Heat resistant 80 degree, 105 degree, 125 degrees.

Sphere of production: Standard section: 0.12~4 square meters (special specification may act according to customer request production).

Electricity diameter core number: 1~37 cores (special specification may act according to customer request production).

Spring length: Willfully.
