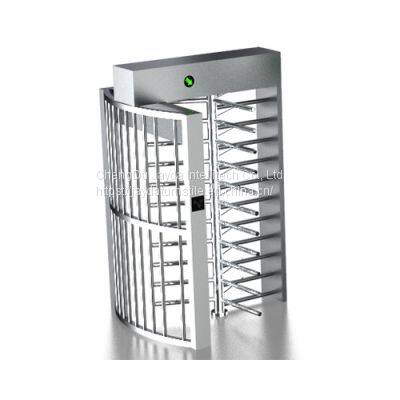

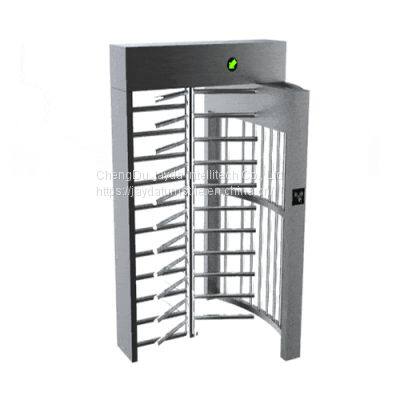

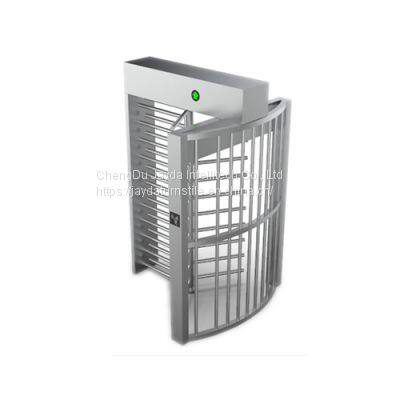

Biometric full height electric turnstile/ full height singel lane turnstile/ full-height biometric turnstile
- 1000 Piece / Pieces per Month
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
- Smart car park access barrie/ automatic rising arm barrier/ electric rising arm barrier
- Vehicle access control barrier system/ smart barrier gate/ automatic vehicle barrier
- Automatic vehicle barrier/automatic road barrier/ automatic rising traffic barrier
- Automatic car park barrier/ automatic parking barrier/ automatic arm barrier gate
- Automatic car park barrier/ automatic parking barrier/ automatic arm barrier gate
- Motorized waist-high turnstile/ tripod turnstile gate/ security tripod turnstile gate
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDFHT-6 |
Product Description
Biometric full height electric turnstile, full height singel lane turnstile, full-height biometric turnstile with 2-year warranty from China full height turnstile supplier
Biometric full height electric turnstile JDFHT-6 series are made of high quality low maintainance stainless steel with morden-look apperance. They are of high compatibility for perfectly integrating various recognition systems, and providing single directional or bidirectional pedestrian access control for different applications. In addition, biometric full height electric turnstile JDFHT-6 series will close the passage immediately after passing or after an adjustable hold-open time, and the passing time can be programmed. Upon power failure or fire system input, the automatic full height turnstile gates automatically releases to provide a clear exit passageway.
Features
Shock absorption and reverse rotation locking capabilities
2. Simplified integration to access control and visitor management systems
3. Single-user, un-manned automatic access control
4. Grant fast and efficient access for authorised people
5. Automatic self-centering prevents over or under travel of rotating section
6 .Low power consumption as well as low noise operation
7. Longer turnstile life, minimal to no maintenance, higher user satisfaction
8. Easily change turnstile passage mode
9. Support automatic reset function
10. Anti-reverse rotation during transit
Applications
Public security departments
Bank vaults
Prisons
Military installations
Educational facilities
Stadiums
Parameters
Housing Material | 1.5mm~2.0mm #304 stainless sheet |
Dimension | 1500 x 1350 x 2300mm (JDFHT-6 & JDFHT-6A) 1600 x 1350 x 2300mm (JDFHT-6B) 1630 x 1350 x 2300mm (JDFHT-6C) |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Channel Width | 600mm |
IP Rate | IP45 |
Pass Speed | 30 ~35 persons per minute |
Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication interface | RS485 |
Gate open when power failure | Yes |
Open Time | 0.2 second |
Life Cycle | 5 million times |
Working Temperature | -30°C~+70°C, Relative Humidity: ≤90%, no condensation |
Working Environments | Indoor, outdoor (with shelter) |
Biometric Full Height Electric Turnstile Design
Biometric Full Height Electric Turnstile System Diagram
Project Cases for Biometric Full Height Electric Turnstile
What are biometric full height electric turnstiles?
Supplied with mechanical rotating barriers, biometric full height electric turnstiles are security access control pedestrian turnstiles that span from floor to ceiling, offering maximum security because it is impossible for an unauthorized entrant to crawl under or climb over them. Biometric full height electric turnstiles can be used for one-way or bi-directional passage depending on control requirements. When multiple lanes of entry and exit traffic are required, full height motorized turnstiles are also available–they combine two full height turnstiles into one seamless package. In addition, they provide comfortable access for handicapped entrants while still offering full floor-to-ceiling security and access control.
Biometric full height electric turnstiles variations:
Biometric full height electric turnstiles are made from heavy-gauge steel, with galvanized, powder coated, and stainless steel finishes optional. We also customizes full height gates with custom passage widths, panic bars
Biometric full height electric turnstiles applications:
Biometric full height electric turnstiles are crowd control turnstiles that provide high level security and access control for handicap accessible entrances and exits. They are used to secure entrances at industrial plants, company premises and data centers. Furthermore, they are also widely used at construction sites as secure entrances through perimeter fences
What are the advantages and disadvantages of biometric full height electric turnstiles?
Biometric full height electric turnstiles provide benefits such as:
Compatibility with a guard station
Access specified through the managing party
Design allowing for unmanned or remote control
Single direction/entry and exit turnstile designs
Enhances perimeter and fence line control
Can allow for attendance monitoring
Such security turnstiles are frequently used for military installations, aquariums, amusement parks, airports, ports, stadiums, and any applications where require a secure inflow of heavy foot traffic. However, the disadvantages of the double lane full-height motorised turnstiles are the huge size and industrial appearance.
Can biometric full height electric turnstile be integrated with 3rd party access control systems ?
Off course, biometric full height electric turnstiles are comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Biometric full height electric turnstiles instantly automatically drop off their central arm for free passage under emergency situations (power outages, fire, etc)
Can biometric full height electric turnstiles be used indoor and outdoor?
Biometric full height electric turnstiles are made for indoor or outdoor situations. For all Outdoor applications, we use 304 stainless steel to prevent corrosion.
