Single Lane Full Height Pedestrian Turnstile/ Full Height Turnstile Gate/ Outdoor Full Height Turnstile

• Single lane full height pedestrian turnstile, full height turnstile gate, outdoor full height turnstile operates in a smooth, silent, fast and reliable way


•


• Single lane full height pedestrian turnstile JDFHT-8 is a rugged, high-reliability crowd control solution for outdoor ind indoor locations, and designed to control pedestrians entering or exiting secured areas where both the high security access control and pedestrian traffic management are vital, and widely used in public security departments, bank vaults, prisons and other key security scenarios. Single lane full height pedestrian turnstile JDFHT-8 automatically relases the arm and allow the pedestrian to push before passing through the security turnstile upon the receipt of valid signal from access control system or manual switch

Features

1.Shock absorption and reverse rotation locking capabilities
2. Simplified integration to access control and visitor management systems
3. Single-user, un-manned automatic access control
4. Grant fast and efficient access for authorised people
5. Automatic self-centering prevents over or under travel of rotating section
6 .Low power consumption as well as low noise operation
7. Longer turnstile life, minimal to no maintenance, higher user satisfaction
8. Easily change turnstile passage mode
9. Support automatic reset function
10. Anti-reverse rotation during transit

Applications　

Public security departments
Bank vaults
Prisons
Military installations
Educational facilities
Stadiums

Parameters

Single Lane Full Height Pedestrian Turnstile Design

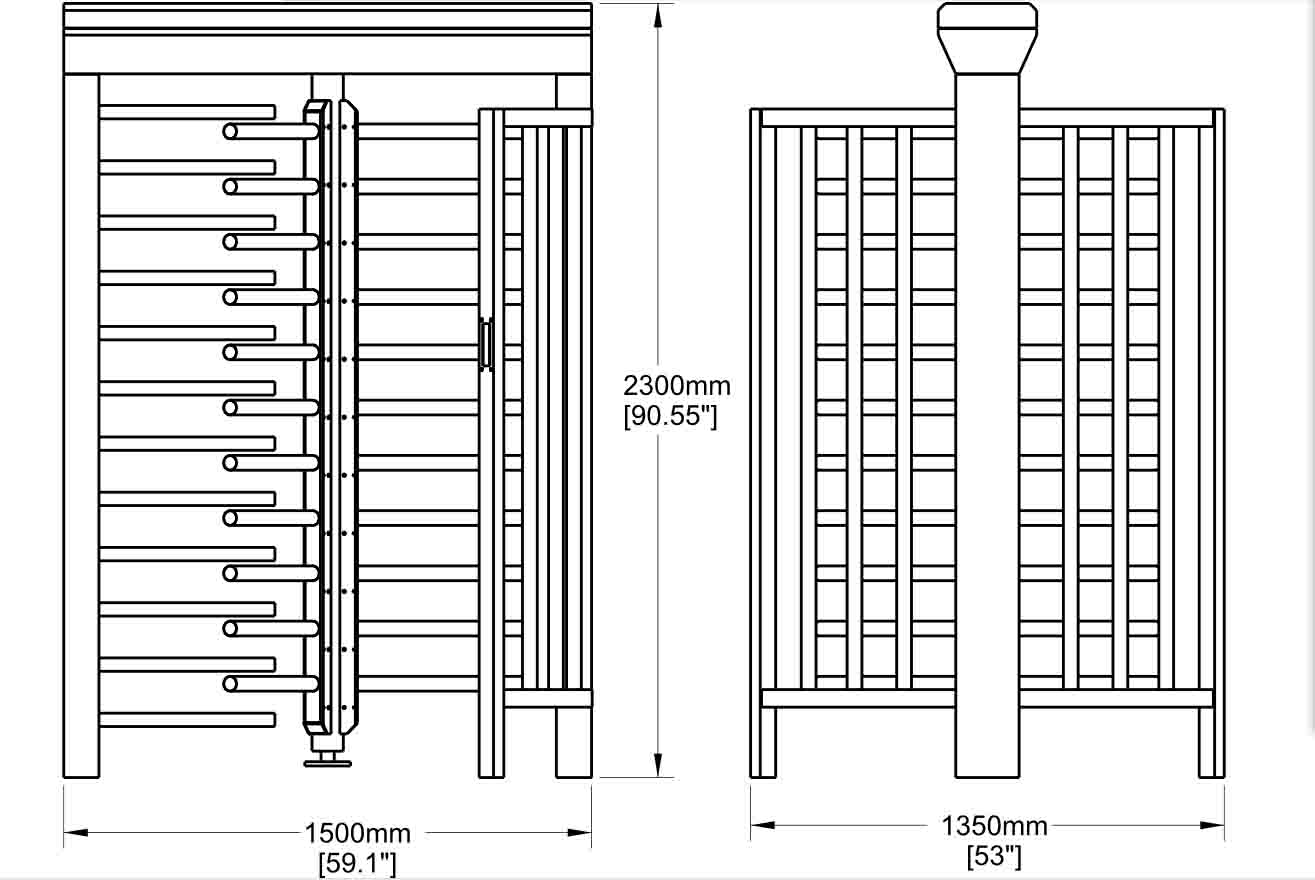

Single Lane Full Height Pedestrian Turnstile Dimension

Single Lane Full Height Pedestrian Turnstile System Diagram

Project Cases for Single Lane Full Height Pedestrian Turnstile

What are single lane full height pedestrian turnstiles?
Supplied with mechanical rotating barriers, single lane full height pedestrian turnstiles are security access control pedestrian turnstiles that span from floor to ceiling, offering maximum security because it is impossible for an unauthorized entrant to crawl under or climb over them. Full height pedestrian turnstiles can be used for one-way or bi-directional passage depending on control requirements. When multiple lanes of entry and exit traffic are required, full height motorized turnstiles are also available–they combine two full height turnstiles into one seamless package.Single lane full height pedestrian turnstiles provide comfortable access for handicapped entrants while still offering full floor-to-ceiling security and access control.

Single lane full height pedestrian turnstile variations:
Single lane full height pedestrian turnstiles are made from heavy-gauge steel, with galvanized, powder coated, and stainless steel finishes optional. We also customizes full height gates with custom passage widths, panic bars

Single lane full height pedestrian turnstile applications:
Single lane full height pedestrian turnstiles are crowd control turnstiles that provide high level security and access control for handicap accessible entrances and exits. They are used to secure entrances at industrial plants, company premises and data centers. Furthermore, they are also widely used at construction sites as secure entrances through perimeter fences

What are the advantages and disadvantages of single lane full height pedestrian turnstile ?
Single lane full height pedestrian turnstiles provide benefits such as:
Compatibility with a guard station
Access specified through the managing party
Design allowing for unmanned or remote control
Single direction/entry and exit turnstile designs
Enhances perimeter and fence line control
Can allow for attendance monitoring

Such security turnstiles are frequently used for military installations, aquariums, amusement parks, airports, ports, stadiums, and any applications where require a secure inflow of heavy foot traffic. However, the disadvantages of the double lane full-height motorised turnstiles are the huge size and industrial appearance.

Can single lane full height pedestrian turnstiles be integrated with 3rd party access control systems ?
Off course,  single lane full height pedestrian turnstiles are comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power  off and in emergency situation?
Single lane full height pedestrian turnstiles instantly automatically drop off their central arm for free passage under emergency situations (power outages, fire, etc)

Can single lane full height pedestrian turnstiles be used indoor and outdoor?
Single lane full height pedestrian turnstiles are made for indoor or outdoor situations. For all Outdoor applications, we use 304 stainless steel to prevent corrosion.
