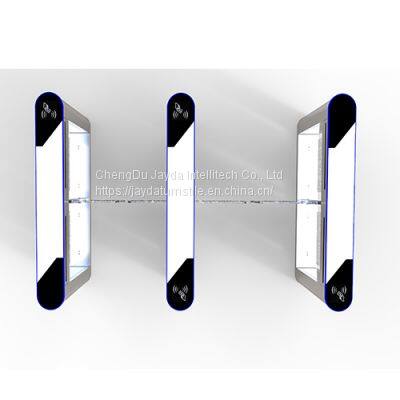

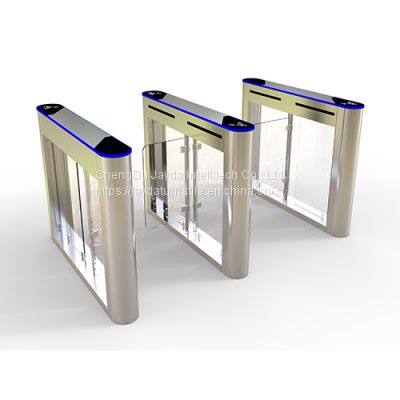

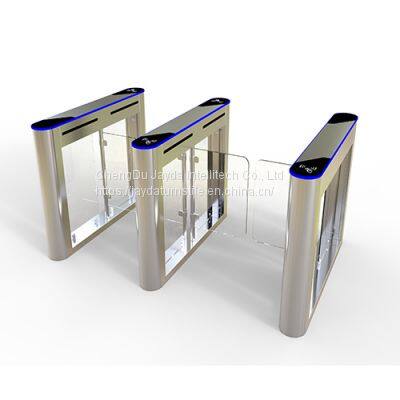

Optical Swing Turnstile/ Automatic Swing Gate Turnstile/ Swing Gate Optical Turnstile

• Elegent design optical swing turnstile, automatic swing gate turnstile, swing gate optical turnstile supports very rapid throughput


•


• Optical swing turnstile JDBZ-25 is controlled by logic sensors and a matrix of detection beams, by which any tailgating attempt, unauthorized entry or revese entry will be detected by the senosor and trigger a sound alarm, and deny illegal access effectively. The rapid throughput, effectivness and reliable operation enables swing optical turnstile JDBZ-25 to be used widely to various applications such as company foyers, data centers, government buildings and fitness centers. In case of power failure or emgergency, the optical turnstile lane will open and release the passage automatically to creat a free passage.

Features

1. Slim cabinet design for a smaller footprint
   2. Detects tailgating and exact position of users
   3. Intelligent drive system and pinpoint control of moving panels
   4. Multiple operational modes including controlled passage, free passage and visitor
   5. Supports very rapid throughput
   6. Superior unauthorized passage and unauthorized presence detection
   7. Standard and handicapped width lanes have same cabinet dimensions
   8. Perfectly suited to any type of architecture
   9. Fault visualization for easy to check on site
   10. Widely used in various indoor and outdoor environments




Applications　
Industrial parks
Commercial buildings
Fitness center
Universities
Public transportation systems
Government facilities

Parameters

Optical Swing Turnstile Design

Optical Swing Turnstile System Diagram

Optical Swing Turnstile Project Cases

What is optical swing turnstile?
Optical swing turnstile, a typical optical turnstile, utilizes the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. Swing barrier optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessible.

How does optical swing turnstile work?
Optical swing turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take swing gate turnstile JDBZ-25 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDBZ-25 fixed on each side of a dual-wing type JDBZ-25. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can optical swing turnstile be integrated with 3rd party access control systems ?
Off course, optical swing turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power  off and in emergency situation?
Optical swing turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can optical swing turnstile be used indoor and outdoor?
Off course, optical swing turnstile is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does optical swing turnstile give access to ADA pedestrians?
Yes, optical swing turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
