MSMA012C1A Panasonic Servo Controller Deviation Counter Clear Input

Huizhou Linchuang Technology Co ., Ltd
MSMA012C1A Panasonic Servo Controller Deviation Counter Clear Input thumbnail-1
MSMA012C1A Panasonic Servo Controller Deviation Counter Clear Input thumbnail-2
MSMA012C1A Panasonic Servo Controller Deviation Counter Clear Input photo-1

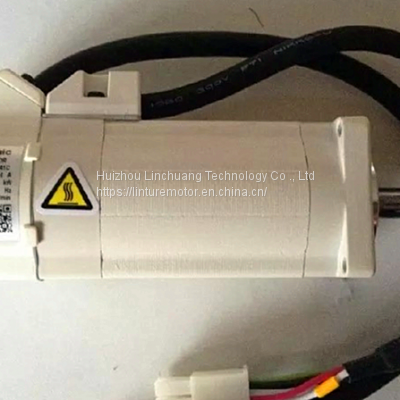

MSMA012C1A Panasonic Servo Controller Deviation Counter Clear Input photo-2
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MSMA012C1A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panasonic
Place of Origin Japan
Model Number MSMA012C1A
Type Servo Motor
Certification CCC, CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Totally Enclosed
Voltage(V) 100V
Output Power 100W
Continuous Current(A) 0.5A
Speed(RPM) 2500R/MIN
Commutation Brushless
Brand:PanasonicModel Number:MSMA012C1A
Country Of Origin:JapanType:Industrial Servo Motor
Delivery Time:2-3daysENCODER:2500p/r
Freq:50/60HzOutput:100V
Input:100VPower:100W
High Light:ac servo motor,electric servo motor


MSMA012C1A 3.7V 0.03KW 3000R/M Panasonic Industrial Servo Motor 1.0A



Detailed Product Description


BrandPanasonic
Country of originJapan
model numberMSMA012C1A




Quick Detail



  • Encoder: 3000R/M

  • Input: 3.7V

  • Output: 0.03KW


SPECIFICATION


EUA Stock No762467Brand/ManufacturerPanasonicManufacturer Part NumberMSD011P1E
Product typeServo DriverPhase1Control functionServo Control
Supply voltage100 VPower rating100 W



Specifications:


ItemSpecifications
Input power100 VMain circuitSingle phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
Control circuitSingle phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
200 VMain circuitA-frame to
D-frame		Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
E-frame,
F-frame		Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
Control
circuit		A-frame to
D-frame		Single phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
E-frame,
F-frame		Single phase　200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
EnvironmenttemperatureAmbient temperature: 0 ˚C to 55 ˚C (free from freezing)
Storage temperature: –20 ˚C to 65 ˚C
(Max.temperature guarantee: 80 ˚C for 72 hours free from condensation*1)
humidityBoth operating and storage : 20 % to 85 %RH (free from condensation*1)
AltitudeLower than 1000 m
Vibration5.88 m/s2 or less, 10 Hz to 60 Hz
Control methodIGBT PWM Sinusoidal wave drive
Encoder feedback23-bit (8388608 resolution) absolute encoder, 7-wire serial
* When using the product as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Instead, set the parameter Pr0.15 to [1] (default).
External scale feedbackA/B phase, initialization signal defferential input.
Manufacturers that support serial communication scale:
Fagor Automation S.Coop., Magnescale Co., Ltd., Mitutoyo Corporation Nidec Sankyo Corporation, Renishaw plc
Parallel I/O connectorControl signalInputGeneral purpose 10 inputs
The function of general-purpose input is selected by parameters.
OutputGeneral purpose 6 outputs
The function of general-purpose output is selected by parameters.
Analog signalInput3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
Output2 outputs (Analog monitor: 2 output)
Pulse signalInput2 inputs (Photo-coupler input, Line receiver input)
Both open collector and line driver interface can be connected.
High speed line driver interface can be connected.
Output4 outputs ( Line driver: 3 output, open collector: 1 output)
Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal.
Communication
function		USBUSB interface to connect to computers for parameter setting or status monitoring.
RS2321:1 communication
RS4851: n communication (max 31)
Safety functionA dedicated connector is provided for Functional Safety.
Front panel(1) 5 keys
(2) LED (6-digit)
RegenerationA-frame, B,-frame: no built-in regenerative resistor (external resistor only)
C-frame to F-frame: Built-in regenerative resistor (external resistor is also enabled.)
Dynamic brakeA-frame to F-frame: Built-in
Control modeSwitching among the following 7 mode is enabled,
(1) Position control
(2) Speed control
(3) Toque control
(4) Position/Speed control
(5) Position/Torque control
(6) Speed/Torque control
(7) Full-closed control



Product Tags: motor , controller , moudel
