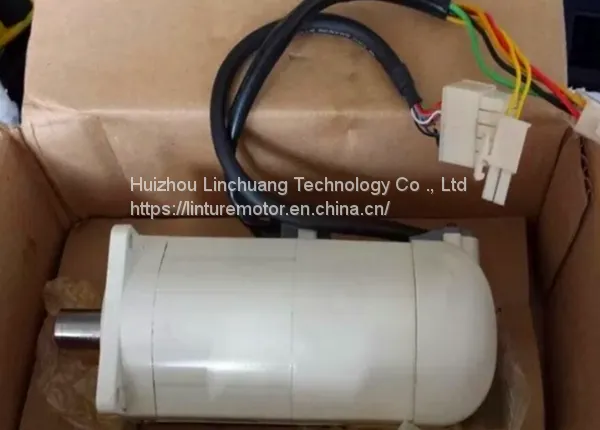

MSM042A1B PANASONIC AC Servo Motor Have Termination Style Wire Leads
US$ 1 - 1000000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MSM04A1B
Payment & Shipping
Payment Methods:
Port of Shipment:
Bao'an international airport
Delivery Detail:
5 days
Related Products
-
MSMA082A1H Panasonic Servo Controller Inertia Ratio Switch InputUS$ 1 - 1000000MOQ: 1 Unit -
MSMA022C1D Panasonic Servo Motor Moudel Torque Limit Switch InputUS$ 1 - 1000000MOQ: 1 Unit
-
MSME022G1U Panasonic Servo Motor 3000 R/Min Rated Toque Control ModeUS$ 1 - 1000000MOQ: 1 Unit
-
MSMA042A1N Panasonic 200HZ Rated Industrial Servo Motor ControllerUS$ 1 - 1000000MOQ: 1 Unit
-
MSMD5AZG1U Panasonic 50W Rated Model AC Motor Separate PackagingUS$ 1 - 1000000MOQ: 1 Unit
Brand Name
Panasonic
Place of Origin
Japan
Model Number
MSM04A1B
| Brand: | Panasonnic | Model: | MSM042A1B |
|---|---|---|---|
| Place Of Origin: | Japan | Type: | AC SERVO MOTOR |
| Power: | 100W | Volatge: | 200V |
| High Light: | ewing machine servo motor,electric servo motor | ||
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| Fanuc motor A0- | Yokogawa transmitter EJA- |
Introduction:
Ever order a motor on power, speed, and enclosure? PO says maybe "5 hp, 1,800 rpm, TEFC."
New-motor nameplate says "HP 5, RPM 1748, Enclosure TEFC, Des B, Frame 184T, Amps 7.0,
PH 3, HZ 60, Duty Cont, Volts 460, Type P, Amb 40 C, SF 1.15, INS CL F, EFF 82.5, P.F. 80, DE
bearing 35BC02JGG30A26, ODE bearing 3OBC02JGG3OA26."
Should you reject the motor because it is not rated at 1,800 rpm? What does all that extra
information on the nameplate mean? Do you care? The answers are "maybe," "we'll discuss it in
a minute," and "you probably should."
To define the basic performance and mounting parameters of a motor, the National Electrical
Manufacturers Association (NEMA) defines some basic design and dimensional parameters in
NEMA Standard MG 1. These parameters are then coded onto the motor nameplate to give you a
basic definition of what you have received. Manufacturers often include additional information to
further define some key motor features.
Section MG 1-10.40, "Nameplate Marking for Medium Single-Phase and Polyphase Induction
Motors," of the NEMA standard requires that "The following minimum amount of information shall
be given on all nameplates of single-phase and polyphase induction motors. For abbreviations,
see MG 1-1.80."
* Manufacturer's type and frame designation
* Horsepower output.
* Time rating. (See MG 1-10.36.)
* Maximum ambient temperature for which motor is designed. (See Note I of MG 1-12.43.)
* Insulation system designation.
* RPM at rated load.
* Frequency.
* Number of phases.
* Rated load current.
* Voltage.
* Code letter for locked rotor kVA. (See MG 1-10.37.)
* Design letter for medium motors. (See MG 1-1.16.)
* NEMA nominal efficiency when required by MG 1- 12.55
* Service factor if other than 1.0.
