- Huizhou Linchuang Technology Co ., Ltd
- Main products: Mitsubishi AC Servo Motor, servo drives, circuit break

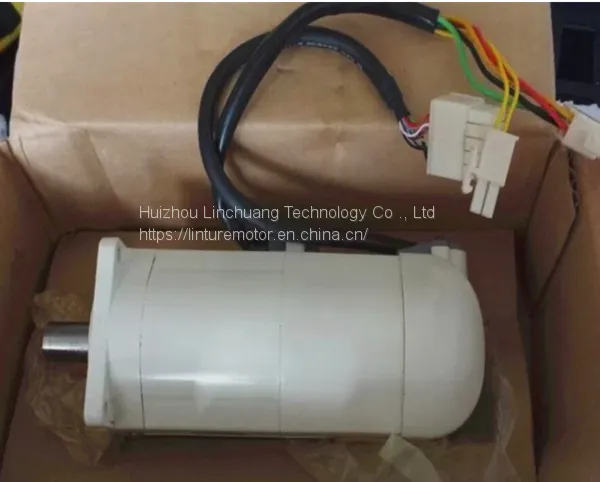

MSM042A1B Panasonic Electronic Have termination style wire leads
US$ 1 - 1000000
/ Unit
1 Unit(Min. Order)
- Shanghai
- T/T L/C PayPal
- 5 days
You May Like
-
AFP7AD8 Panasonic Industrial Control Devices PLC programmable Moudel
-
AFP7CPS21 Panasonic Product of Industrial Automation and Controls
-
AFP0HXY64D2T Driver Expandable Moduel Ethernet PLC Controllers
-
MSM042AJA Panasonic 200W Power Motor Modular In Cartons Package
-
FP2-X64D2 Panasonic PLC Controller Modular Brand new Servo Product
-
FP2-AD8VI Panasonic Programmable Controller Analog Input Unit
Product Details
| Brand Name | Panasonic | Place of Origin | Japan | |
| Model Number | MSM042A1B | Type | Servo Motor | |
| Certification | CCC, CE | Usage | Other, unverisal | |
| Construction | Permanent Magnet | Efficiency | IE 3 | |
| Protect Feature | Totally Enclosed | Voltage(V) | 200V | |
| Output Power | 100W | Continuous Current(A) | 1.2A | |
| Speed(RPM) | 3000R/MIN | Commutation | Brushless |
Product Description
| Brand: | Panasonic | Model: | MSM042A1B |
|---|---|---|---|
| Place Of Origin: | Japan | Type: | AC SERVO MOTOR |
| Power: | 100W | Volatge: | 200V |
| High Light: | ewing machine servo motor,electric servo motor | ||
Introduction:
Ever order a motor on power, speed, and enclosure? PO says maybe "5 hp, 1,800 rpm, TEFC."
New-motor nameplate says "HP 5, RPM 1748, Enclosure TEFC, Des B, Frame 184T, Amps 7.0,
PH 3, HZ 60, Duty Cont, Volts 460, Type P, Amb 40 C, SF 1.15, INS CL F, EFF 82.5, P.F. 80, DE
bearing 35BC02JGG30A26, ODE bearing 3OBC02JGG3OA26."
Should you reject the motor because it is not rated at 1,800 rpm? What does all that extra
information on the nameplate mean? Do you care? The answers are "maybe," "we'll discuss it in
a minute," and "you probably should."
To define the basic performance and mounting parameters of a motor, the National Electrical
Manufacturers Association (NEMA) defines some basic design and dimensional parameters in
NEMA Standard MG 1. These parameters are then coded onto the motor nameplate to give you a
basic definition of what you have received. Manufacturers often include additional information to
further define some key motor features.
Section MG 1-10.40, "Nameplate Marking for Medium Single-Phase and Polyphase Induction
Motors," of the NEMA standard requires that "The following minimum amount of information shall
be given on all nameplates of single-phase and polyphase induction motors. For abbreviations,
see MG 1-1.80."
* Manufacturer's type and frame designation
* Horsepower output.
* Time rating. (See MG 1-10.36.)
* Maximum ambient temperature for which motor is designed. (See Note I of MG 1-12.43.)
* Insulation system designation.
* RPM at rated load.
* Frequency.
* Number of phases.
* Rated load current.
* Voltage.
* Code letter for locked rotor kVA. (See MG 1-10.37.)
* Design letter for medium motors. (See MG 1-1.16.)
* NEMA nominal efficiency when required by MG 1- 12.55
* Service factor if other than 1.0.
