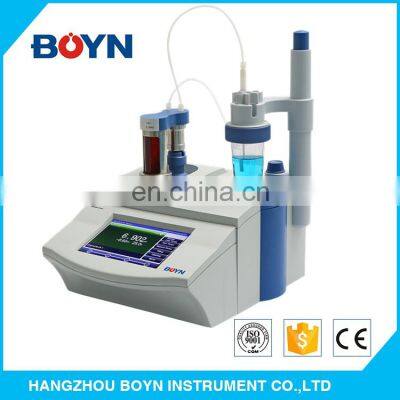

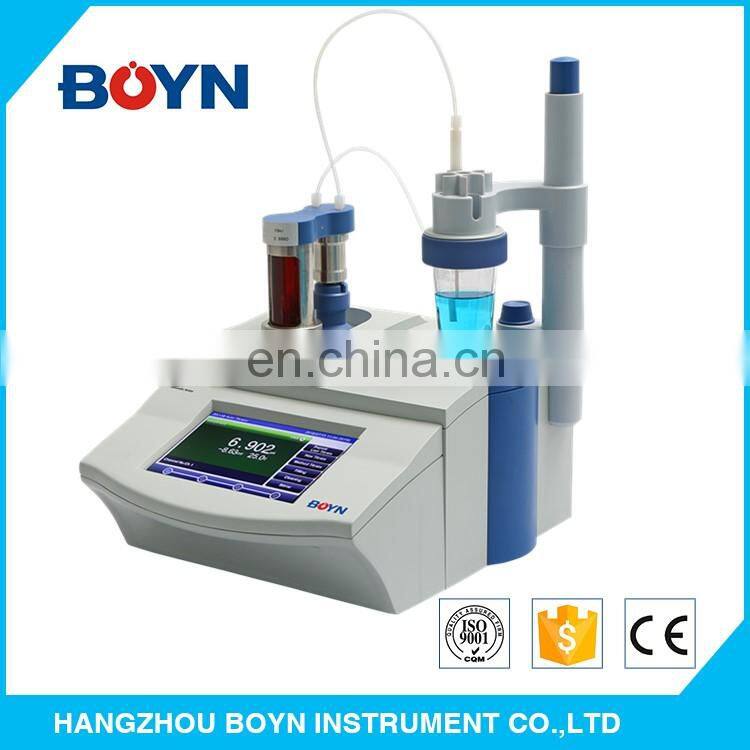

BNTIT-P5B Automatic Potential Titrator Volumetric & Coulometric

BNTIT-P5B Automatic Potential Titrator Volumetric & Coulometric

BNTIT-P5B Automatic Potential Titrator Volumetric & Coulometric





Features

-The system is ideal choose for applying in the food, pharmaceutical, agricultural and petroleum industries field.
-Automatically titrates, easy digital control and curve
-Easy to go-- function guide display walks you through operation
-Perform high accuracy of your measurements with burettes and sensors
-Everything you need in one meter for Pre-titration, Black titration, Pre-endpoint titration,
-Manual titration, Constant titration, or set titrating mode by customer
-Titration method: Acid/acidity, Redox, Precipitation, Complexometry, Non-aqueous titrations
-Data is convenience to export to a printer or PC via USB port & RS 232 port or be view, deleted in the meter. Store up to 200 data sets in the meter’ s memory for retrieval later
-Meter meets GLP requirements



                                                                                                Model
Specification

BNTIT-P5B Series

Titration

Volumetric
Titration
Unit

Repeatability of titration analysis

0.20%

Device

Allowable error of titration capacity

10ml Burette: ±0.025ml;



20ml Burette : ±0.035ml



Resolution of burette

10ml Burette : 1/20000;



20ml Burette : 1/10000



Resolution of drive

1/30000



Speed of infusion

( 55±10 ) s



( When the burette is full scale )

Measurement

Potential
Titration
(BNTIT-P5B)

Range

( -1999.0~1999.0 ) mV, ( 0.00~14.00 ) pH

Device

Resolution

0.1mV, 0.01pH



Basic error

pH: ±0.01pH    mV: ±0.03%FS



Stability

( ±0.3mV±1bit ) /3h



Conductivity
Titration
(BNTIT-P5B-D)

Range

( 0~1.999×105 ) μS/cm





Basic error

≤±1.0% (F.S)



Photometric Titration
(BNTIT-P5B-G)

Range

50~1500mV



Stability

±10mV/15min



Dead-stop
Titration
(BNTIT-P5B-Y)

Polarization voltage

100mV, 50mV, 30mV



Error of  polarization voltage

±10mV



Polarization current range

(0~199.9)μA, (0~19.99)μA,



(0~1.999)μA,(0~0.199)μA



Error of  polarization current

±2.5% FS



Temperature
Titration
(BNTIT-P5B-T)

Range

(0~60) ℃





Repeatability error

0.001℃



Temp. Compensation

Range

(-5.0~105.0) ℃



Resolution

0.1℃



Basic error

±0.3℃

Power Supply

AC (220±22) V; (50±1) Hz

Dimension (mm)& Weight (kg)

540*490*480mm; 13kg

Standard Configuration

10mL Valve-Burette,

213-01 Platinum electrode,

216-01 Silver electrode,

231-01 pH electrode,

232-01 Reference electrode,

217-01 Reference electrode,

T-818-B-6 ATC probe,

DJS-1C Bright conductivity electrode (BNTIT-P5B-D&BNTIT-P5B-Y),

T-828 ATC Probe(BNTIT-P5B-T)

pH buffer

Optional Accessories

20mL Valve-Burette;

Auxiliary titration unit

Photometric electrode (620nm, 570nm,520nm for BNTIT-P5B-G); Anti-diffusion capillary

Upper stirrer

ISE probe;

Printer
