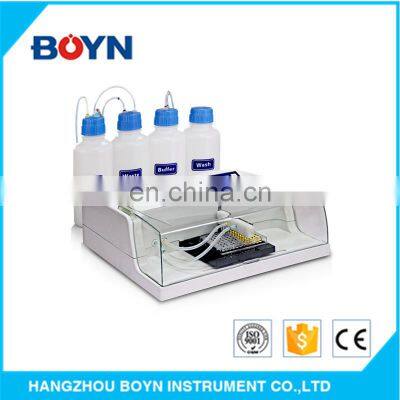

DRW-320 Elisa Microplate Washer

DRW-320 Elisa Microplate Washer

Main Features:

Large LCD display, menu designed for convenient use

Whole plate washing or single strip washing

12-way and 8-way manifold included

Low residual volume by two pipettes

Complete bottom washing

Shaking and dipping function

Automatic monitoring of vacuum and pressure, automatic rinse cycle

Flat, V-bottom or U-bottom plate and strips washing

Large memory to store up to 48 user programmed wash protocols

Emergency stop available and liquid warning

Technical Specifications

1.Display unit:liquid crystal display with four rows of twenty digits

2.Keyboard:8 key membrane keyboard

3.Manifold:8 pins and 12 pins

4.Residual aspiration volume:≤1μL / well

5.Washing times:0 to 99 times adjustable

6.Washing strips:1 to 12 adjustable

7.Dipping time:0~3600s adjustable

8.Shaking time:0~600s adjustable

9.Liquid volume:50~3000 μL / well

10.Sipping time:0.1~9.9 s

11.Instrument Size:448mm(L)×382mm(W)×163mm(H)

12.Package Dimension:480mm*540mm*590mm

13.Net Weight:8 kg

14.Gross Weight:12kg

15.Power requirements:AC 100V~240V,50/60 Hz

16.Power consumption:65watts

17.Operation temperature:5-40℃

18.Relative humidity:<80 %

19.Fluid reservoir capacity:wash, rinse, waste, buffer X 2L

20.Storage Capacity:More than 120 users defined wash board procedures
