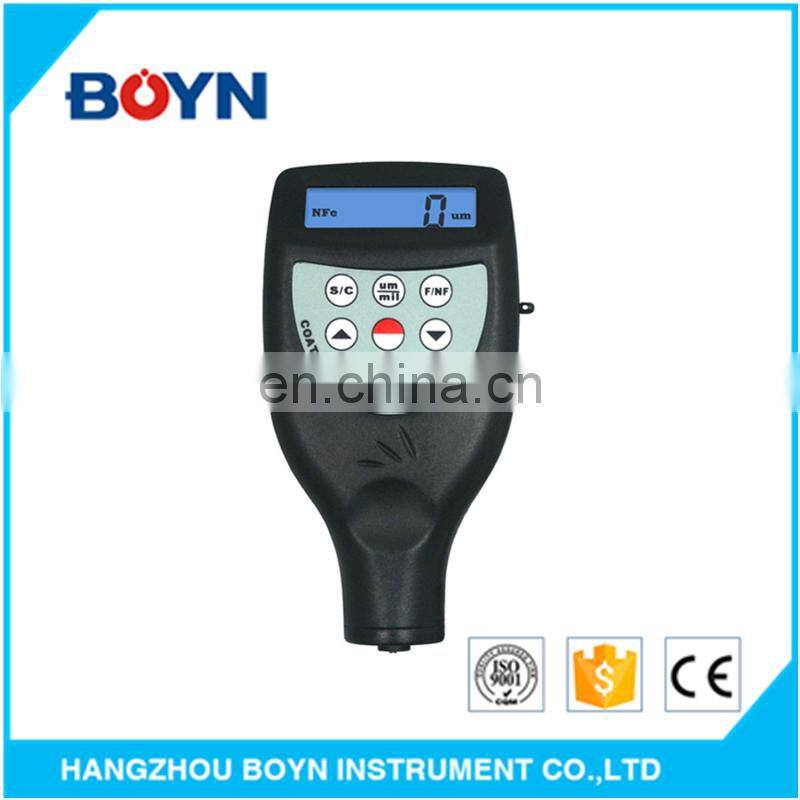

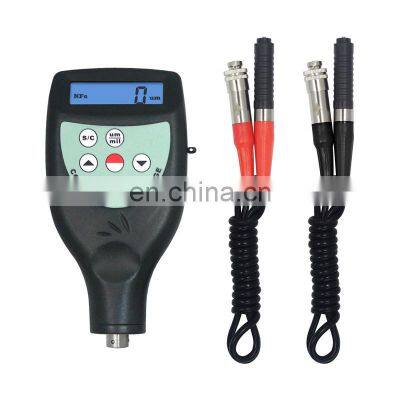

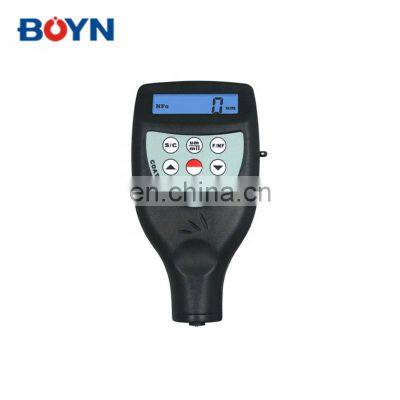

CM Series magnetic induction&eddy current mini digital paint coating thickness gauge
CM Series
Spec:
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide blue tooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Principle
|
rinciples |
Applications |
Examples |
|
F Type |
Measure the thickness of non-magnetic materials on magnetic materials |
Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
|
NF Type |
Measure the thickness of non-conductive coatings on non-magnetic metals |
Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Specifications
|
Model |
CM-8825 |
CM-8826 |
CM-8828 |
|
Principle |
NF Type Eddy Current / F Magnetic Induction |
NF Type Eddy Current / F Magnetic Induction |
NF Type Eddy Current & F Magnetic Induction |
|
Range |
0~1250µm/0~50mil |
0~1250µm/0~50mil |
0~1250µm/0~50mil |
|
Resolution |
0.1µm/1µm |
0.1µm/1µm |
0.1µm/1µm |
|
Accuracy |
±1~3%n or ±2.5µm |
±1~3%n or ±2.5µm |
±1~3%n or ±2.5µm |
|
Min.Radius Workpiece |
F Type:convex 1.5mm/concave 25mm |
F Type:convex 1.5mm/concave 25mm |
F Type:convex 1.5mm/concave 25mm |
|
NF Type:convex 3mm/concave 50mm |
NF Type:convex 3mm/concave 50mm |
NF Type:convex 3mm/concave 50mm |
|
|
Min.Measuring Area |
6mm |
6mm |
6mm |
|
Min.Sample Thickness |
0.3mm |
0.3mm |
0.3mm |
|
Metric/Imperial |
Convertible |
Convertible |
Convertible |
|
Battery Indicator |
Low Battery Indicator |
Low Battery Indicator |
Low Battery Indicator |
|
Automatic Power Off |
√ |
√ |
√ |
|
Operating Conditions |
Temperature:0~50ºC |
Temperature:0~50ºC |
Temperature:0~50ºC |
|
Humidity:<80%RH |
Humidity:<80%RH |
Humidity:<80%RH |
|
|
Power Supply |
4x1.5V AAA (UM-4)Battery |
4x1.5V AAA (UM-4)Battery |
4x1.5V AAA (UM-4)Battery |
|
Dimensions |
126x65x27mm |
126x65x27mm |
126x65x27mm |
|
Weight |
81g(Not Including Batteries) |
81g(Not Including Batteries) |
81g(Not Including Batteries) |
