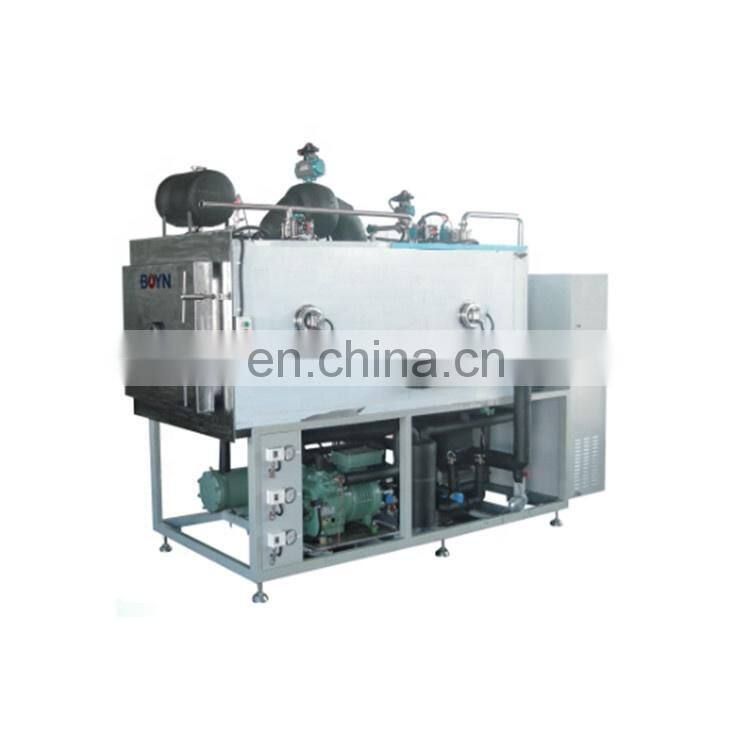

BNFD-PS High Quality Water Cooled Production Freeze Dryer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BNFD-PST Factory Direct Sale Water Cooled Production Freeze Dryer for LabNegotiableMOQ: 1 -
BNFD-PCS Water Cooled Production Freeze Dryer With Good PriceNegotiableMOQ: 1
-
High Quality Accessories Biological Safety Cabinet of Factory Price for LabNegotiableMOQ: 1
-
Circulating Bath, Water Bath DK-8AXXNegotiableMOQ: 1
-
AP-01D Oil Free Vacuum Pump for Solvent Filters With Good PriceNegotiableMOQ: 1
Product Description
Product features:
Separators are made with proprietary patented technology with high pressure resistance, high smoothness and good temperature uniformity.
The optimum control technology of freeze-drying curve can control the cooling rate in the pre-freezing stage and the heating rate and the vacuum value in the current stage in the sublimation and analytical drying stage.
Professional gas diversion design and control technology, strong water catching capacity, high drying effificiency
The unique double-way sealing technology of mobile + fifixed double-way box door sealing device sterilizes fifixed silicone rubber at the same time of steam sterilization.
BNFD-PS/PST/PCS Water Cooled Production Freeze Dryer
BNFD-PS/PST/PCS Water Cooled Production Freeze Dryer
BNFD-PS Water Cooled Production Freeze Dryer
BNFD-PS Water Cooled Production Freeze Dryer Vacuum adjustment is carried out during drying operation to avoid foaming and blowing of special substances and improve drying effificiency.
Industrial embedded touch screen + special SH-HPSC-IV modular controller, the system is stable and reliable, and the control accuracy is high.
The specially designed LYO-CONTROL control system can preserve many sets of process formulations, and adjust the process in real time during the drying process to improve the process optimization rate
Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.
Customer level and password can be set, and operation management can be decentralized to meet GMP requirements
The optimum control technology of freeze-drying curve can control the cooling rate in the pre-freezing stage and the heating rate and the vacuum value in the current stage in the sublimation and analytical drying stage.
Professional gas diversion design and control technology, strong water catching capacity, high drying effificiency
The unique double-way sealing technology of mobile + fifixed double-way box door sealing device sterilizes fifixed silicone rubber at the same time of steam sterilization.
BNFD-PS/PST/PCS Water Cooled Production Freeze Dryer
BNFD-PS/PST/PCS Water Cooled Production Freeze Dryer
BNFD-PS Water Cooled Production Freeze Dryer
BNFD-PS Water Cooled Production Freeze Dryer Vacuum adjustment is carried out during drying operation to avoid foaming and blowing of special substances and improve drying effificiency.
Industrial embedded touch screen + special SH-HPSC-IV modular controller, the system is stable and reliable, and the control accuracy is high.
The specially designed LYO-CONTROL control system can preserve many sets of process formulations, and adjust the process in real time during the drying process to improve the process optimization rate
Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.
Customer level and password can be set, and operation management can be decentralized to meet GMP requirements
Product Paramenters
Model |
BNFD-P100S |
BNFD-P200S |
BNFD-P300S |
BNFD-P500S |
BNFD-P1000S |
||||
Configuration |
Standard type |
Standard type |
Standard type |
Standard type |
Standard type |
||||
Freeze drying area |
1.15㎡ |
2.16㎡ |
3.24㎡ |
5.2㎡ |
10.5㎡ |
||||
Material loading capability （Thickness10mm） |
10L |
20L |
30L |
50L |
100L |
||||
Quantity of tray |
4+1PCS |
4+1PCS |
6+1PCS |
7+1PCS |
7+1PCS |
||||
Shelf size |
600X480mm |
600X900mm |
600X900mm |
750X1000mm |
990X1520mm |
||||
Shelf spacing |
80mm |
80mm |
80mm |
80mm |
80mm |
||||
Temperature range of shelf |
-50~+80℃ |
||||||||
Temperature accuracy |
±1℃ (in balance) |
||||||||
Ice condensing capacity |
≥20kg/B |
≥40kg/B |
≥60kg/B |
≥100kg/B |
≥200kg/B |
||||
Cold trap temperature |
≤-75℃ |
||||||||
Cooling model |
Water cooling |
||||||||
Defrosting model |
Water immersion |
||||||||
Final Vacuum degree |
≤5pa |
||||||||
Vacuum control range |
10-130Pa |
||||||||
Power |
15kw |
18kw |
21kw |
23.5kw |
50kw |
||||
Overall dimensions |
2500x1100x 2000mm |
2500x1300x 2000mm |
2800x1200x 2500mm |
4000x1500x 2500mm |
5000x2100x 3600mm |
||||
Net Weight |
1200kg |
2000kg |
2800kg |
3500kg |
6500kg |
||||
Power Supply |
380V 50/60HZ |
||||||||
