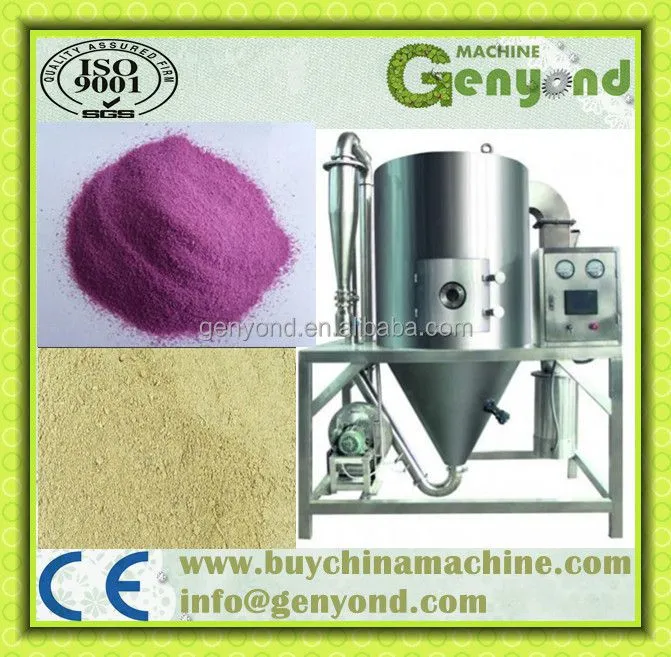

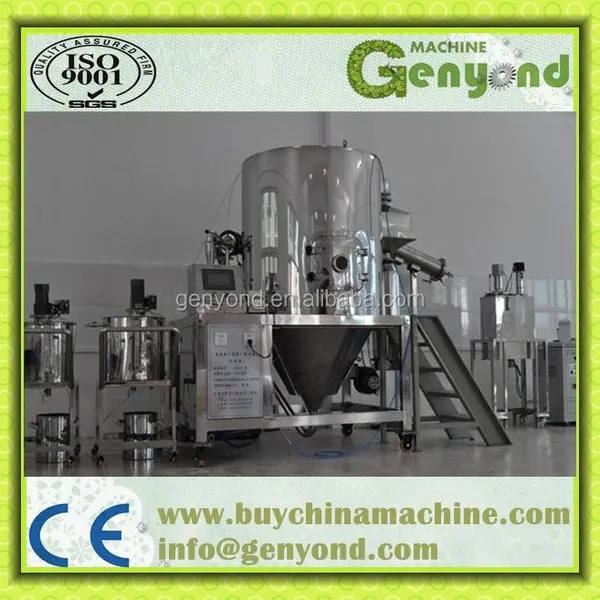

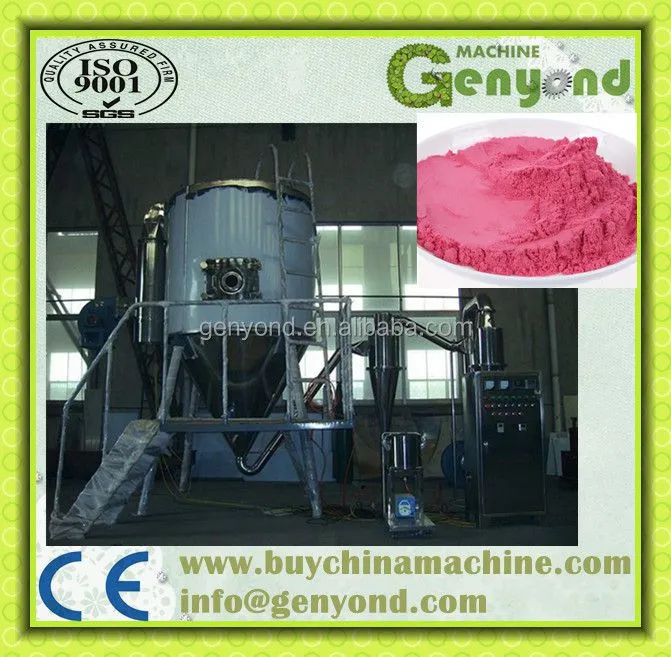

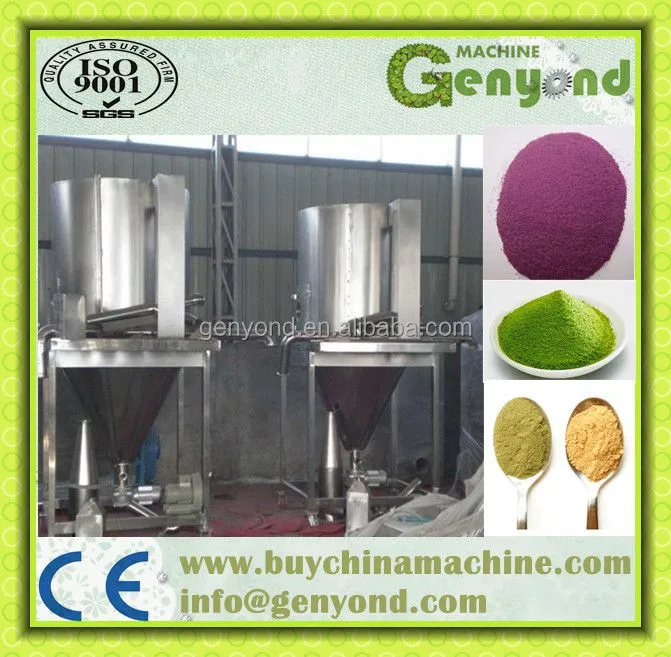

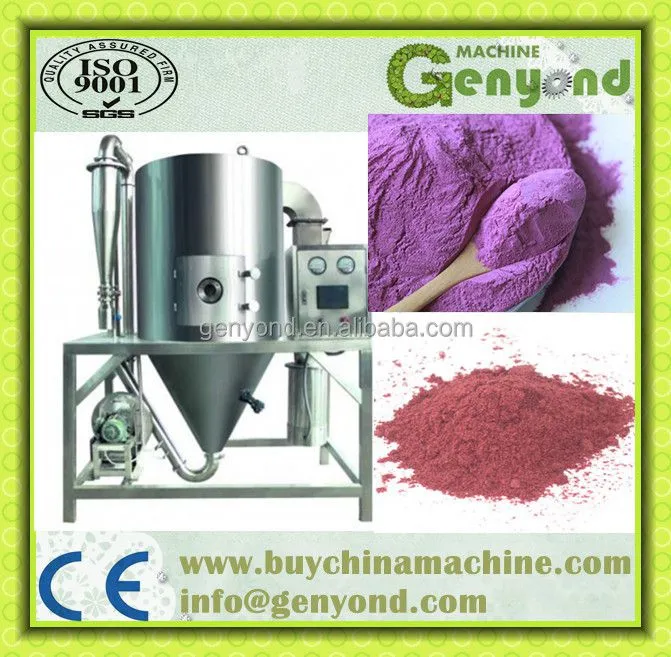

Help CenterPressure Spray Dryer/Fruit Juice Spray Dryer/instant Coffee Spray Dryerwith Factory Price
Related Products
-
Small Capacity Ginkgo Juice/fresh Fruit Juice Production Line /plant /processing Line /equipmentUS$ 80000.00MOQ: 1 Set -
Small Capacity Hawthorn Juice/fresh Fruit Juice Production Line /plant /processing Line /equipmentUS$ 6000.00MOQ: 1 Set
-
Date Molasses Production Line With Key Food Sterilizer MachineUS$ 65000.00 - 70000.00MOQ: 1 Set
-
Concentrated Fruit Juice/ Apple Juice Making Equipment / Fruit Juice Production LineUS$ 80000.00 - 90000.00MOQ: 1 Set
-
Shanghai Factory Small Tomato Pulping Evaporation Plant Machine Equipment Tomato Paste Sauce Ketchup Fruit Jam Production LineUS$ 38000.00MOQ: 1 Set
Machine Introduction
spray dryer priceis a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dariry products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
Working Priciple
Liquid material is pumped into the top installed rotary disc atomizer by mono pumpe and atomized into fine droplets inside the drying chamber. Heated and filtered hot air will be blown into the air distributor at the same time. The evenly and swirlly distributed hot air completely contact with the droplets for heat transfer. In several seconds, the droplets will be dried into powder and sucked out into the cyclone for discharging via exhaust fan.
Features
1.Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.
2.Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials, materials to maintain color, smell and taste.
3.Simplify the production process.The operational control is simple,which is suitable for control of production, wet 40-90% of the volume of liquid into a dry powder, reduce the crushing, screening processes.
Technical and Patameters
Project/Patameter |
Model:GY |
|||||
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
Inlet temperature (℃) |
140~350 (adjustable) |
|||||
Outlet temperature(℃) |
80-90 |
|||||
|
Maximum water Evaporattion (kg/h) |
5 |
25 |
50 |
100 |
150 |
200-2000 |
Centrifugal spray head rotation form |
Compressed air transmission |
Mechanical transmission |
||||
Rotary speed(r.p.m) |
25000 |
18000 |
18000 |
18000 |
15000 |
8000-15000 |
|
Spray device diameter(mm) |
50 |
100 |
120 |
140 |
150 |
180-340 |
Heating |
Electric |
Electric+ Steam |
Electric+Steam/Feul oil/gas |
By the user themsleves |
||
Max powerKW |
9 |
36 |
63 |
81 |
99 |
|
Dmension(m) |
1.8×0.93×2.2 |
3×2.7×4.26 |
3.7×3.2×5.1 |
4.6×4.2×6 |
5.5×4.5×7 |
Determined by the specific circumstances |
Dry powder recovery(%) |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
Noted:Some parameters design adjusted depending on the different material,prevail by the design. | ||||||
