Set and real-timely adjust freeze-drying technology by requirement and show the freeze-drying data and curve
LCD touch screen
Rectangle shelf with material of SUS304
Equipped with charging valve, optional with inert gas charging device

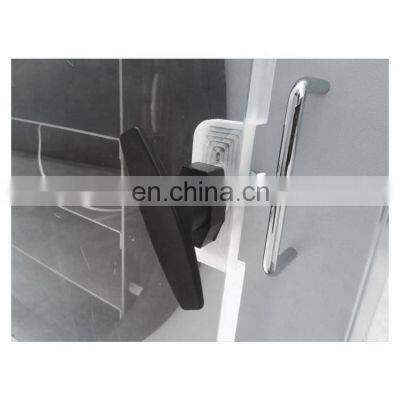

The transparent organic glass door is helpful in observing the freeze drying process of materials
Equipped with Standard with Direct-drive Rotary Vane Vacuum
Pump
Optional oil-less vacuum pump for model of BNFD-H10 and BNFD-H40
Model | BNFD-H10 | BNFD-H40 | BNFD-H60 | BNFD-HL10 | BNFD-HL40 | BNFD-HL60 | ||||
Shelf area | 0.1㎡ | 0.4㎡ | 0.6㎡ | 0.1㎡ | 0.4㎡ | 0.6㎡ | ||||
Ice condenser temperature | -40℃ | -70℃ | ||||||||
Ultimate Vacuum | 5Pa | 5Pa | ||||||||
Ice condenser performance | 1 kg/batch | 4 kg/batch | 6 kg/batch | 1 kg/batch | 4 kg/batch | 6 kg/batch | ||||
Number of Shelves | 3pcs | 4pcs | 4pcs | 3pcs | 4pcs | 4pcs | ||||
Shelf dimensions (W*L) | 145*275mm | 195*445mm | 335*445mm | 145*275mm | 195*445mm | 335*445mm | ||||
Shelves Spacing(mm) | 45mm | 45mm | 70mm | 45mm | 45mm | 70mm | ||||
Heating type | Electric-heating | Electric-heating | ||||||||
Electrical supply | AC 220V 50HZ | AC 220V 50HZ | ||||||||
Power | 750W | 1100W | 2300W | 1700W | 2500W | 3300W | ||||
Overall Dimensions(W*D*H) | 40*55*70cm | 51*70*85cm | 70*80*130cm | 55*62*85cm | 60*100*98cm | 70*100*130cm | ||||
Net Weight/Gross Weight | 50kg/95kg | 162kg/193kg | 220kg/250kg | 75kg/120kg | 190kg/245kg | 260kg/295kg | ||||
