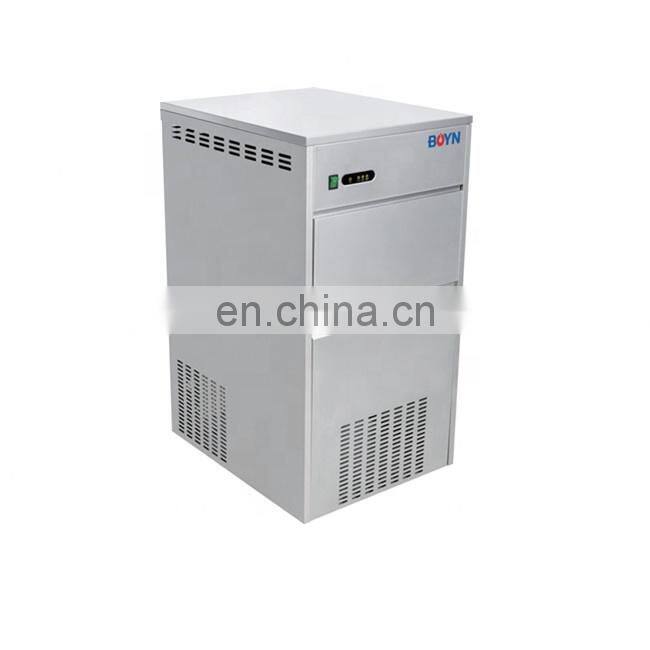

BIMF-60 BIMF-80 BIMF-85 Flake Ice Machine

BIMF-60 BIMF-80 BIMF-85 Flake Ice Machine photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Product features: Flake Ice
Free-standing installation
Overloading and water shortage and full ice alarm
High efficiency CFC free compressor, Economical
and low energy consumption
Fully automatic running and easy to use
Air cooling system, ventilate from side
Ice production testing condition: Ambient temperature
21°C ,inlet water temperature 10°C

Product Paramenters
Model
BIMF-60
BIMF-80
BIMF-85
Ice Production Capacity
60kg/24h
80kg/24h
85kg/24h
Ice Storage Capacity
15kg
30kg
20kg
Ice shape
Flake
Flake
Flake
Electrical Supply
AC220/50Hz
AC220/50Hz
AC220/50Hz
Power
450W
580W
540W
Refrigerant
R134a/125g
R134a/150g
R134a/140g
Condensing system
Air cooling
Air cooling
Air cooling
Overall Dimensions
398×512×810mm
500×610×947mm
548×612×872mm
Packing Dimensions
460×570×870mm
555×670×1000mm
615×685×932mm
Net weight
42kg
59kg
56kg
Gross Weight
48kg
65kg
62kg
Housing Material
304/2B Stainless Steel
304/2B Stainless Steel
304/2B Stainless Steel
Material of baseboard& backboard
galvanized steel
galvanized steel
galvanized steel
Ice Bin
Food Grade ABS
Food Grade ABS
Food Grade ABS
Insulation
Expanded Polystyrene
Expanded Polystyrene
Expanded Polystyrene
Evaporator
Nickel Plated copper
304 Stainless Steel
Nickel Plated copper
Inlet water
Drinking water
Drinking water
Drinking water
Water pressure
>0.15~0.3MPa
>0.15~0.3MPa
>0.15~0.3MPa
Inlet diameter
0.75inch
0.75inch
0.75inch
Pipeline material
Food Grade plastic
Food Grade plastic
Food Grade plastic
