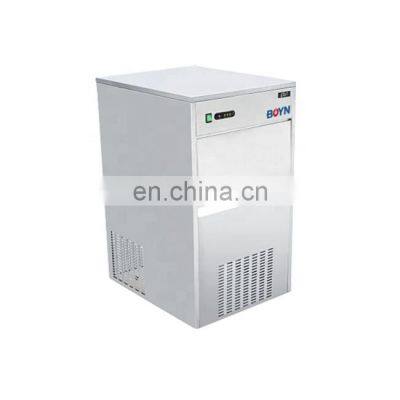

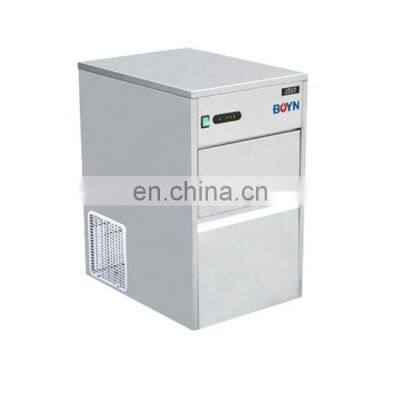

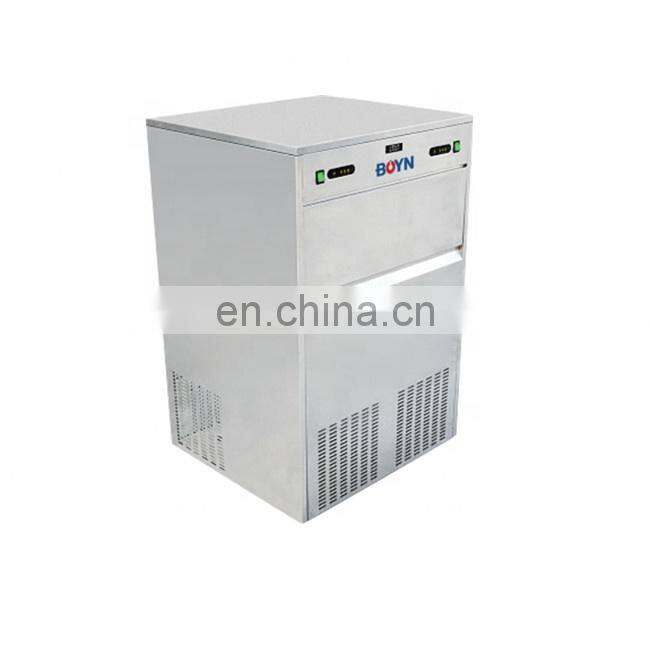

BIMB-50-II BIMB-50-III BIMB-90 BIMB-100 BIMB-120 Bullet Cube Ice Machine

Free-standing installation
Fully automatic running and easy to use
Air cooling system, ventilate from side
Overloading and water shortage and full ice alarm
High efficiency CFC free compressor, Economical and low energy
consumption
Ice production testing condition: Ambient temperature 21°C ,inlet
water temperature 10°C
Model | BIMB-50-II | BIMB-50-III | BIMB-90 | BIMB-100 | BIMB-120 |
Ice Production Capacity | 50kg/24h | 50kg/24h | 90kg/24h | 100kg/24h | 120kg/24h |
Ice Storage Capacity | 13kg | 25kg | 55kg | 55kg | 55kg |
Ice shape | Bullet Cube | Bullet Cube | Bullet Cube | Bullet Cube | Bullet Cube |
Electrical Supply | AC220/50Hz | AC220/50Hz | AC220/50Hz | AC220/50Hz | AC220/50Hz |
Power | 380W | 380W | 650W | 700W | 720W |
Refrigerant | R134a/200g | R134a/200g | R134a/370g | R134a/380g | R134a/400g |
Condensing system | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
Overall Dimensions(mm) | 548×611×823 | 500×610×893 | 682×610×1050 | 682×610×1050 | 682×610×1050 |
Packing Dimensions(mm) | 610×670×870 | 560×670×920 | 740×670×1080 | 740×670×1080 | 740×670×1080 |
Net weight | 50kg | 49kg | 71kg | 72kg | 76kg |
Gross Weight | 54kg | 54kg | 77kg | 78kg | 82kg |
Housing Material | 304/2B Stainless Steel | 304/2B Stainless Steel | 304/2B Stainless Steel | 304/2B Stainless Steel | 304/2B Stainless Steel |
Material of baseboard& backboard | galvanized steel | galvanized steel | galvanized steel | galvanized steel | galvanized steel |
Ice Bin | Food Grade ABS | Food Grade ABS | Food Grade ABS | Food Grade ABS | Food Grade ABS |
Insulation | Expanded Polystyrene | Expanded Polystyrene | Expanded Polystyrene | CFC-free foaming | CFC-free foaming |
Evaporator | Nickel Plated copper | Nickel Plated copper | Nickel Plated copper | Nickel Plated copper | Nickel Plated copper |
Inlet water | Drinking water | Drinking water | Drinking water | Drinking water | Drinking water |
Water pressure | >0.15~0.3MPa | >0.15~0.3MPa | >0.15~0.3MPa | >0.15~0.3MPa | >0.15~0.3MPa |
Inlet diameter | 0.75inch | 0.75inch | 0.75inch | 0.75inch | 0.75inch |
Pipeline material | Food Grade plastic | Food Grade plastic | Food Grade plastic | Food Grade plastic | Food Grade plastic |


Send Inquiry to This Supplier
