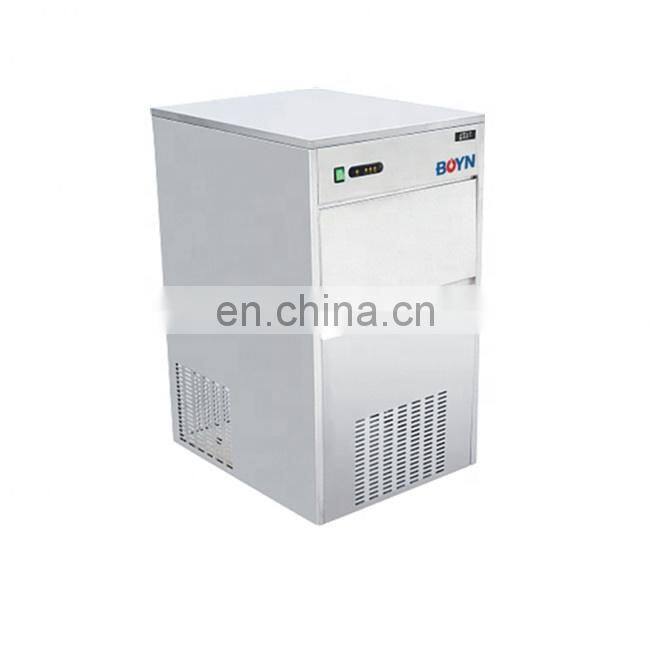

BIMB-20--BIMB-50-I Bullet Cube Ice Machine

BIMB-20--BIMB-50-I Bullet Cube Ice Machine photo-1
BIMB-20--BIMB-50-I Bullet Cube Ice Machine photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Product features: Bullet Cube Ice
Free-standing installation
Fully automatic running and easy to use
Air cooling system, ventilate from side
Overloading and water shortage and full ice alarm
High efficiency CFC free compressor, Economical and low energy
consumption
Ice production testing condition: Ambient temperature 21°C ,inlet
water temperature 10°C

Product Paramenters
Model
BIMB-20
BIMB-25-I
BIMB-25-II
BIMB-26
BIMB-50-I
Ice Production Capacity
20kg/24h
25kg/24h
25kg/24h
26kg/24h
50kg/24h
Ice Storage Capacity
5kg
7kg
12kg
7kg
7kg
Ice shape
Bullet Cube
Bullet Cube
Bullet Cube
Bullet Cube
Bullet Cube
Electrical Supply
AC220/50Hz
AC220/50Hz
AC220/50Hz
AC220/50Hz
AC220/50Hz
Power
220W
240W
240W
240W/380W
380W
Refrigerant
R134a/110g
R134a/140g
R134a/140g
R134a/140g
R134a/190g
Condensing system
Air cooling
Air cooling
Air cooling
Air cooling
Air cooling
Overall Dimensions(mm)
330×503×607
398×512×810
398×512×810
398×542×682
398×542×682
Packing Dimensions(mm)
400×570×640
460×590×830
460×590×830
460×610×710
460×610×710
Net weight
28kg
32kg
32kg
31kg
33kg
Gross Weight
30kg
34kg
34kg
35kg
37kg
Housing Material
304/2B Stainless Steel
304/2B Stainless Steel
304/2B Stainless Steel
304/2B Stainless Steel
304/2B Stainless Steel
Material of baseboard& backboard
galvanized steel
galvanized steel
galvanized steel
galvanized steel
galvanized steel
Ice Bin
Food Grade ABS
Food Grade ABS
Food Grade ABS
Food Grade ABS
Food Grade ABS
Insulation
Expanded Polystyrene
Expanded Polystyrene
Expanded Polystyrene
Expanded Polystyrene
Expanded Polystyrene
Evaporator
Nickel Plated copper
Nickel Plated copper
Nickel Plated copper
Nickel Plated copper
Nickel Plated copper
Inlet water
Drinking water
Drinking water
Drinking water
Drinking water
Drinking water
Water pressure
>0.15~0.3MPa
>0.15~0.3MPa
>0.15~0.3MPa
>0.15~0.3MPa
>0.15~0.3MPa
Inlet diameter
0.75inch
0.75inch
0.75inch
0.75inch
0.75inch
Pipeline material
Food Grade plastic
Food Grade plastic
Food Grade plastic
Food Grade plastic
Food Grade plastic
