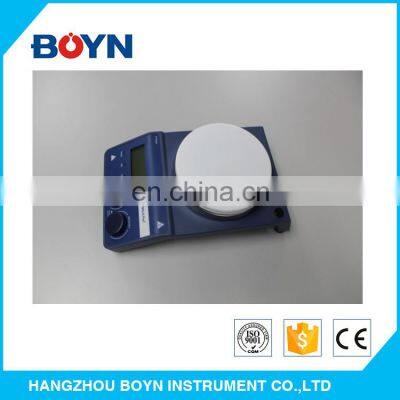

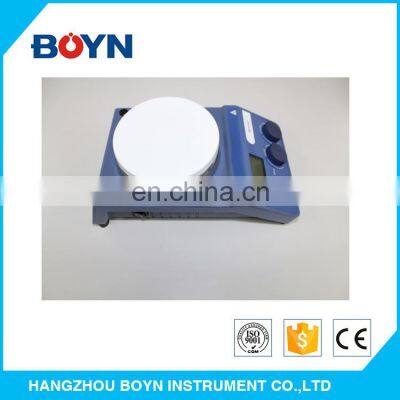

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer With Timer Function photo-1
MS-H-ProT LCD Digital Magnetic Hotplate Stirrer With Timer Function photo-2
MS-H-ProT LCD Digital Magnetic Hotplate Stirrer With Timer Function photo-3
MS-H-ProT LCD Digital Magnetic Hotplate Stirrer With Timer Function photo-4
MS-H-ProT LCD Digital Magnetic Hotplate Stirrer With Timer Function photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

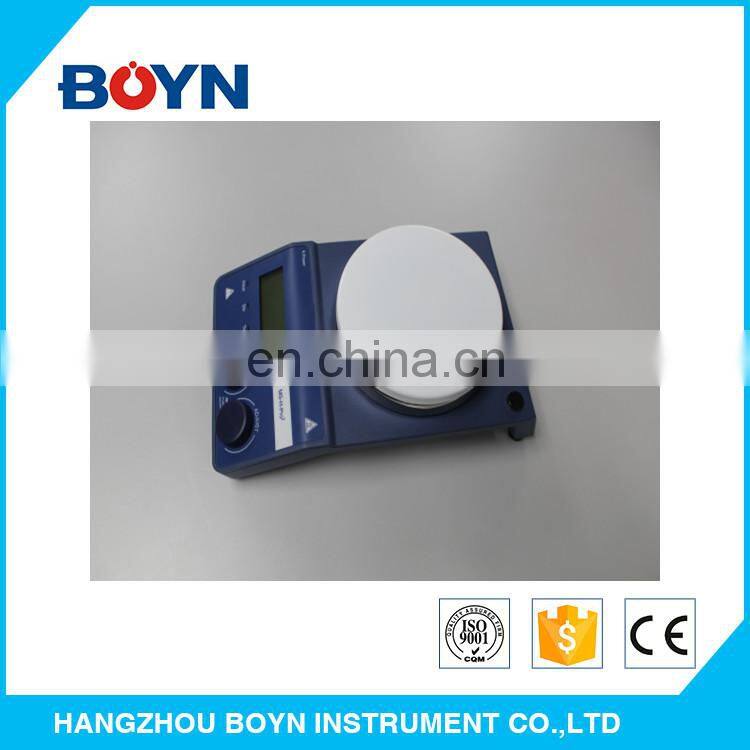

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT  LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function



Features:

- Stainless steel with ceramic coated hotplate resists to corrosion
- Separated safety circuit, automatically stop heating when temperature over 350℃
- Motor with electronic speed control, constant speed even during changes in load
- Variable speed of motor
- High magnetic adhesion, prevent the stirrer bar escape
- Enclosed assembly with protection class IP42 and DC brushless motor guarantees long service

Specifications

 Dimension of work plate

 φ135mm ( 5 inch )

 Work plate material

 stainless steel cover with ceramic

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Power

 550W

 Heating output

 500W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity [ H2O ]

 20L

 Max. magnetic bar [ length ]

 80mm

 Speed range

 100-1500rpm, resolution±1rpm

 Speed display

 LCD

 Temperature display

 LCD

 Heating temperature range

 Room temp.~340°C, increment 1°C

 Temperature control accuracy

 ±1°C( <100°C)

 ±1%( >100°C)

 Over temperature protection

 360°C

 Temperature display accuracy

 ±0.1°C

 External temperature sensor

 PT1000(accuracy ±2)

 Timer function

 1min~99h 59min

  Data connector

 RS232

 Protection class

 IP42

 Dimension [ W x D x H ]

 160×280×85mm

 Weight

 2.8kg

 Permissible ambient temperature and humidity

 5-40°C, 80%

                                                                                                                                                                                       Please send inquiry>>

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

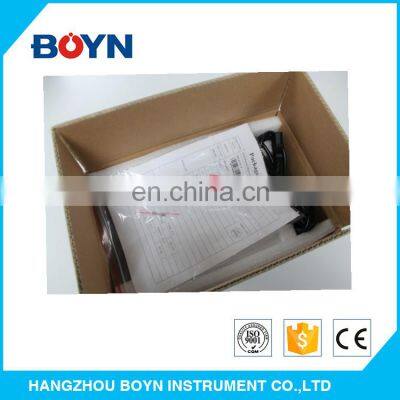

                                       If you need any detail packing information, please contact us>>

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function

                                                                       If you have any question, please contact us>>

MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer Function
