Home freeze drying machine pharmaceuticals food laboratory small household freeze dryer

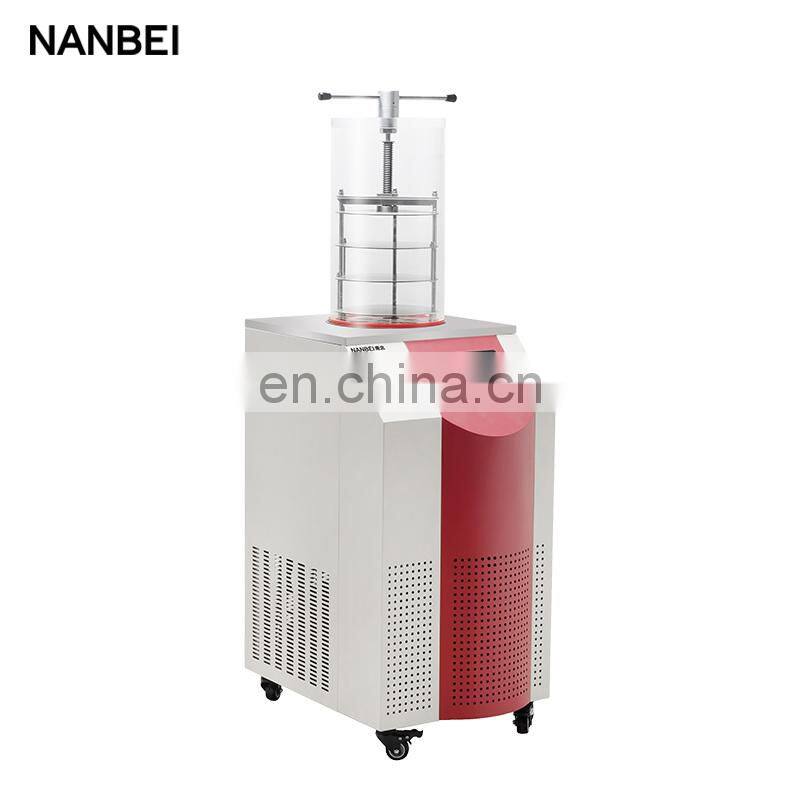

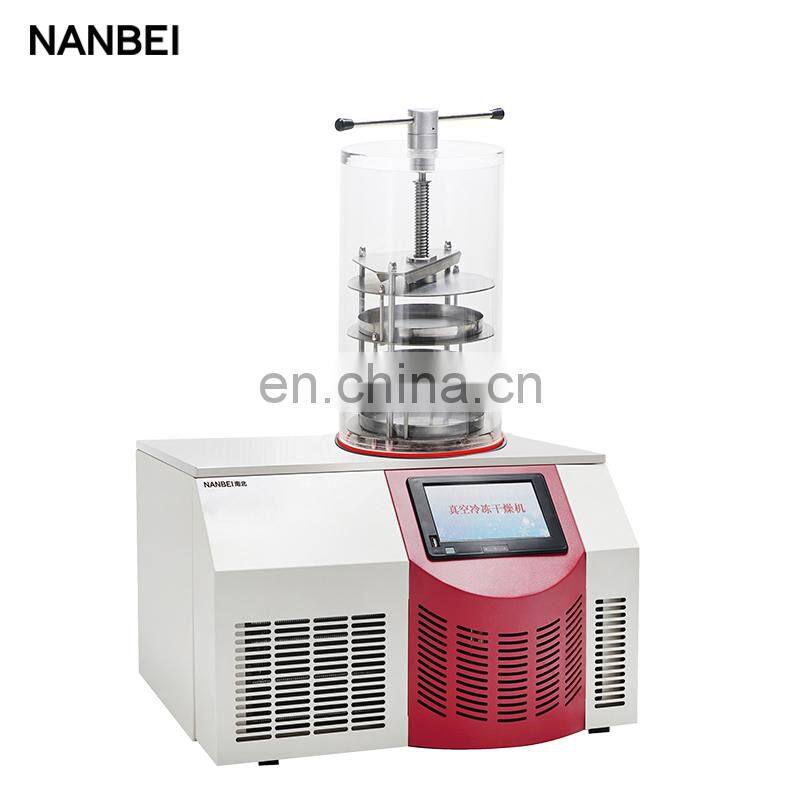

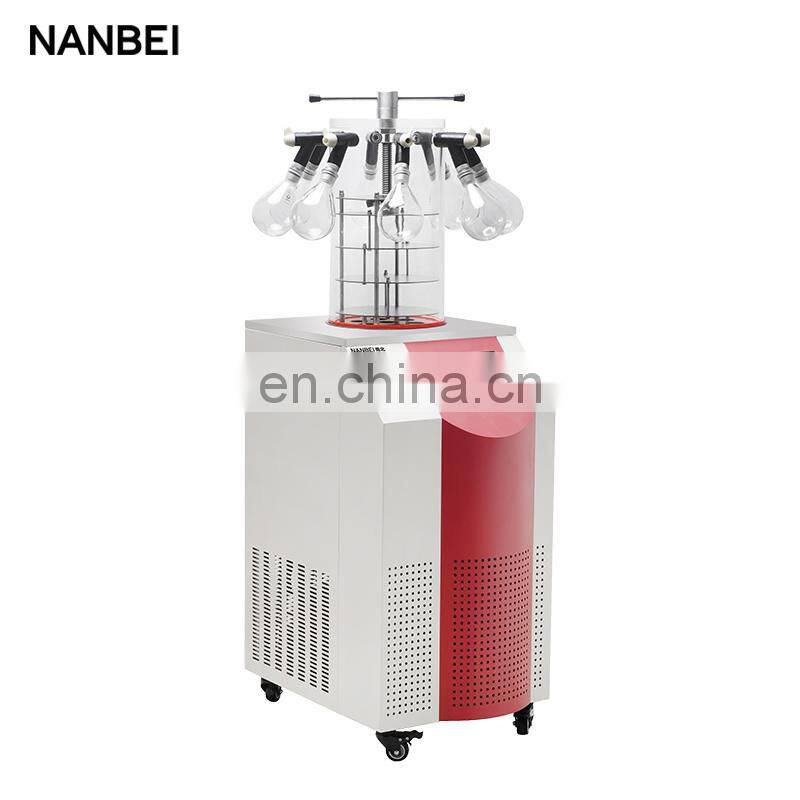

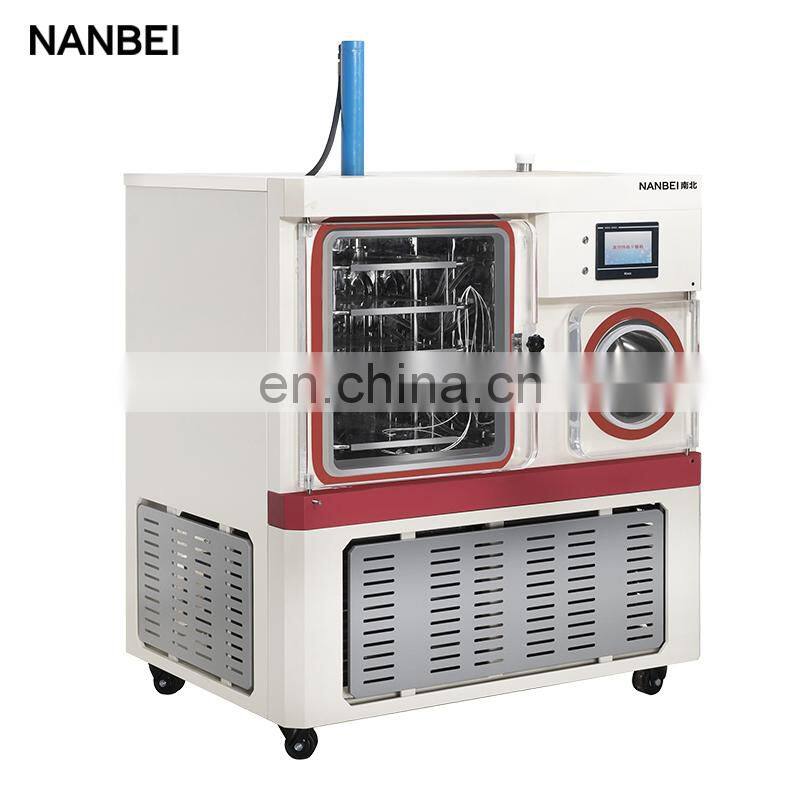

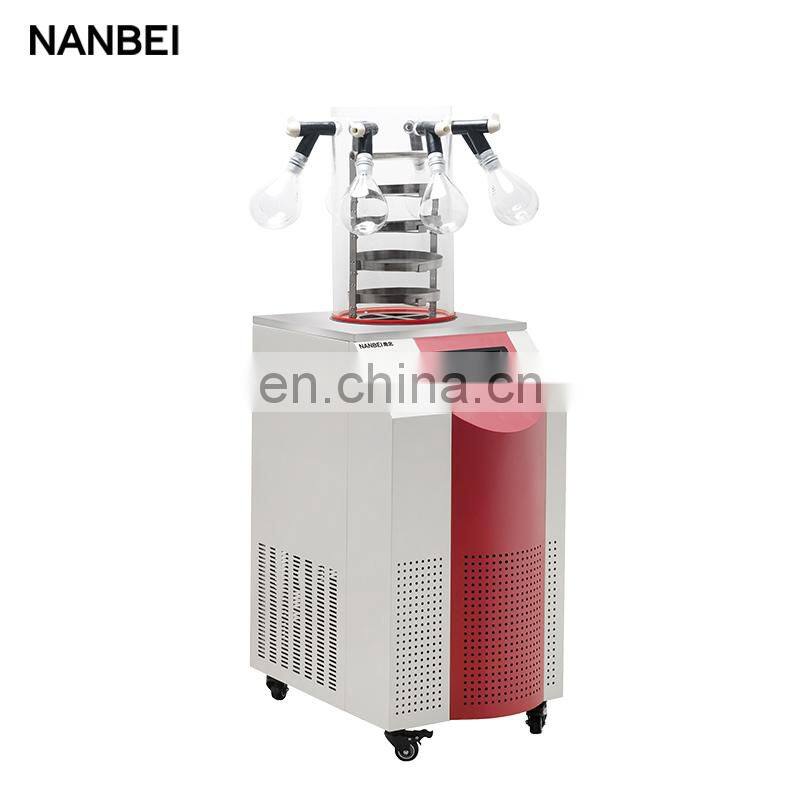

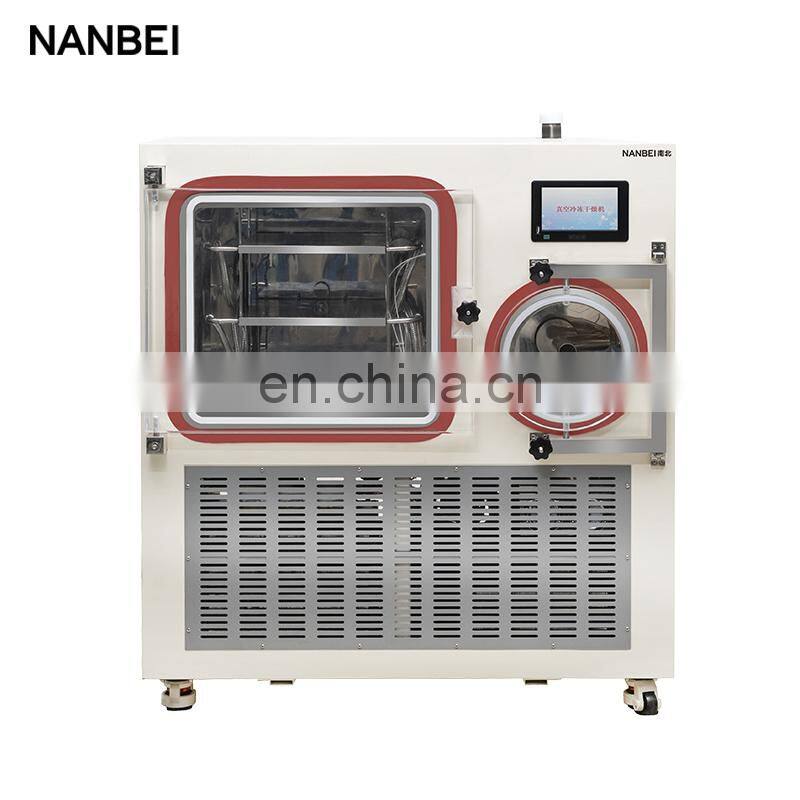

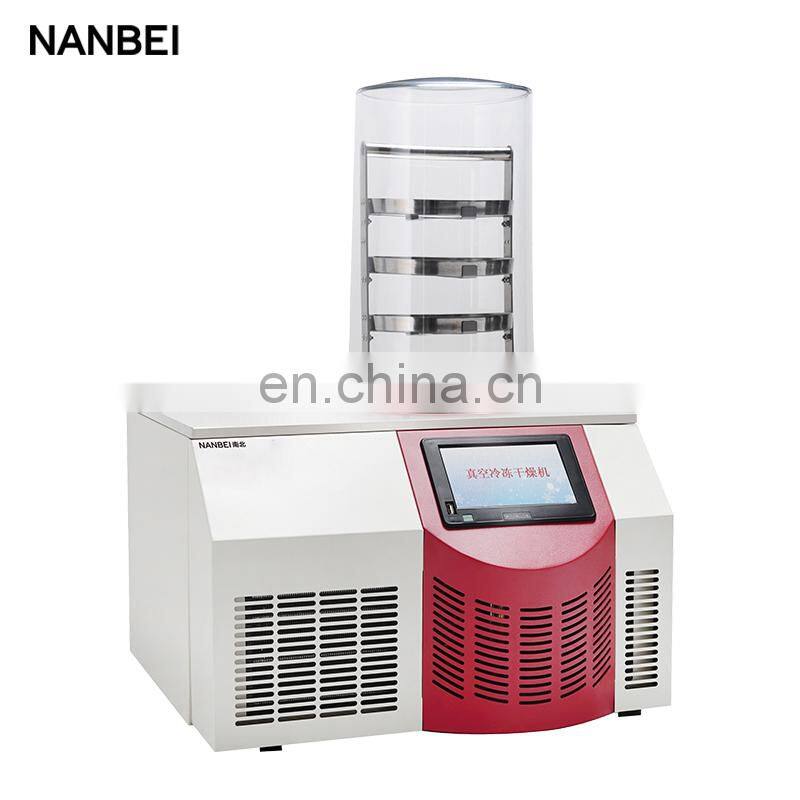

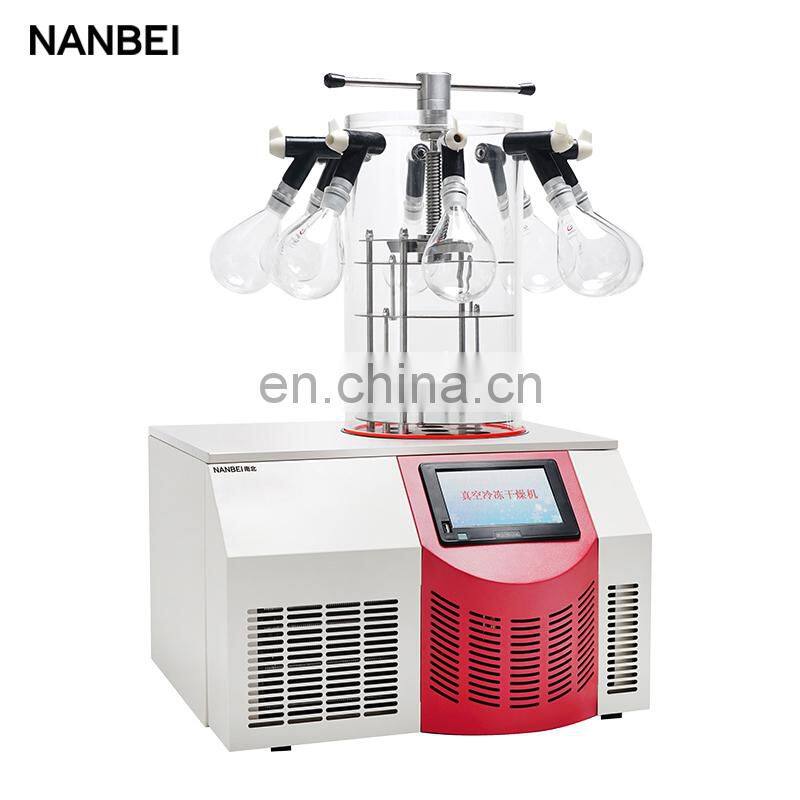

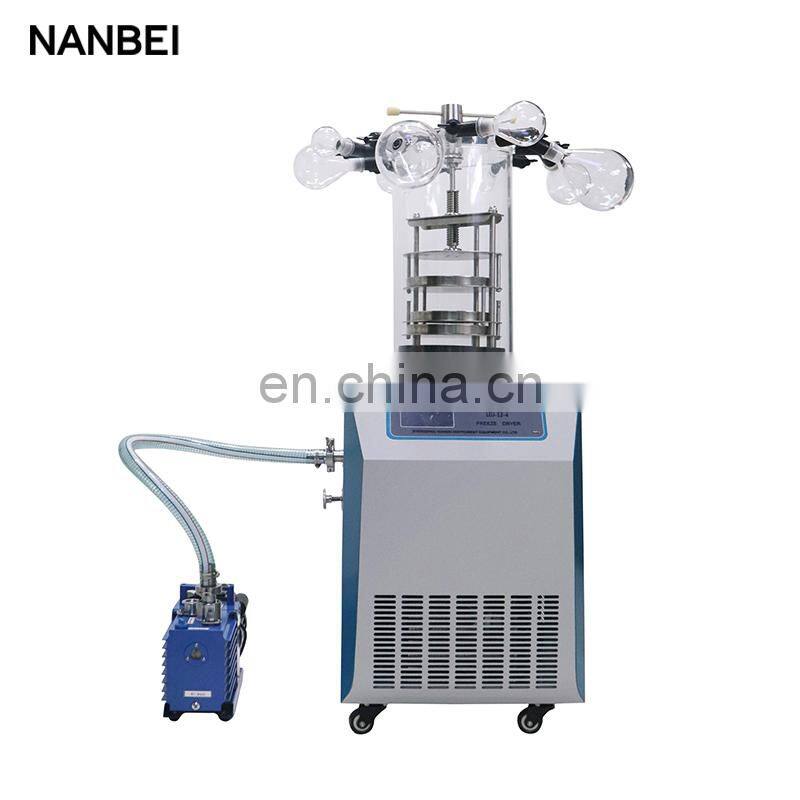

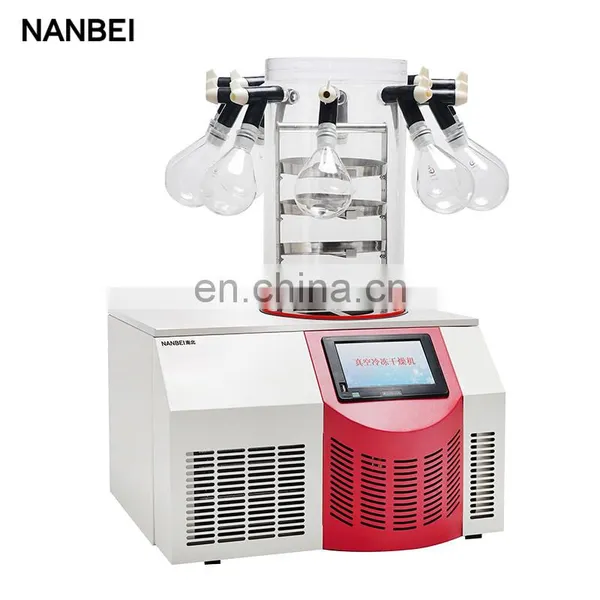

The NBJ series of freeze dryers are specially designed in either table top or upright, which have compact structure, small footprint, reliable performance and competitive price for various laboratory use. There are four general types, “-S”, “-T”, “-P” and “-PT” and they can be used widely in biological engineering, pharmaceutical industry, food industry, material science and agriculture.
|
|
|
|
|
|
Freeze Dryer General Features
1. LCD touch screen display to show test curve and other necessary operational parameters
2. Standard USB interface
3. Low sound level
4. Stainless steel condenser and work station for easy cleaning and maintenance
5. Transparent acrylic drying chamber for easy observation of freezing and drying process
6. Compatible interface for different vacuum pumps connection
7. Various optional accessories
|
|
|
Usage and Application
The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.
Technical Data
|
Model |
NBJ-10S |
NBJ-10T |
NBJ-10P |
NBJ-10PT |
|
Final condenser temp (℃) |
-55 |
-55 |
-55 |
-55 |
|
Vacuum Degree (Pa) |
<10 |
<10 |
<10 |
<10 |
|
Freeze drying area (m2) |
0.12 |
0.09 |
0.12 |
0.09 |
|
Ice condenser capacity (Kg/24h) |
3 |
3 |
3 |
3 |
|
Qty of shelf |
4 |
3 |
4 |
3 |
|
Material loading capacity/shelf (ml) |
300 |
300 |
300 |
300 |
|
Material loading capacity (ml) |
1200 |
900 |
1200 |
900 |
|
Freeze drying time (h) |
24 |
24 |
24 |
24 |
|
Manifold |
/ |
/ |
8 pieces |
8 pieces |
|
USB Interface |
Y |
Y |
Y |
Y |
|
Control System |
Microprocessor, touch screen |
|||
|
Power supply (V/Hz) |
220V/50Hz,60Hz, 120V/60Hz |
|||
|
Exterior dimension (WxDxH mm) |
472*558*438/885 |
|||
|
Note |
Shelf heating function is optional; |
|||
|
|
|
|
| Freeze Dryer | Bench Top Freeze Dryer | Spray Dryer |
Send An Inquiry To Get More Details
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2: OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
Please feel free contact for more details .Thanks
