Freeze drying in situ lyophilizer machine price

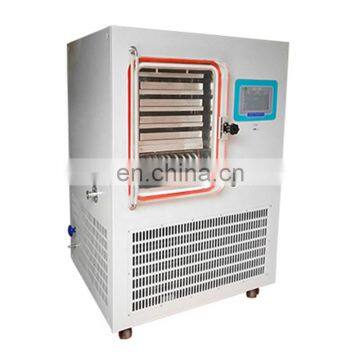

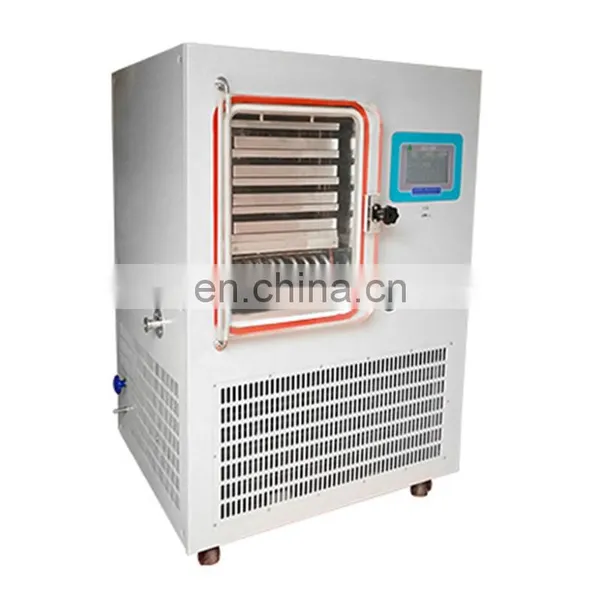

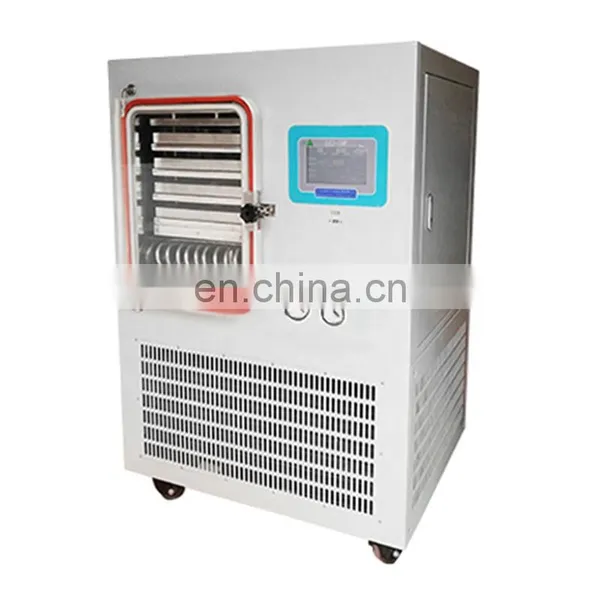

NBJ-30F Vacuum Freeze Dryer (standard type)
NBJ-30F Freeze Dryer is suitable for pilot scale or small scale production.
This series is one of our patent products.This series of dryers with heating shelf,
freezing and drying process are finished in the same place.It changes traditional
complicated operation and prevents the product from pollution.
With heating shelf and PID control standard, with programmable function
Freeze and drying process are completed on shelves
32 groups programme can be stored, each programme can be set up 36 segments
With organic glass observation window, whole process is easy to see
Silicon oil fills hollow shelves, with most uniform shelf temp.,consistent and repeatable drying
Big touch screen LCD display drying curves
Internal surface of rectangular chamber and productc tray are constructed of stainless steel
Air-let-in valve with nitrogen is available
Eutectic point test device is optional
Freeze drying area | 0.4m2 |
Condenser capacity | 6 kg /24h |
Condenser temperature | Min. ≤-70℃ |
Vacuum degree | ≤10 Pa |
shelf temperature | -50℃----+70℃ |
Shelf layers | 4+1 layers; 50mm spacing |
Shelf size | 300x340x15mm |
Bulk capacity | 4 L, 10mm thickness |
Vial capacity Φ12mm | 2600 pcs |
Vial capacity Φ16mm | 1440 pcs |
Vial capacity Φ22mm | 728 pcs |
Electric defrosting | N/A |
Cooling | Air,draughty,ambient temperature≤25℃ |
Voltage | 220V, 50Hz |
Host dimension | 880x735x1310mm |
Weight | 300 kg |
Power | 3.5 KW |
Package : Wooden case package
Shipping : 5~7days
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
