Product Description

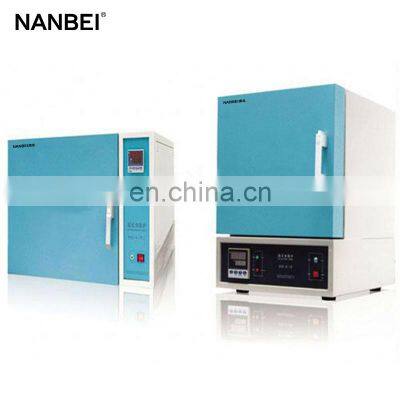

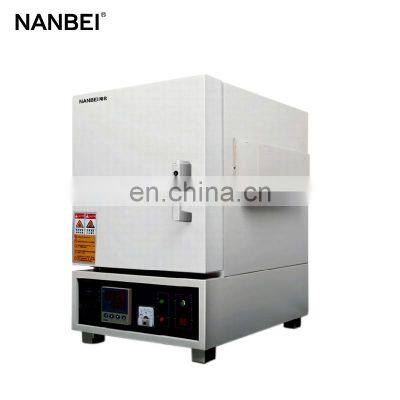

1200 degree 1300 degree high temperature digital lab muffle furnace
Scope of application
The products are widely applied in the chemical analysis and physical determination for labs in industrial and mining enterprises, scientific research institutes, etc; sintering stoneware, porcelain and ceramics; high-temperature heat treatment for metal annealing quenching and tempering
Product solution
We offer various series of standardized products to satisfy the requirements of most customers. We can also provide solutions tailored to your unique requirements on heat treatment. We are ready to serve you upon request.
Type selection of electric resistance furnaces
T-series hearth
It adopts high-density ceramic fiber, an emerging modern refractory material, featuring light weight,
rapid temperature rise, time saving, etc, to satisfy the requirements on rapid sintering under various conditions. It is the optimal substitute for traditional hearth.
G-series hearth
It adopts traditional refractory material and features wide application, high performance-price ratio,
long service life etc.
Furnace body construction
NB2 electric furnaces (except 1300℃) are available in vertical and horizontal versions. The customers may choose either based on their needs
NB2-13T/G Series 1300 degree high temperature digital lab muffle furnace:
Model |
NB2-4-13G |
NB2-6-13G |
NB2-8-13G |
NB2-4-13T |
NB2-6-13T |
NB2-8-13T |
Hearth dimensions(mm) |
250X150X100 |
400X200X160 |
500X200X180 |
250X150X100 |
400X200X160 |
500X200X180 |
Furnace volume |
4L |
13L |
18L |
4L |
13L |
18L |
Design temp. |
1300℃ |
|||||
ntrol precision |
±1℃ |
|||||
Temp. control method |
PID temperature controller |
|||||
Temp. rise rate |
≤15℃/min for T-series |
≤50℃/min for T-series |
||||
Input power |
4kw |
6kw |
8kw |
4kw |
6kw |
8kw |
Source voltage |
AC220V |
AC380V |
AC380V |
AC220V |
AC380V |
AC380V |
Heating elements |
Straight-type silicon carbide |
U-type silicon carbide |
Straight-type silicon carbide |
U-type silicon carbide |
||
Sensor |
S-type platinum and rhodium |
|||||
Dimensions(mm) |
620x500x660 |
770x600x770 |
850x850x700 |
620x500x660 |
590x520x620 |
850x850x700 |
NB2-13GJ Series1300 degree high temperature digital lab muffle furnace:
Model |
NB2-4-13GJ |
Hearth dimensions(mm) |
250X150X100 |
Furnace volume |
4L |
Design temperature |
1300℃ |
Highest temperature |
1200℃ |
Temperature control precision |
±1℃ |
Temperature control method |
PID temperature controller |
Temperature rise rate |
≤20℃/min for T-series |
Input power |
4kw |
Source voltage |
AC220V |
Heating elements |
Straight-type silicon carbide |
Sensor |
S-type platinum and rhodium |
Dimensions(mm) |
500X400X500 |

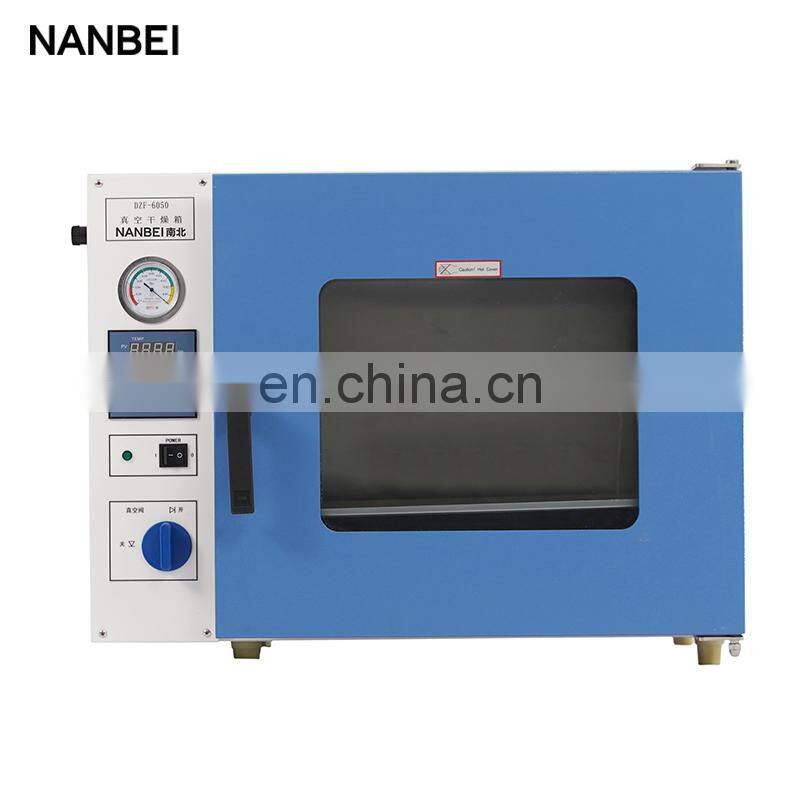

lab vacuum drying oven |
lab heating equipment |

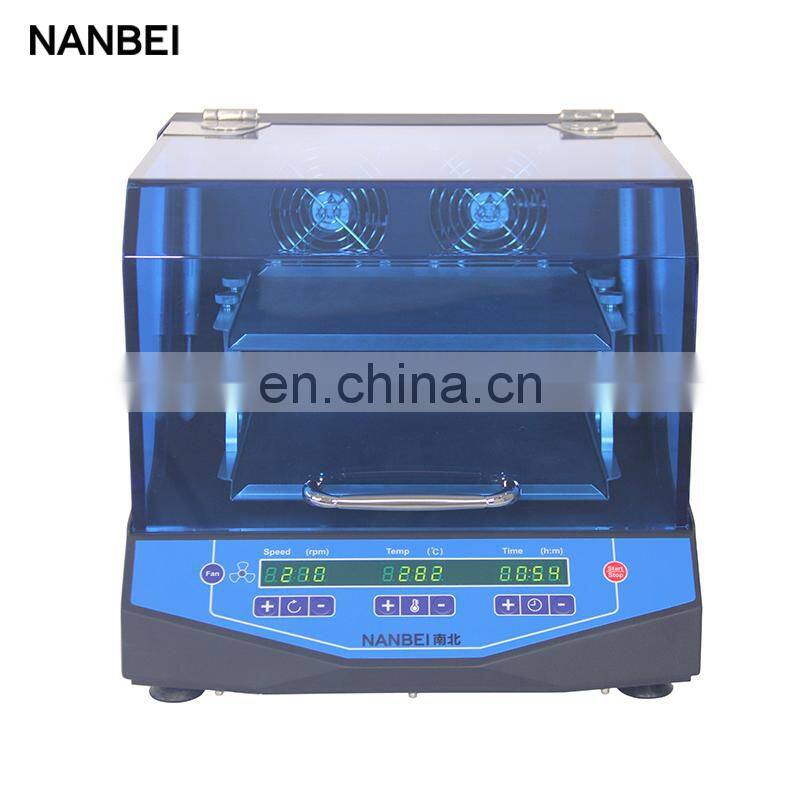

lab incubator shaker |
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
We do not just sell equipment,we pay more attention to provide users with
high quality service!
