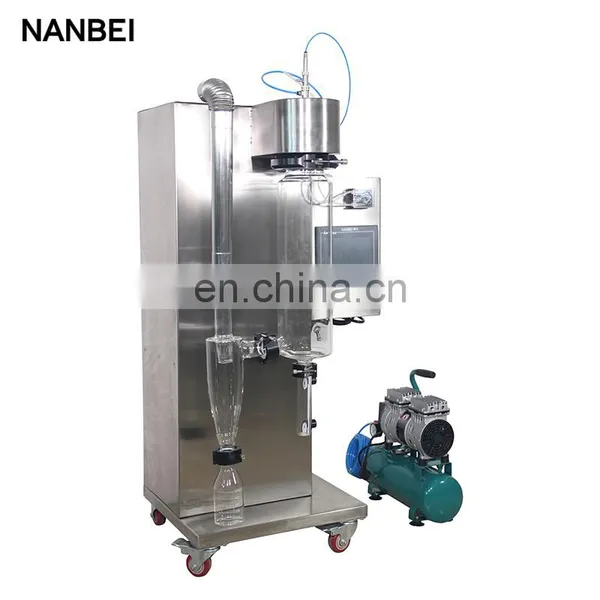

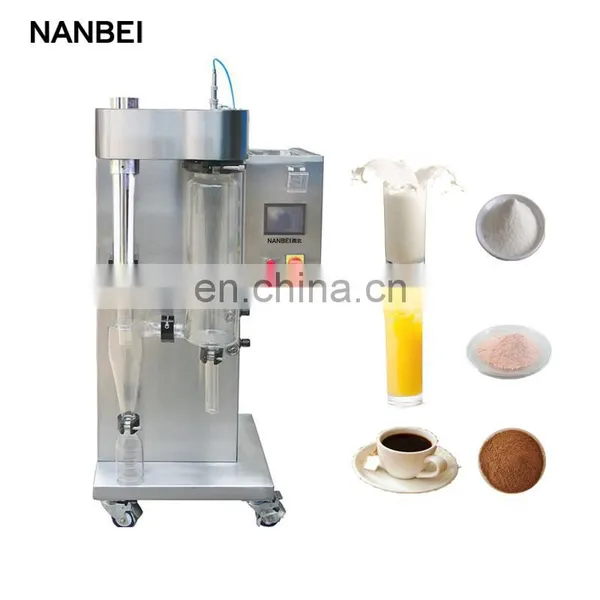

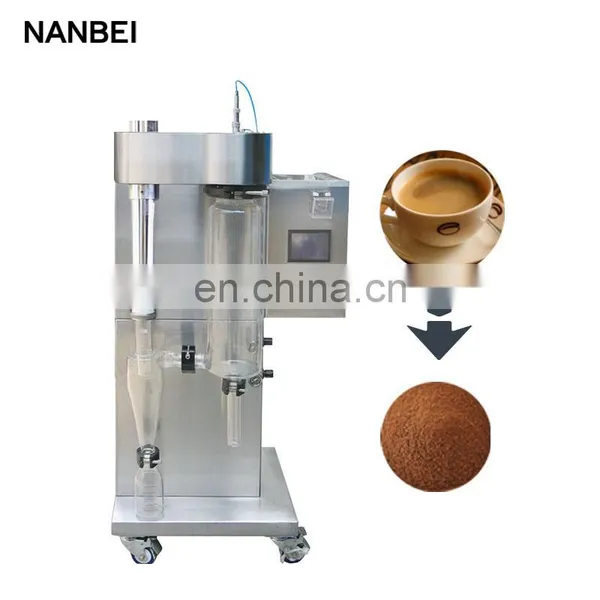

Cheap NSP-1500 Mini Lab Milk Coffee Meat Powder Spray Dryer for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plant Egg Liquid Drying Small Scale Spray Dryer Machine for LabNegotiableMOQ: 1 -
2L/H Mini Coffee Milk Powder Lab Spray Dryer MachineNegotiableMOQ: 1
-
Ika Magnetic Stirrer CE ConfirmedNegotiableMOQ: 1
-
500ml 2000ml Digital Display Heating MantleNegotiableMOQ: 1
-
Widely Used in Loop Inoculating Needle Infrared SterilizerNegotiableMOQ: 1
Product Description
2L/h mini spray dryer
Application:
1. Various fields where the production of a free powder sample is required
2. NSP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others.
Features:
1 Special for lab research, min 20-30ml liquid to finish one test
2 All borosilicate glass for easy visual monitoring of process status
3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment
4 Easy to clean and very simple to assemble and break down

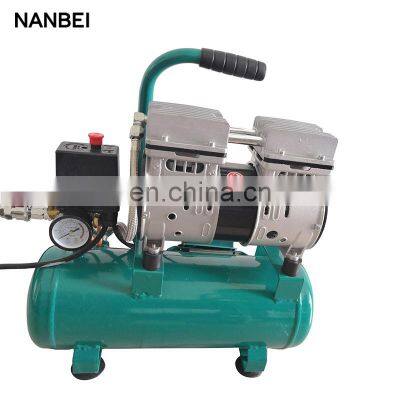

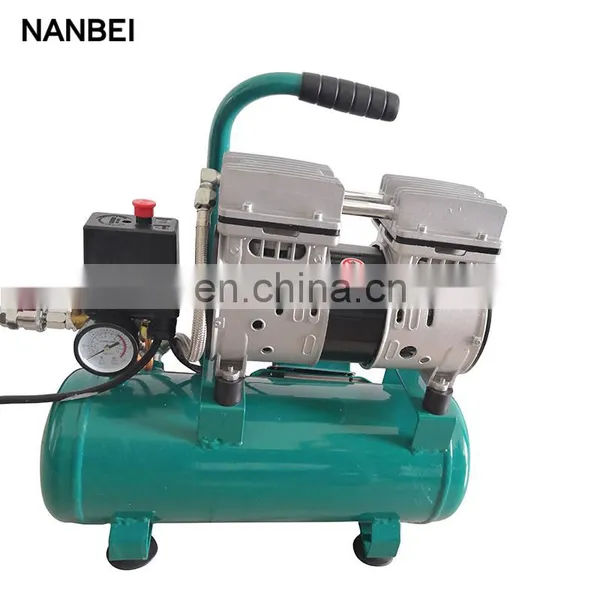

5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.
6 Inlet/outlet temperature is accurate controlled by PID.
7 The unit is self contained and supplied complete and ready for immediate operation

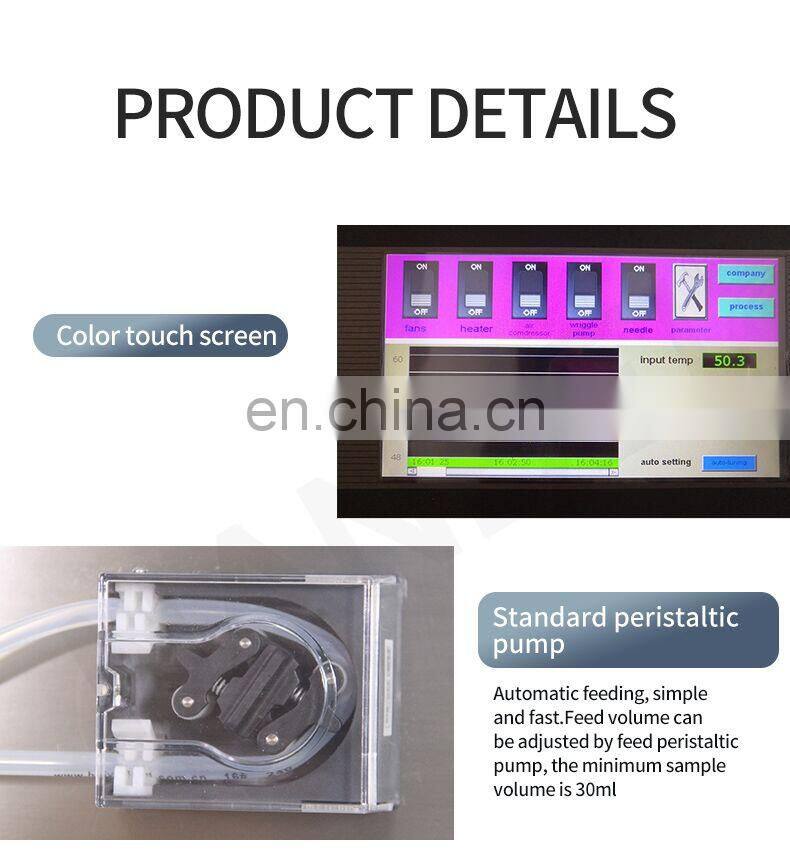

8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency
9 Product feeding with RS2559605 rotary pump, capacity is adjustable
10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled
More Details Photos
Specification
Model |
NSP-1500 |
Max capacity |
1500-2000ml/h |
Temperature range of Inlet air |
30℃ -280℃ |
Temperature range of outlet air |
40℃ -120℃ |
Precision of temperature |
± 1 ℃ |
Dryer time |
1.0-1.5 S |
Speed of squirmy pump |
30-2000ml/h, |
Consume of dryer air |
0-330m3 /h, max pressure: 686Pa |
Consume of spray air |
0-4.2m3 /h, spray pressure: 2-5bar |
Spray system |
2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
Spray direction |
downwards co-current |
Power |
3.5KW 220V |
Voltage |
220/240V-50/60HZ-13amps |
Dimensions |
650×500×1550 ( mm ) L x W x H |
Weight |
120kg |
Recommend Products
Packing & Delivery
Company Profile
Customer Concerns
FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
