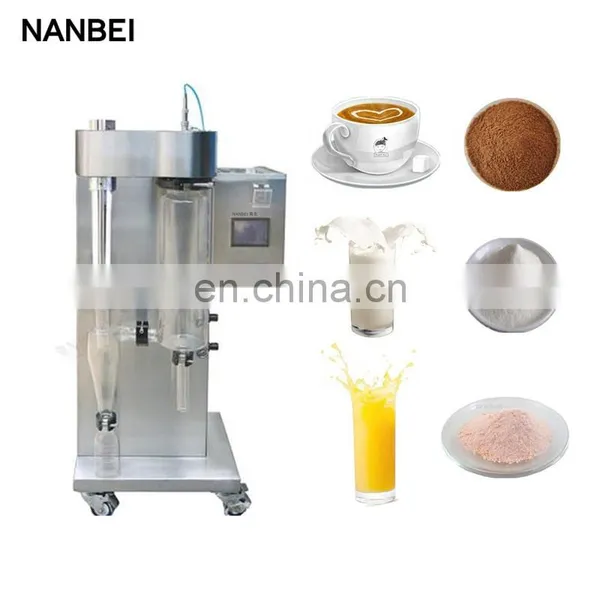

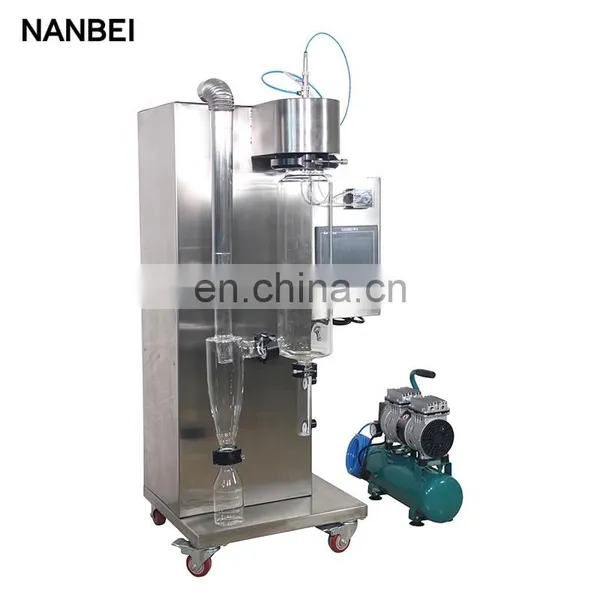

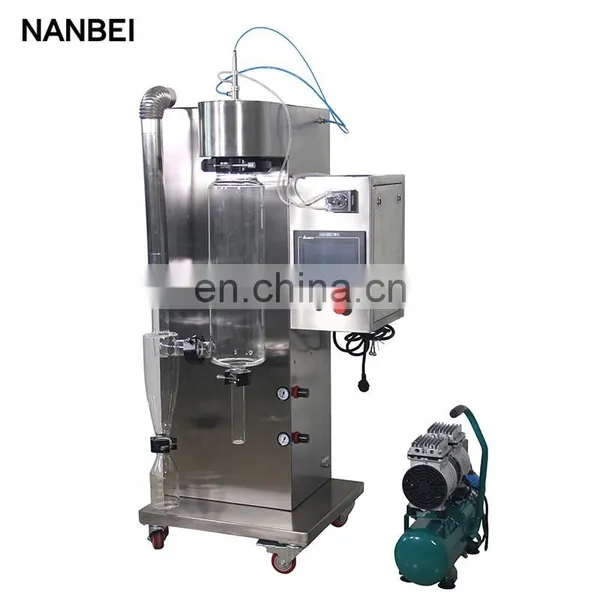

2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine

2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine thumbnail-1
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine thumbnail-2
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine thumbnail-3
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine thumbnail-4
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine thumbnail-5
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine photo-1
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine photo-2
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine photo-3
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine photo-4
2L/H Mini Coffee Milk Powder Lab Spray Dryer Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
2L/h mini spray dryer

Application: 1. Various fields where the production of a free powder sample is required 2. NSP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others. Features: 1 Special for lab research, min 20-30ml liquid to finish one test 2 All borosilicate glass for easy visual monitoring of process status 3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment 4 Easy to clean and very simple to assemble and break down 5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands. 6 Inlet/outlet temperature is accurate controlled by PID. 7 The unit is self contained and supplied complete and ready for immediate operation 8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency 9 Product feeding with RS2559605 rotary pump, capacity is adjustable 10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled
More Details Photos





High quality borosilicate glass collection bottle,easy to clean

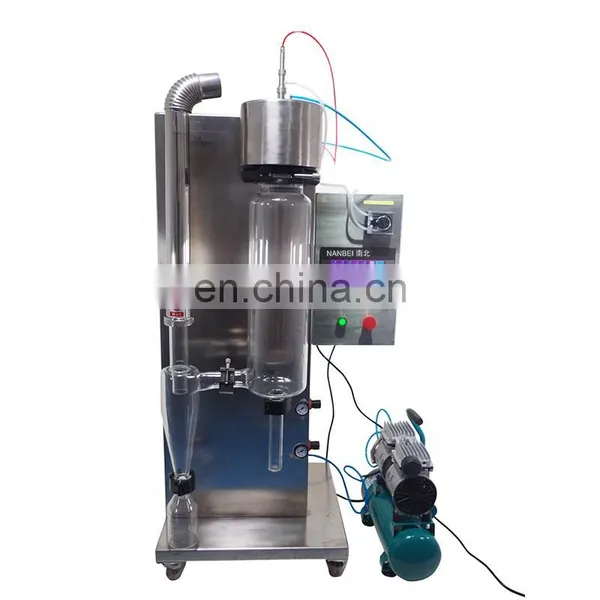

Standard external air compressor, good for heat dissipation,Oil free,No noise, good stability, no oil protection reject secondary pollution of products
Specification
Model
NSP-1500
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30℃ -280℃
Temperature range of outlet air
40℃ -120℃
Precision of temperature
± 1 ℃
Dryer time
1.0-1.5 S
Speed of squirmy pump
30-2000ml/h,
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction
downwards co-current
Power
3.5KW 220V
Voltage
220/240V-50/60HZ-13amps
Dimensions
650×500×1550 ( mm ) L x W x H
Weight
120kg
