Digital microplate orbital laboratory shaker incubator price
1.Feature and Description
Control Feature:
Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.
Structure Feature:
Sort: Microcomputer LCD type
Performance Feature:
1.P.I.D environmental scanning micro-processing controller and intelligentized audio and visual alarm,The large LCD screen clearly indicates the preset and real parameters.
2.The operating parameter locked by encryption prevents misoperation.7.Operating parameter memory function avoids monotonous operations
3.AC inductive long-life motor design, broad speed regulation, constant torque, constant speed of rotation, no carbon brush and maintenance free.
4.Over-temperature audio and visual alarming function can automatically cut off the power when the motor overheated, temperature out of control or abnormal temperature occurs.
5.Provided with power-off recovery function, the equipment can automatically recover to run according to the originally designed programs when the external power is recovered after a sudden cut off.
6.Wiring of the acceleration control ensures soft start, smooth acceleration and the security of samples.
7.The luxurious streamline mould involving aesthetic designing, static plastic-spraying case and large toughened glass window.

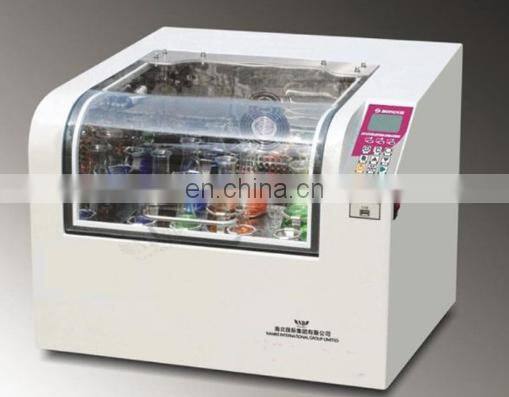

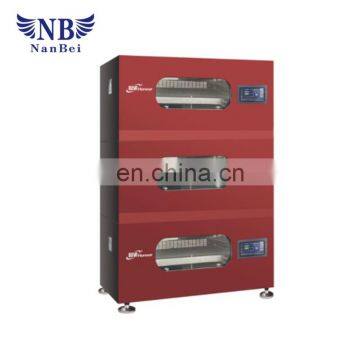

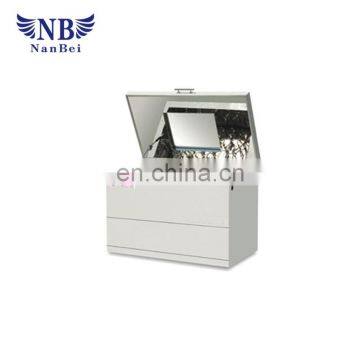

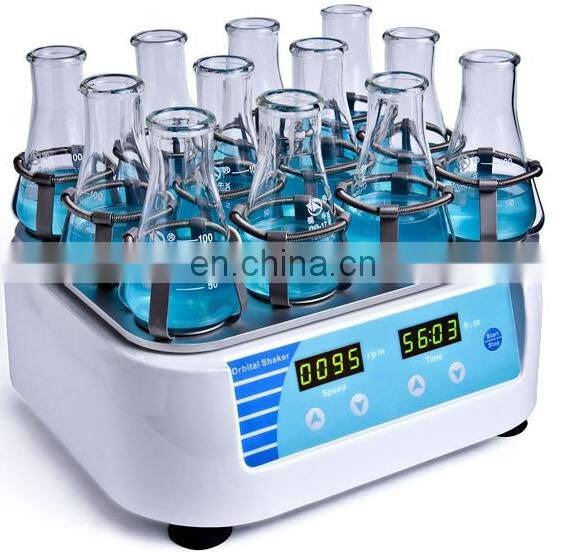

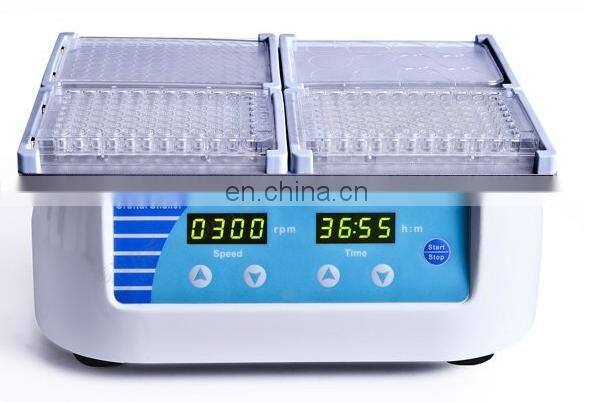

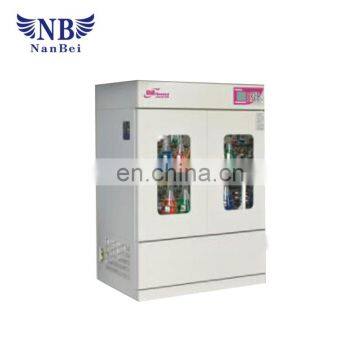

2.Picture for Our product
3.Usage and Application
This type of instrument is widely used in germ culture, ferment, hybridization, and research of biochemical reaction; enzyme and cellular tissue and all those require high temperature and oscillation frequency.
4.Technical data
Model |
NBY-209 |
NBY-100B |
NBY-100D |
NBY-200B |
NBY-200D |
Control mode |
P.I.D microcomputer processing chip |
||||
Convection mode |
Forced convection |
||||
Oscillation mode |
convolution |
||||
Display |
LED digital display |
LCD display |
|||
USB data download system |
No |
Yes |
|||
Cyclotron frequency range |
40-500rpm/min |
30-600rpm/min |
|||
Cyclotron frequency accuracy |
±1rpm |
||||
Shake plate shimmy range(mm) |
Ø26 |
Ø26 |
Ø0-50 |
Ø26 |
Ø0-50 |
Max configuration |
50ml*16/100ml*10/ 250ml*8 |
100ml*23/ 250ml*12/ 500ml*9/ 1000ml*5 |
|||
Standard configuration |
50ml*4/100ml*3/ 250ml*3 |
500ml*3 250ml*3 100ml*4 50ml*4 |
500ml*3 250ml*4 100ml*5 50ml*5 |
||
Pallet size(mm) |
220*280 |
450*410 |
410*360 |
450*410 |
410*360 |
Timing(h) |
0-166 |
0-999 |
|||
Temp.range(℃) |
10-60 |
Ambient temp.+5-60 |
4-60 |
||
Temp. accuracy(℃) |
±0.1 |
||||
Temp. uniformity(℃) |
≤0.5(37℃) |
||||
Temp. fluctuation(℃) |
≤0.2(37℃) |
||||
Pallet number |
1 |
||||
Size(mm) |
550*510*440 |
740*710*510 |
|||
Volume(L) |
26 |
70 |
|||
Power(w) |
300 |
550 |
650 |
650 |
650 |
Voltage |
AC220±10% 50-60HZ |
||||
Ambient temp. |
5-25 |
||||
5.Packing and Shipping
6.Related Product
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
1.Customer Photo
2.Transaction History
We are one of the leading laboratory shaker manufacturer in China. Many types are available. For more products information, or any problems, please no hesitation to contact us↓, we will reply you ASAP!
