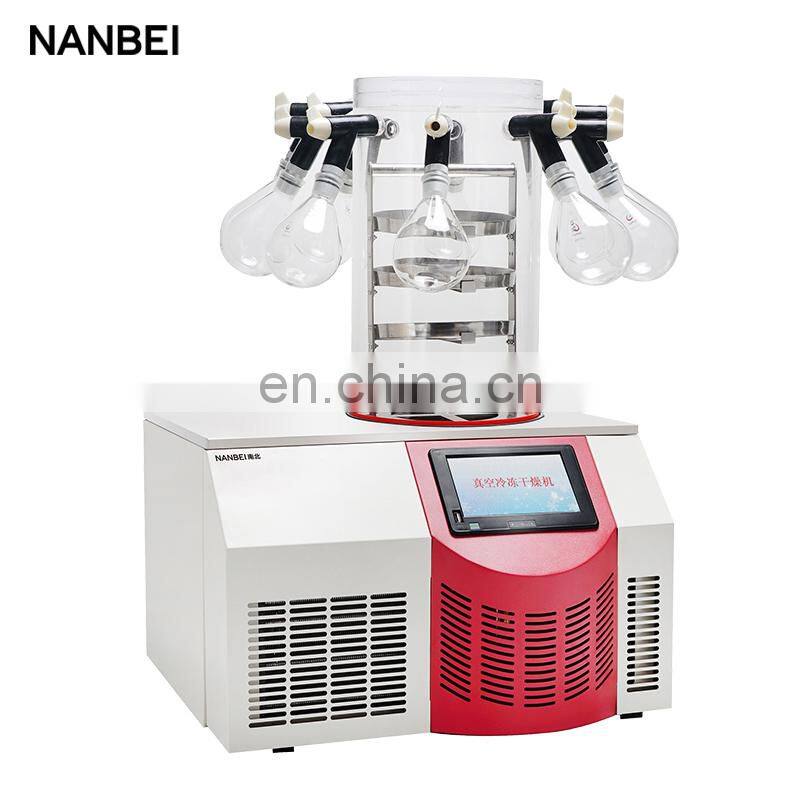

Pre-freezing function vacuum pilot lab commercial industrial freeze dryer for food
1.Feature and Description
If you want to buy a freeze dryer,here it is.LGJ-10/12/18 freeze dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.
1. Match the green environment protection of international standard.
2. Liquid crystal display, Chinese interface, display drying curve.
3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function
4. Imported compressor, high capability of water-capture, low noise.
5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying.
6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright
7. Transparent bell-cap drying room is safe and visual.
8. Stainless steel sample shelf, the space of common sample tray can be adjusted
9. Small volume, convenient operation.
10. Value with nitrogen is optional.

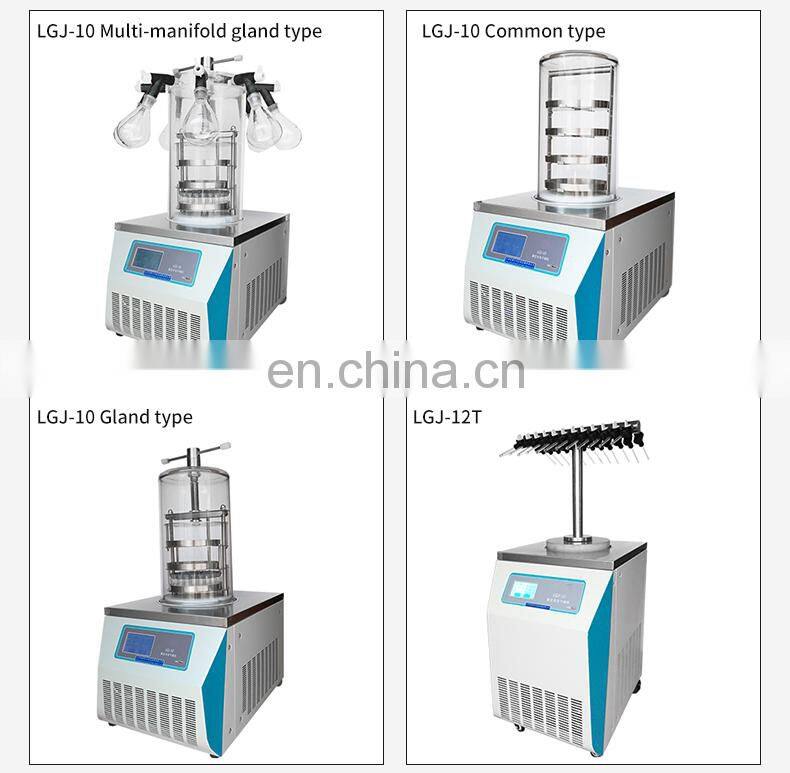

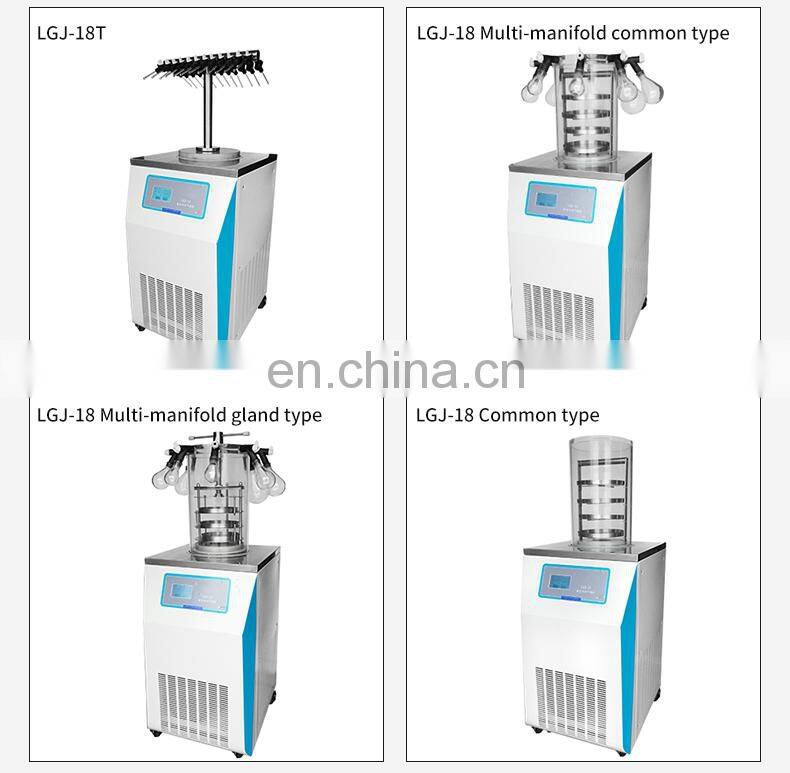

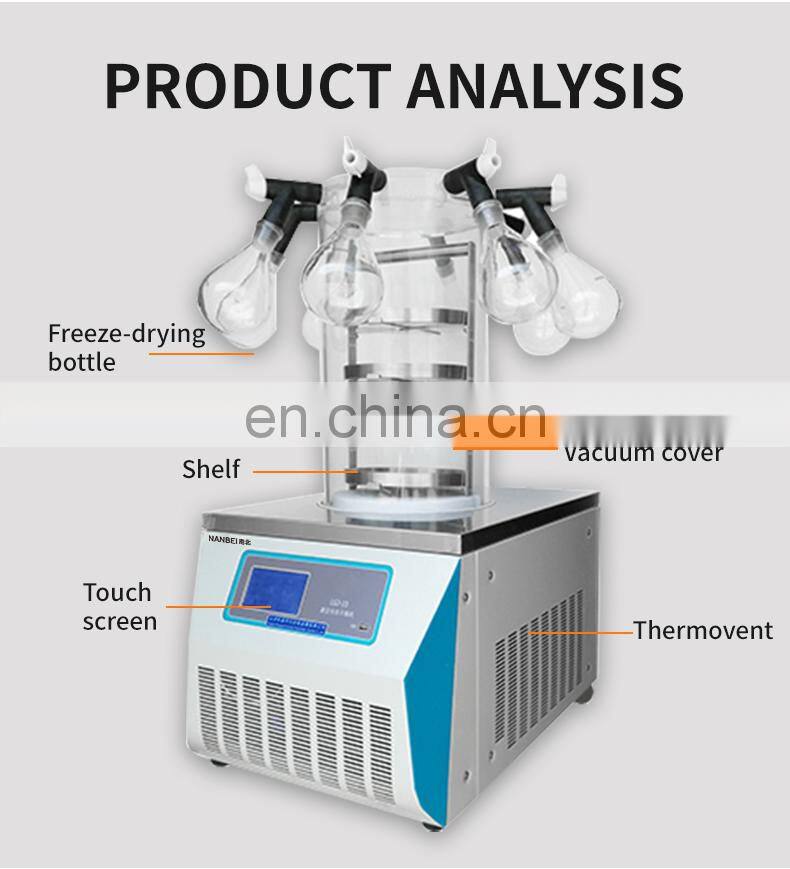

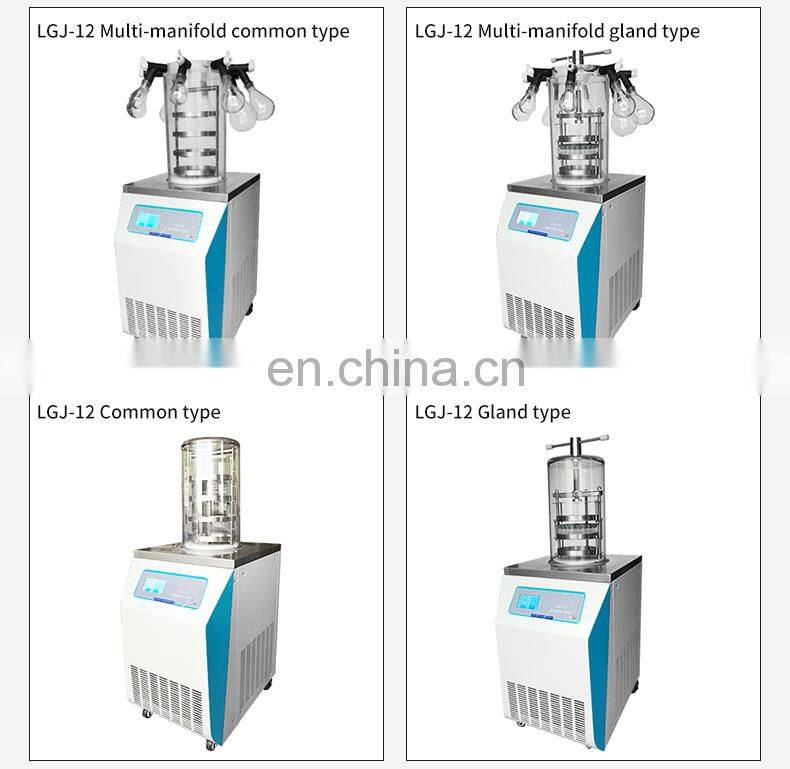

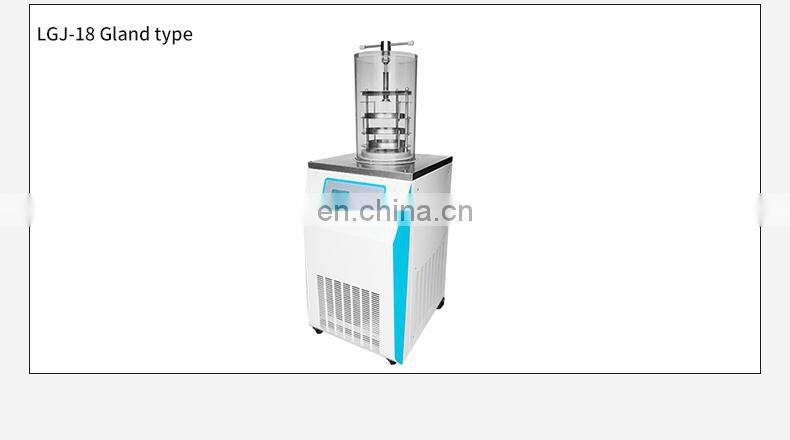

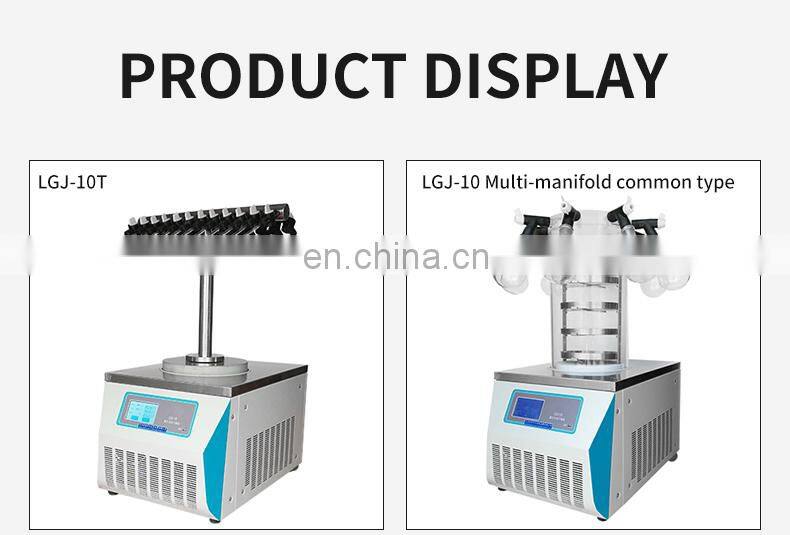

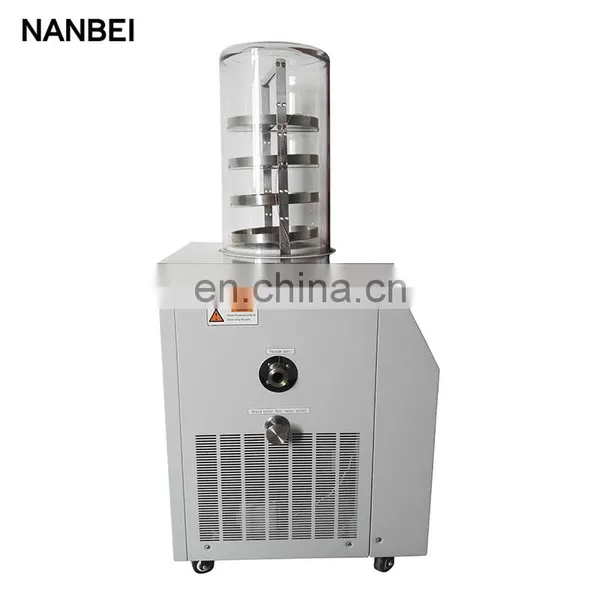

2.Picture for Our product
3.Usage and Application
The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.
4.Technical Data
|
Model |
Unit |
LGJ-10 |
LGJ-12 |
LGJ-18 |
|||
|
Specification |
|
Top-press |
Ordinary |
Top-press |
Ordinary |
Top-press |
Ordinary |
|
Freeze-drying area |
m² |
0.08 |
0.1 |
0.08 |
0.12 |
0.12 |
0.18-0.27 |
|
Cold trap temperature |
°C |
<-55 |
|||||
|
Vacuum degree |
Pa |
<10 |
|||||
|
Water-capture capacity |
Kg/24h |
3-4 |
3-4 |
6 |
|||
|
Material tray |
Mm |
180*3 |
200*4 |
180*3 |
200*4 |
200*3 |
240*4 |
|
Power |
W |
970 |
1070 |
1400 |
|||
|
Dimension |
Mm |
565*420*(360+430) |
560*460*(710+430) |
635*540*(970+430) |
|||
|
Material |
L |
0.7 |
1.2 |
0.7 |
1.2 |
0.9 |
1.8 |
|
12mm exiling bottle |
|
560 |
920 |
560 |
920 |
990 |
1320 |
|
16mm exiling bottle |
|
285 |
480 |
285 |
480 |
555 |
740 |
|
22mm exiling bottle |
|
165 |
260 |
165 |
260 |
270 |
360 |
Notice: The temperature of cold trap may reach -80C according to the user's needs.
|
|
|
|
