Medium sized lab chemical vacuum commercial freeze dryer machine

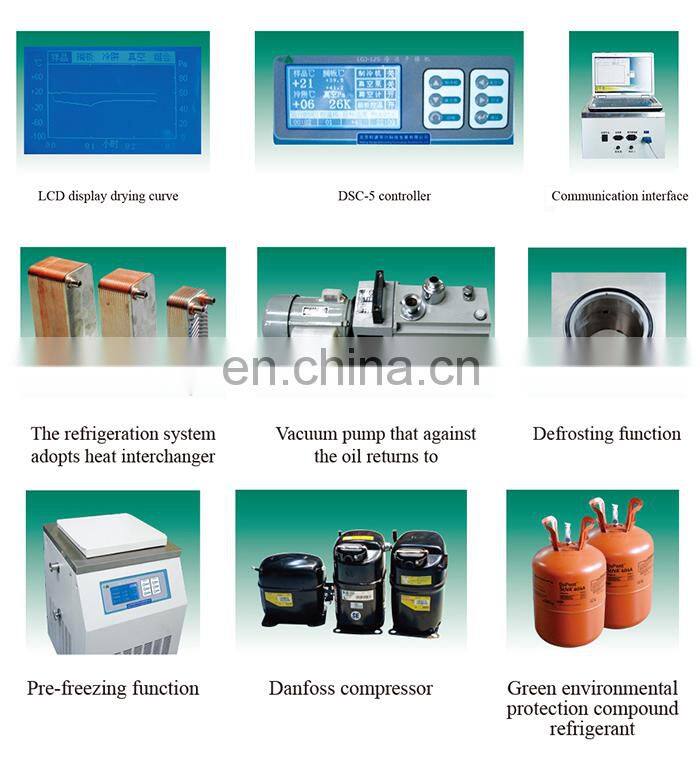

1.Feature and Description
- With electric heating shelf and PID control standard, with programmable function
- 16 programs can be stored, each program can be set up 32 segments
- With organic glass observation window, the whole process is easy to see
- LCD displays sample temperature curve, condenser temp. curve, shelf temp. Curve, vacuum degree curve and compound curves.
- Internal surface of rectangular chamber and product tray are constructed of stainless steel
- RS232 interface is optional, computer connected to display real-time freeze-drying curve
- Nitrogen valve is optional
- Eutectic point test device is optional

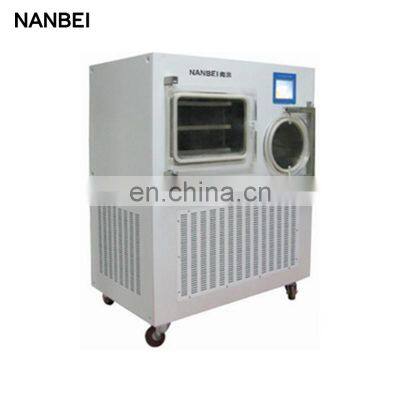

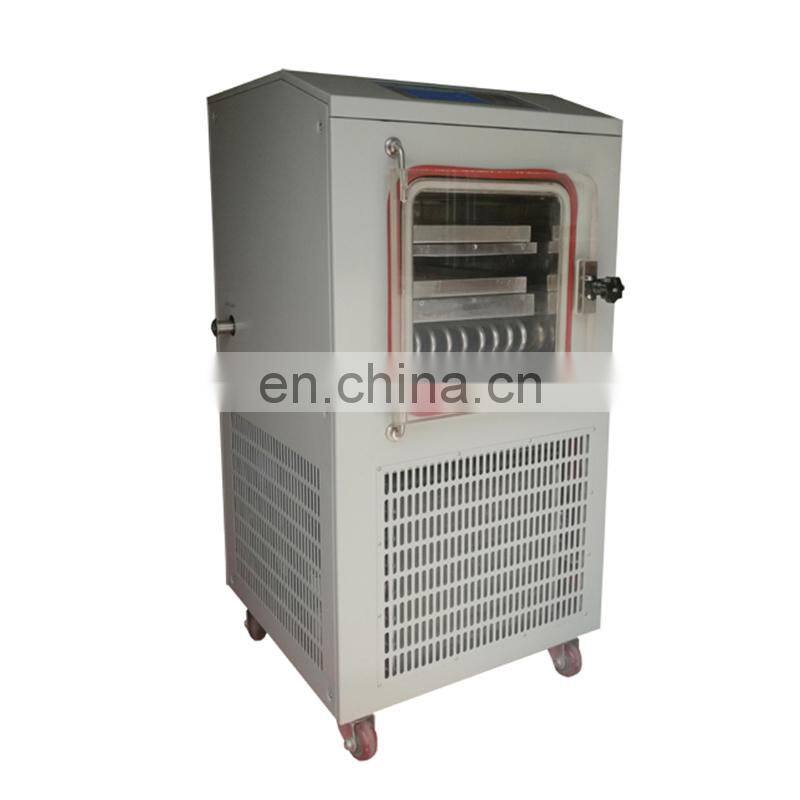

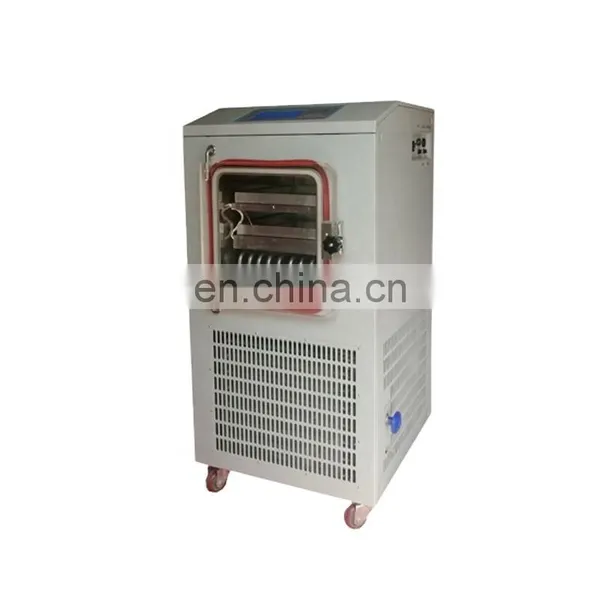

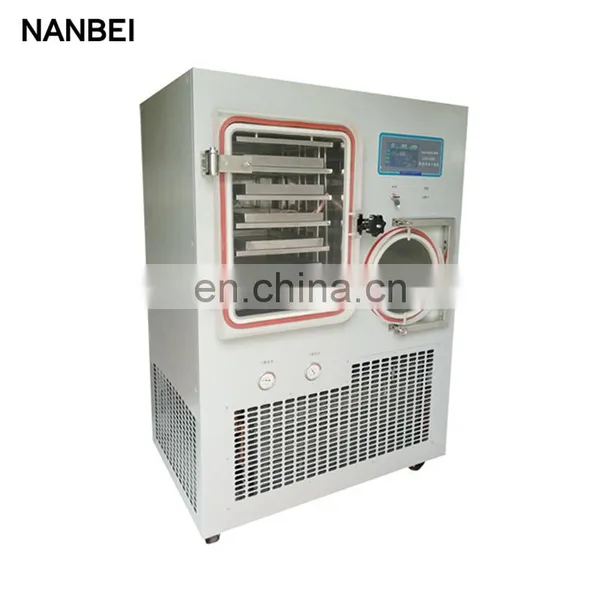

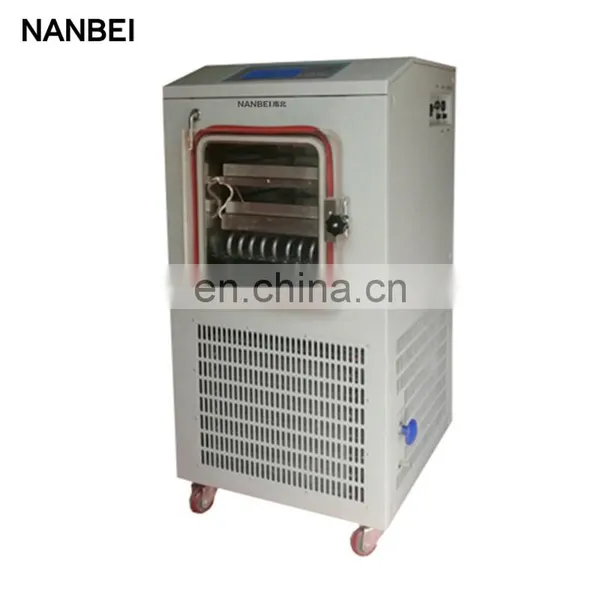

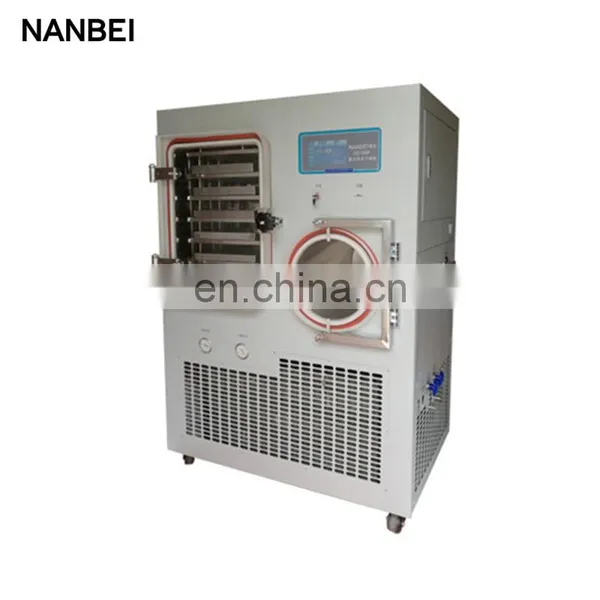

2.Picture for Our product
3.Usage and Application
This series is our patent products. This series of dryers have electric heating shelf. Freezing and drying process are finished in the same place. It changes traditional complicated operation and prevents the product from pollution.
4.Technical data
|
Model |
LGJ-10F (standard type) |
|
Drying area |
0.2 m2 |
|
shelf |
2 layers |
|
Shelf spacing |
70 mm |
|
Shelf size |
265x400x25 mm |
|
Condenser temperature |
Min.≤-55℃ (-80℃ optional ) |
|
Shelf temperature |
-50~+65℃ |
|
Bulk capacity |
2 Liter |
|
Vacuum degree |
≤10 Pa |
|
Condenser capacity |
3kg/24 hours |
|
Voltage |
220v ,50 Hz |
|
Cooling |
Air, draughty, ambient temperature≤25℃ |
|
Vial capacity Φ12mm |
1554 Pcs |
|
Vial capacity Φ16mm |
868 Pcs |
|
Vial capacity Φ22mm |
440 Pcs |
|
Style of press |
N/A |
|
Host Dimension |
605x610x1200 mm |
|
Host weight |
191kg |
|
Power |
1700W |
5.Packing and Shipping
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-Sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
