Steam generator of electricity with factory price
Design specification:
Manufacturing standards: strict implementation of national JB / T103932002 "electric heating boiler technology" standard design and manufacturing.
Features:
1, the unique design of the boiler water circulation in a very short period of time quickly and efficiently to achieve the set temperature and pressure, even in the replenishment process would not have temperature and pressure fluctuations.
2, the unique builtin steam moisture separator ensure ≤2%. This is different from the most significant features of other similar products3, electric and furnace with flange connection, which will help replace, repair and maintenance.
4, electric heating pipe can be set according to the number of electric heating segments to control, for example, 108KW electric heating boilers heating by the six 18KW tubes, it can be divided into three segments, 36KW to control. Users can independently regulate the use of steam power, in order to achieve more energy, more convenient purpose.
Safety performance:

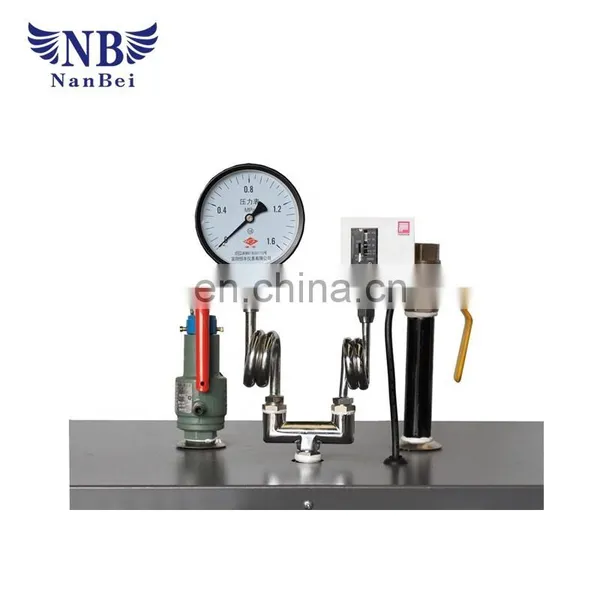

1. Products fitted with a safety valve by boiler inspection institute, even in the case where the control system is not flexible, when the pressure exceeds the set pressure, safety valve will open automatically to prevent the boiler explosion due to excessive pressure.
2,The product is equipped with low water protection, when water supply is stopped, the boiler will automatically stop working, to prevent the boiler dry electric heating element damage and even lead to burnout phenomenon.
3,The products contains leakage protection, even in the case of a short circuit caused by improper operation of the boiler, the boiler will drain automatically cut off the circuit, timely good control lines.
Operation:
1,The operating system of boiler is automatic controlling, the water tank connected to the boiler comes, boiler power is connected, just press the key, the boiler will run automatically
2,The detailed installation methods, operating procedures, maintenance and other information please contact us or to our website, Download "automatic electric heating steam boiler operating instructions."
Uses:
School biological laboratory, washing equipment (drycleaning machines, washing machines, ironing machine, iron, etc.), biological equipment (reactor, fermentation, sterilization tank), packaging machinery equipment (hotels, hostels, Schools, mixing station), hot water supply, canteen steamed rice, food sterilization, legumes food processing, maintenance and other concrete surfaces.
|
Parameters |
||||||||
|
Model |
Dimension |
Power |
Evaporation capacity (Kg) |
Temperature (℃) |
Voltage |
Pressure (Mpa) |
Water volume (Kg) |
Steam pipe diameter (mm) |
|
ND-6KW |
735*470*920 |
6 |
10 |
151/170 |
380 |
0.4/0.7 |
16 |
DN15 |
|
ND-9KW |
735*470*920 |
9 |
16 |
151/170 |
380 |
0.4/0.7 |
16 |
DN15 |
|
ND-12KW |
755*490*950 |
12 |
22 |
151/170 |
380 |
0.4/0.7 |
20 |
DN15 |
|
ND-18KW |
755*490*950 |
18 |
33 |
151/170 |
380 |
0.4/0.7 |
20 |
DN15 |
|
ND-24KW |
800*575*970 |
24 |
40 |
151/170 |
380 |
0.4/0.7 |
24 |
DN15 |
|
NB-36 |
800*575*970 |
36 |
48 |
151/170 |
380 |
0.4/0.7 |
24 |
DN15 |
|
ND-48KW |
845*575*1130 |
48 |
66 |
151/170 |
380 |
0.4/0.7 |
29 |
DN15 |
|
ND-72KW |
845*575*1130 |
72 |
102 |
151/170 |
380 |
0.4/0.7 |
29 |
DN15 |
Pre-sale service
- 24hours online to ensure quick response to customers' inquiry or online message;
- Guide customers to choose the best suitable machine model;
- Offer detailed specification and competitive prices;
Contract execution
- Machine production will be arranged strictly according to the contract;
- Machine photos will be sent to you for inspection during production;
- Send customs clearance documents by DHL;
- Update latest news after delivery and prepare customs clearance;
After-sale service
- 12 months warranty except for wear parts;
- Broken spare parts (except for wear parts) will be sent for free due to quality problems;
- In time response to customers technical problems;
- New products update for customers' reference
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
