Road Signs Retroreflectometer Retroreflective Luminous Tester for Road Marking
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Road Marking Reflection Measuring Instrument Retro-reflective Electronic SensorNegotiableMOQ: 1 -
Portable Rechargeable Battery-powered Precision Retroreflectometer for Road MarkingNegotiableMOQ: 1
-
Retroreflectometer for Quality of Road Marking and Road Sign BoardNegotiableMOQ: 1
-
Professional Level Portable Handheld Retroreflectometer for RL and QdNegotiableMOQ: 1
-
Horizontal Retroreflectometer Road Marking Reflecting Measuring Instrument RetroreflectometerNegotiableMOQ: 1
Our Advantages
Product Description
MAR9
multi-angle retroreflective coefficient tester is a portable testing equipment that is professionally used to measure the retroreflective optical characteristics of various reflective safety materials. It is widely used in various road traffic reflective products, vehicle safety reflective products, and safety production signs, On-site inspection and inspection of reflective cloth, etc.
Main features
* Advanced optical measurement system
* Anti-scratch full metal shell
* Magnetic calibration method, more convenient
* Support the measurement of retroreflective coefficient at up to 12 angles
* 4.3-inch high-brightness LCD capacitive touch screen displays measurement data
* Parameters can be preset to display system information such as date, time, testing location, testing organization, license plate/road name, testing personnel, etc.,
* Support real-time display of on-site temperature and humidity
* Automatically verify zero setting and adjust measurement standards
* Using the soft keyboard method to input Chinese characters, English and characters can store inspection records, and can inquire in detail at any time
* Smart standby management, turn off the screen display when there is no operation, and the system sleeps
* Support multiple measurements to calculate the average value;
* Support 16G SD card data storage, and support data storage in Excel form, export to computer through U disk function;
* Low illumination, high sensitivity photoelectric measuring device assembly
* High-precision, high-stability analog data acquisition and A/D conversion circuit
* Low power consumption, high reliability main control unit and computing system
* Support WIFI or Bluetooth data transmission function; (optional)
* Support Bluetooth printing function, can print test data on site (optional);
* Support GPS positioning function (optional)
* Advanced optical measurement system
* Anti-scratch full metal shell
* Magnetic calibration method, more convenient
* Support the measurement of retroreflective coefficient at up to 12 angles
* 4.3-inch high-brightness LCD capacitive touch screen displays measurement data
* Parameters can be preset to display system information such as date, time, testing location, testing organization, license plate/road name, testing personnel, etc.,
* Support real-time display of on-site temperature and humidity
* Automatically verify zero setting and adjust measurement standards
* Using the soft keyboard method to input Chinese characters, English and characters can store inspection records, and can inquire in detail at any time
* Smart standby management, turn off the screen display when there is no operation, and the system sleeps
* Support multiple measurements to calculate the average value;
* Support 16G SD card data storage, and support data storage in Excel form, export to computer through U disk function;
* Low illumination, high sensitivity photoelectric measuring device assembly
* High-precision, high-stability analog data acquisition and A/D conversion circuit
* Low power consumption, high reliability main control unit and computing system
* Support WIFI or Bluetooth data transmission function; (optional)
* Support Bluetooth printing function, can print test data on site (optional);
* Support GPS positioning function (optional)

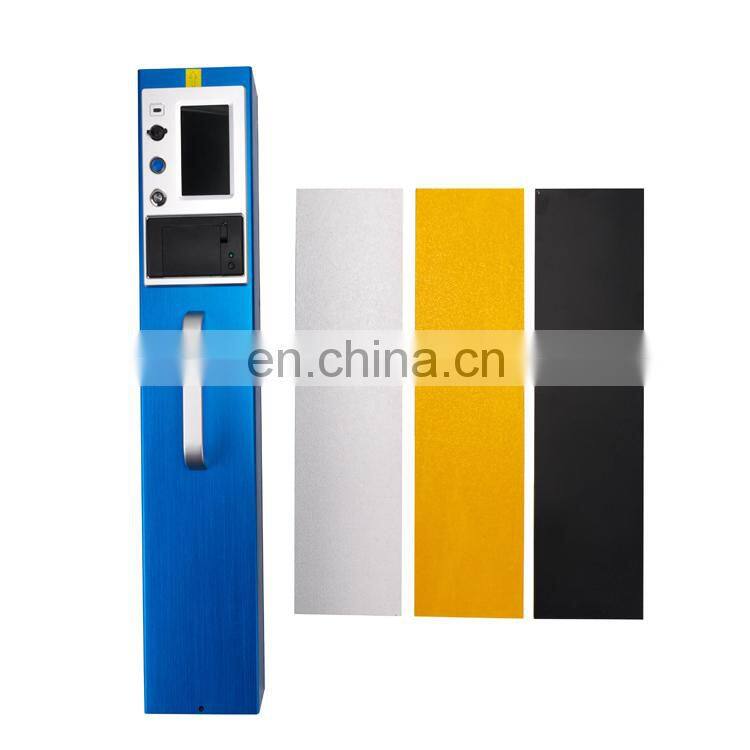

RM1
The Retroreflectance measuring instrument is a portable field measuring instrument, which can simulate the road marking brightness visible to the driver under the headlamp illumination of motor vehicle at night. The measured parameter is the luminous Retroreflectance coefficient at night, i.e. RL value, in mcd·m-2·lx-1. It is used to measure the retroreflection characteristics of road markings. It is suitable for laboratory environment and field measurement. Road marking manufacturers, road marking process construction units and road quality supervision units are used to measure the retroreflective performance of road
markings.
markings.
Main technical parameters
* Measurement items: retroreflective coefficient mcd.m-2.lx-1
* Measurement range: 0---4000
* Observation angle: 1.05°
* Angle of incidence: 88.76°, Complementary angle is 1.24°
* Light source color temperature: 2856±50K
* Measuring aperture area: 340mm x 95mm
* Error of repeatability measurement: ≤3%
* Continuous working time of battery: >72h
* Data storage space: 8GB
* Built-in battery capacity: 13Ah
* Charger: DC 8.4V
* Ambient temperature: -15℃~+60℃
* Ambient humidity: <98%, no frost
* Measurement items: retroreflective coefficient mcd.m-2.lx-1
* Measurement range: 0---4000
* Observation angle: 1.05°
* Angle of incidence: 88.76°, Complementary angle is 1.24°
* Light source color temperature: 2856±50K
* Measuring aperture area: 340mm x 95mm
* Error of repeatability measurement: ≤3%
* Continuous working time of battery: >72h
* Data storage space: 8GB
* Built-in battery capacity: 13Ah
* Charger: DC 8.4V
* Ambient temperature: -15℃~+60℃
* Ambient humidity: <98%, no frost
* Instrument size: 700mm x 135mm x 115mm

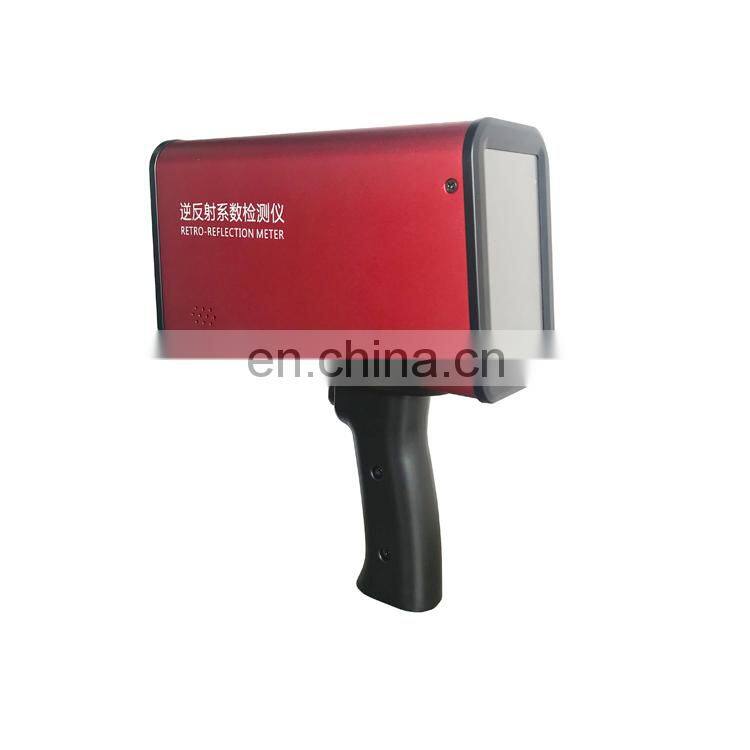

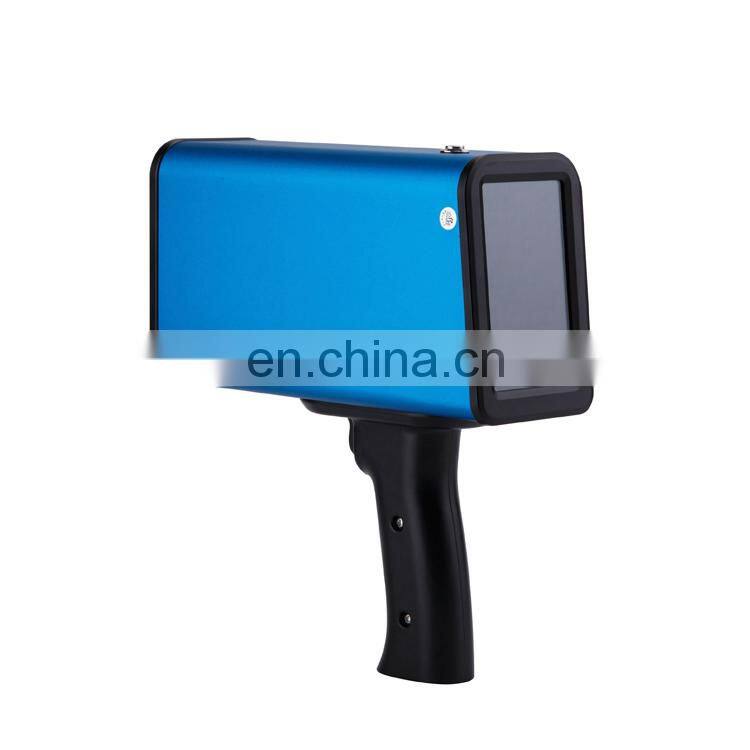

Sign reflective measuring instrument is a new type of portable traffic safety detection equipment, which is used to measure the reflective optical characteristics of various reflective safety signs, and can be used for on-site detection of traffic reflective products and vehicle safety reflective products.
Main technical parameters
* Measurement items: retroreflective coefficient cd .lx-1 .m-2
* Measurement range: 0---1999.9
* Observation angle: 0.2°
* Angle of incidence: -4°
* Light source color temperature: 2856±50K (Standard illuminant A)
* Testing spot diameter: 32mm
* Error of repeatability measurement: ≤2%
* Error of reproducibility measurement: ≤3%
* Continuous working time of battery: >8h
* Data storage space: 8GB
* Built-in battery capacity: 3500mAh
* Charger: DC 8.4V
* Ambient temperature: -5℃~+50℃
* Ambient humidity: <98%, no frost
* Instrument size: 220mm × 250mm × 80mm (L×H×W)
* Weight: 1.7kg
* Measurement items: retroreflective coefficient cd .lx-1 .m-2
* Measurement range: 0---1999.9
* Observation angle: 0.2°
* Angle of incidence: -4°
* Light source color temperature: 2856±50K (Standard illuminant A)
* Testing spot diameter: 32mm
* Error of repeatability measurement: ≤2%
* Error of reproducibility measurement: ≤3%
* Continuous working time of battery: >8h
* Data storage space: 8GB
* Built-in battery capacity: 3500mAh
* Charger: DC 8.4V
* Ambient temperature: -5℃~+50℃
* Ambient humidity: <98%, no frost
* Instrument size: 220mm × 250mm × 80mm (L×H×W)
* Weight: 1.7kg
Specification
item |
value |
Warranty |
1 years |
Customized support |
OEM |
Place of Origin |
Hebei, China |
Brand Name |
iwin |
Model Number |
iwin-rfm |
Power |
Electronic |
Measurement range |
0-1999.9 |
Observation angle |
0.2° |
Testing spot diameter |
32mm |
Data storage space |
8GB |
Built-in battery capacity |
3500mAh |
Ambient temperature |
-5℃~+50℃ |
Ambient humidity |
<98%, no frost |
Angle of incidence |
-4° |
Keyword |
Retroreflectometer |
