Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer

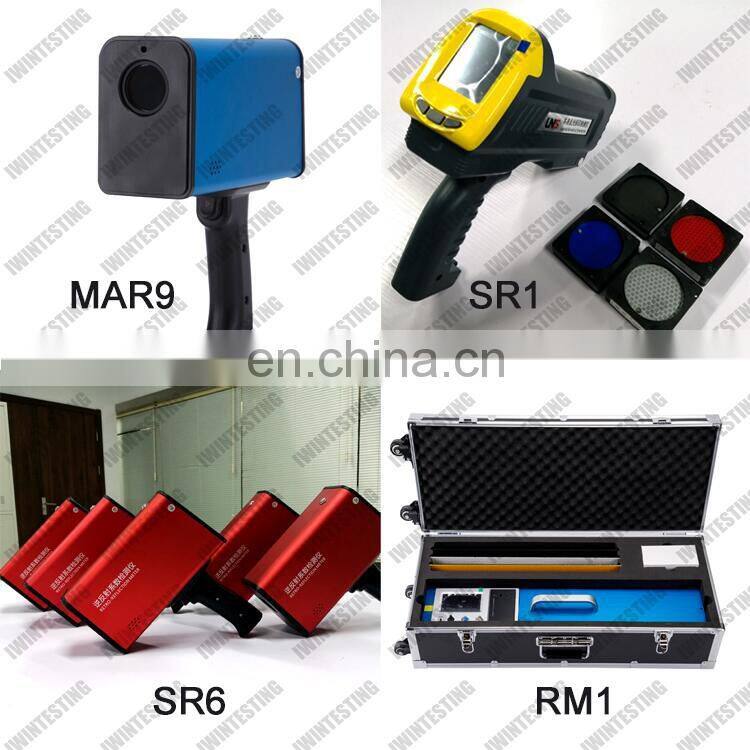

MAR9 multi-angle retroreflective coefficient tester is a portable testing equipment that is professionally used to measure the
retroreflective optical characteristics of various reflective safety materials. It is widely used in various road traffic
reflective products, vehicle safety reflective products, and safety production signs, On-site inspection and inspection of
reflective cloth, etc.

Main features
* Advanced optical measurement system
* Anti-scratch full metal shell
* Magnetic calibration method, more convenient
* Support the measurement of retroreflective coefficient at up to 12 angles
* 4.3-inch high-brightness LCD capacitive touch screen displays measurement data
* Parameters can be preset to display system information such as date, time, testing location, testing organization, license
plate/road name, testing personnel, etc.,
* Support real-time display of on-site temperature and humidity
* Automatically verify zero setting and adjust measurement standards
* Using the soft keyboard method to input Chinese characters, English and characters can store inspection records, and can inquire in detail at any time
* Smart standby management, turn off the screen display when there is no operation, and the system sleeps
* Support multiple measurements to calculate the average value;
* Support 16G SD card data storage, and support data storage in Excel form, export to computer through U disk function;
* Low illumination, high sensitivity photoelectric measuring device assembly
* High-precision, high-stability analog data acquisition and A/D conversion circuit
* Low power consumption, high reliability main control unit and computing system
* Support WIFI or Bluetooth data transmission function; (optional)
* Support Bluetooth printing function, can print test data on site (optional);
* Support GPS positioning function (optional)

RM1 The Retroreflectance measuring instrument is a portable field measuring instrument, which can simulate the road marking
brightness visible to the driver under the headlamp illumination of motor vehicle at night. The measured parameter is the luminous
Retroreflectance coefficient at night, i.e. RL value, in mcd·m-2·lx-1. It is used to measure the retroreflection characteristics
of road markings. It is suitable for laboratory environment and field measurement. Road marking manufacturers, road marking
process construction units and road quality supervision units are used to measure the retroreflective performance of road
markings.

Main technical parameters
* Measurement items: retroreflective coefficient mcd.m-2.lx-1
* Measurement range: 0---4000
* Observation angle: 1.05°
* Angle of incidence: 88.76°, Complementary angle is 1.24°
* Light source color temperature: 2856±50K
* Measuring aperture area: 340mm x 95mm
* Error of repeatability measurement: ≤3%
* Continuous working time of battery: >72h
* Data storage space: 8GB
* Built-in battery capacity: 13Ah
* Charger: DC 8.4V
* Ambient temperature: -15℃~+60℃
* Ambient humidity: <98%, no frost
* Instrument size: 700mm x 135mm x 115mm
