12V Automotive Car Battery Tester LCD Digital Test Analyzer Auto System Analyzer Alternator Cranking Check All-sun GK503
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pocket Battery Voltage Tester 1.5/9V AA/AAA/C/D Button Cell Tester High QualityNegotiableMOQ: 1 -
Allosun EM577 12V Digital Car Battery Tester 12V Digital Battery Analyzer CCA Tester Cold Temp Battery Load Charging TesterNegotiableMOQ: 1
-
Allsun BT21 9V AAA AA Electronic Device Battery Tester Check Output Voltage With LED Display Batteries Voltage TesterNegotiableMOQ: 1
-
All-sun BT20 Hot Sale Household Digital Battery Tester 1.5V 9V AAA AA C D Battery Capacity Tool in Pocket SizeNegotiableMOQ: 1
-
All-sun BT6 3 in 1 Tester ---battery\\bulbs\\fuse TesterNegotiableMOQ: 1
Product Description

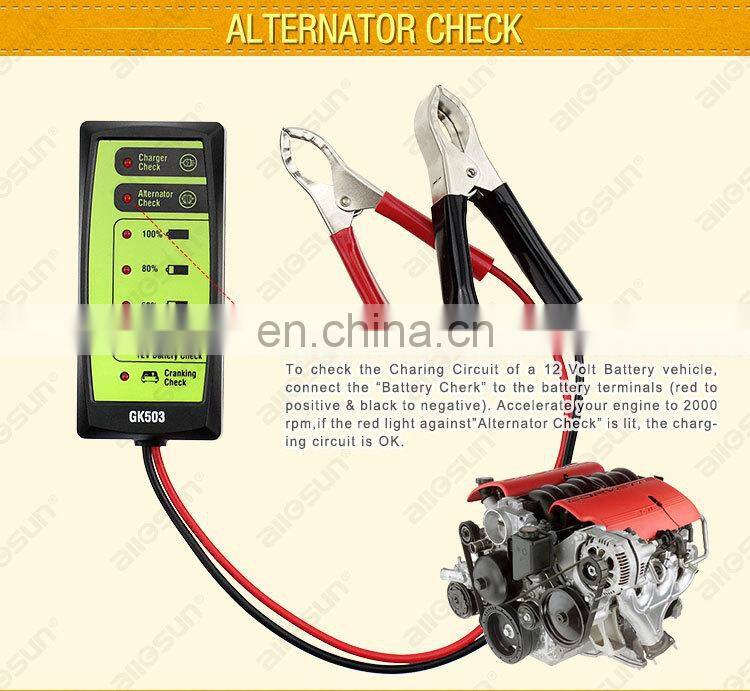

Alternator Check
To check the charging circuit of a 12V vehicle battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the vehicle battery, and
connect the black clip of the tester to the negative terminal of the vehicle battery. Accelerate your engine to 2000 rpm. If the red light against " Alternator
Check " is lit, the charging circuit is OK.

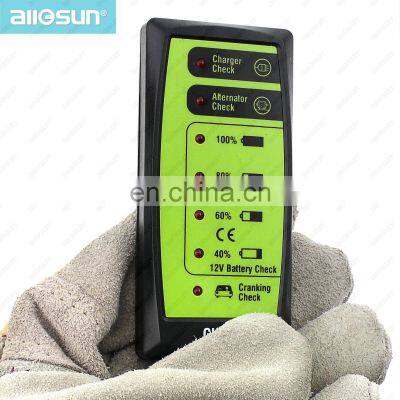

Battery Check
An accurate indication of a battery's charge level will be possible only if the battery has not been charged or discharged for at least 30 minutes. To
check the charge level of a 12V battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the battery, and connect the black
clip of the tester to the negative terminal of the battery. If none of the red lights are lit, check the connections of the tester to the battery. The red lights
will indicate the approximate charge level of the battery.

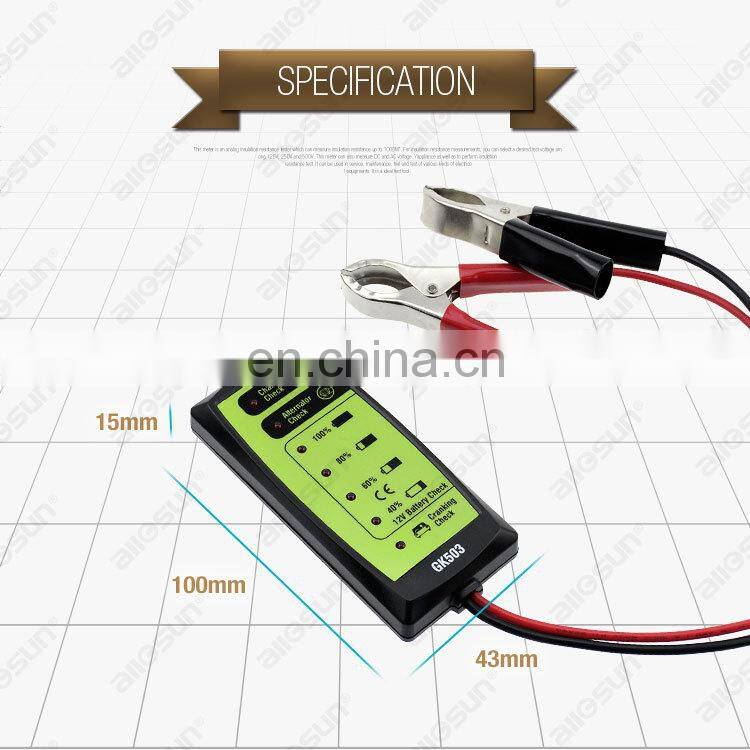

SPECIFICATION
Operating Environment: temperature: 0°C ~ 40°C
relative humidity: < 75%
Storage Environment: temperature: -10°C~ 50°C
relative humidity: < 85%
Size: 102×46×16mm ( main body only )
Weight: About 73g ( GK503 only )
About 43g ( GK503A only )
WARNING
1. Before use, inspect the tester. Do not use the tester if it is damaged.
2. Before use, verify the tester's operation by testing a known 12V battery.
3. Always follow the relevant instructions and procedures indicated in the vehicle's users manual and service manual.
4. Do not use the tester where explosive gas, vapor, or dust is present.
5. To avoid personal injury and tester damage, do not touch any moving or turning object of vehicle.
Do not touch any high-temperature object with hand or skin.
6. To avoid electric shock, don't touch any naked conductor with hand or skin.
7. Use caution when working with voltage above 30V ac rms, 42V peak, or 60V dc. Such voltages pose a shock hazard.
