all-sun EM281 Mini 12V-24V Automotive Battery Tester LCD Bar Indication Battery Load Tester Electrical Battery Analyzer
Item Describtion
1.Specification
* Size: 132*48*31mm
* Weight: about 54g
* Display: LCD
* Application: measuring 12V or 24V automotive storage battery
* Operation Temperature: 0°C ~ 40°C, relative humidity < 75%
* Storage Temperature: -10°C ~ 50°C, relative humidity < 85%
2.Package
* 1 x Instuction Manual
* 1 x Item EM281
* 1 x Plastic Package
3.Operation Instruction

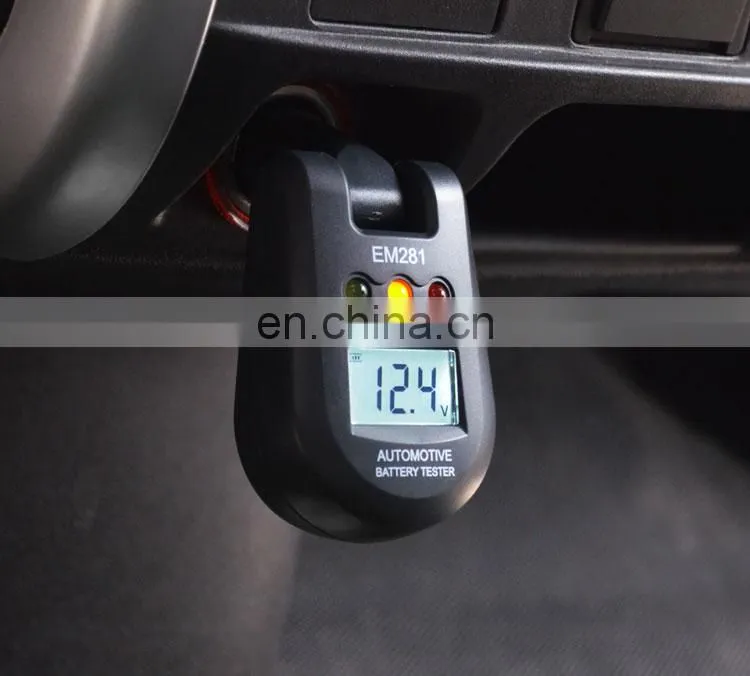

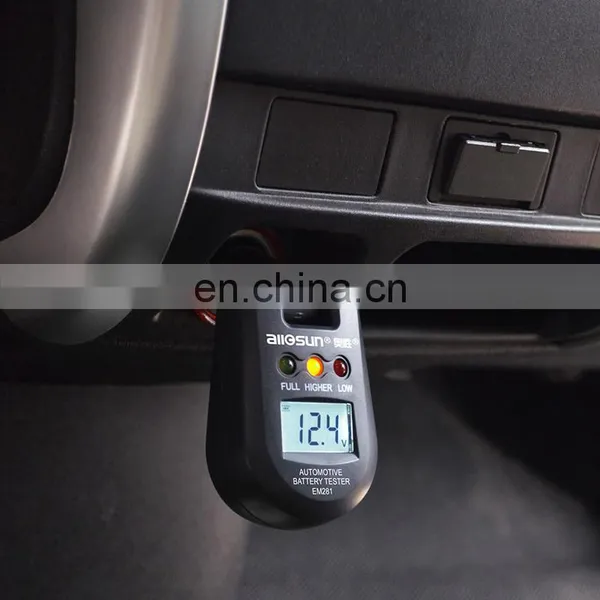

*Insert the plug of the instrument to the cigarette lighter socket, read the reading
on the display, and observe the LED indication as well as the bar indication
in the battery icon.
*By referring the following table, you can determine the charge level of the automotive
storage battery.

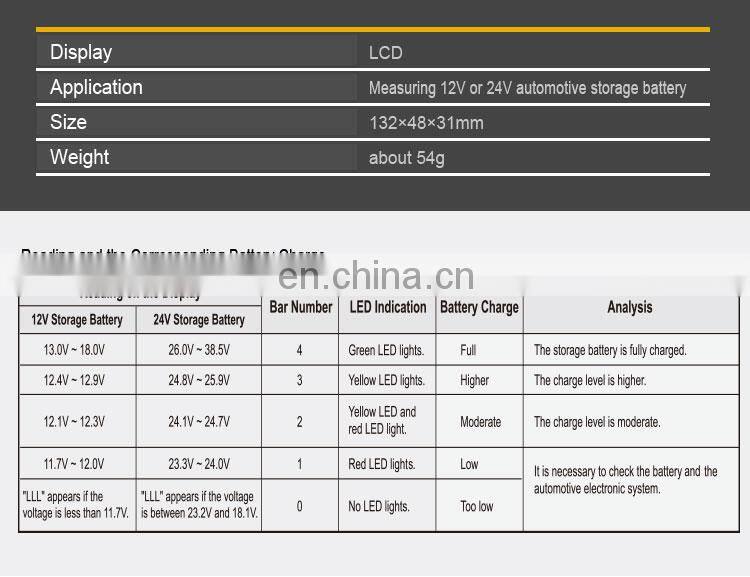

*Reading and the Corresponding Battery Charge
|
Reading on the Display |
Bar NO. |
LED Indication |
Battery Charge |
Analysis |
|
|
12V Storage Battery |
24V Storage Battery |
||||
|
13.0V ~ 18.0V |
26.0V ~ 38.5V |
4 |
Green LED lights |
Full |
The storage battery is fully charged |
|
12.4V ~ 12.9V |
24.8V ~ 25.9V |
3 |
Yellow LED lights. |
Higher |
The charge level is higher. |
|
12.1V ~ 12.3V |
24.1V ~ 24.7V |
2 |
Yellow LED and |
Moderate |
The charge level is moderate |
|
11.7V ~ 12.0V |
23.3V ~ 24.0V |
1 |
Red LED lights. |
Low |
It is necessary to check the battery and the |
|
"LLL" appears if the |
"LLL" appears if the voltage |
0 |
No LED lights |
Too low |
|
Note: If the battery voltage is more than 38.5V, the display will show the overrange indicator " EEE " and you should ask a qualified technician to check the battery and the automotive electronic system.
Q: Are you factory manufacturer or trading company?
A: We are manufacturer, our factory--Eastern Intelligent Meter established on 1993, focus on test and inspection instrument. We have a better price than trading company.
