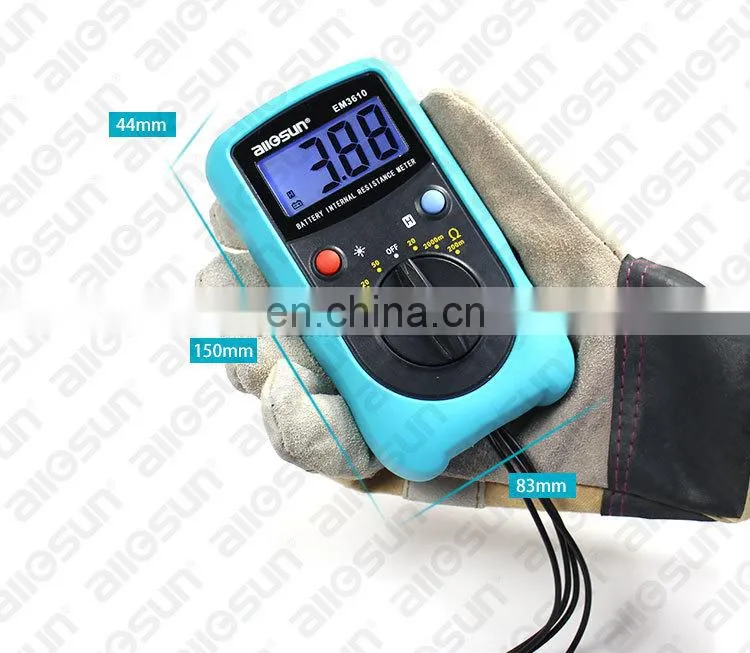

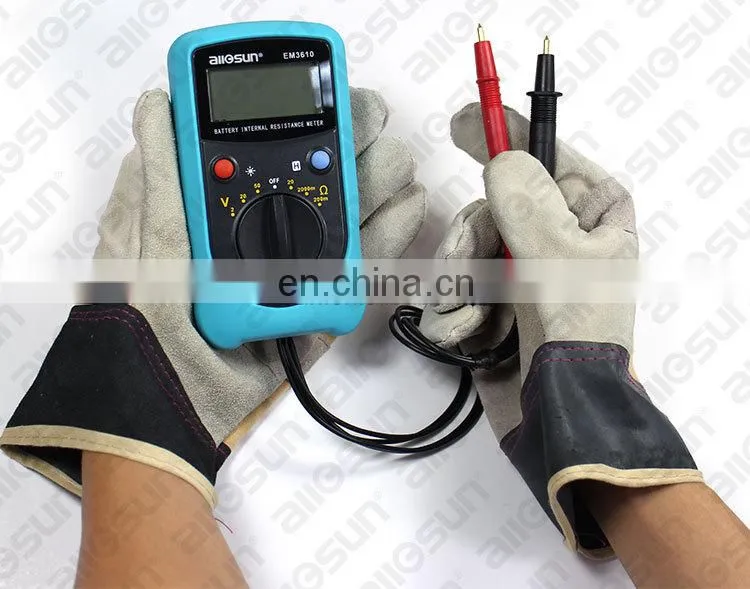

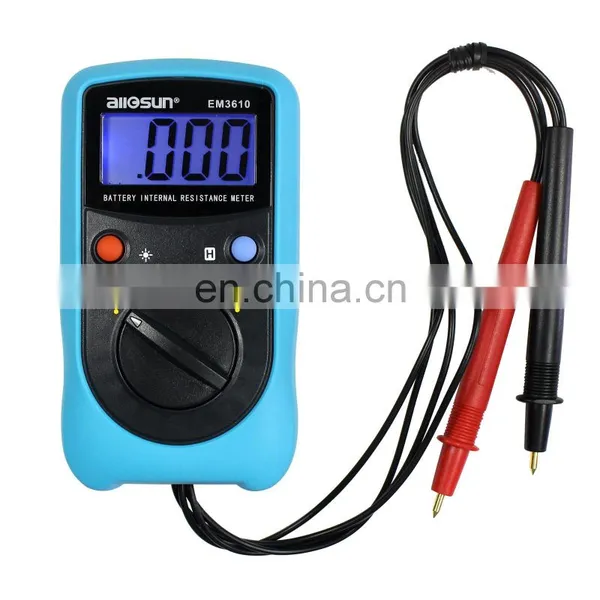

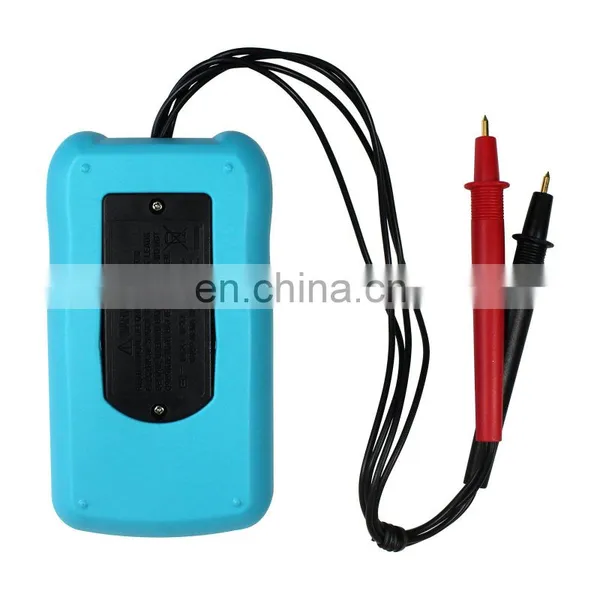

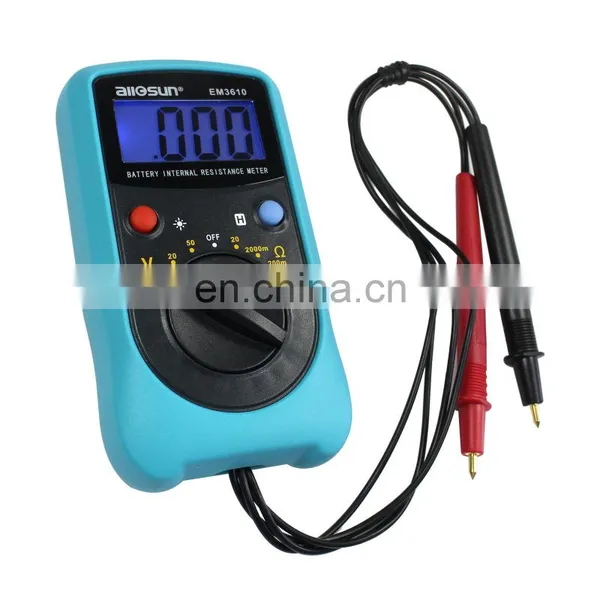

Help CenterAll-sun EM3610 Battery Internal Resistance Tester Meter Battery Voltage Temperature Coefficient Automotive Tester
Related Products
-
12V Automotive Car Battery Tester LCD Digital Test Analyzer Auto System Analyzer Alternator Cranking Check All-sun GK503NegotiableMOQ: 1 -
Pocket Battery Voltage Tester 1.5/9V AA/AAA/C/D Button Cell Tester High QualityNegotiableMOQ: 1
-
Allosun EM577 12V Digital Car Battery Tester 12V Digital Battery Analyzer CCA Tester Cold Temp Battery Load Charging TesterNegotiableMOQ: 1
-
Allsun BT21 9V AAA AA Electronic Device Battery Tester Check Output Voltage With LED Display Batteries Voltage TesterNegotiableMOQ: 1
-
All-sun BT20 Hot Sale Household Digital Battery Tester 1.5V 9V AAA AA C D Battery Capacity Tool in Pocket SizeNegotiableMOQ: 1

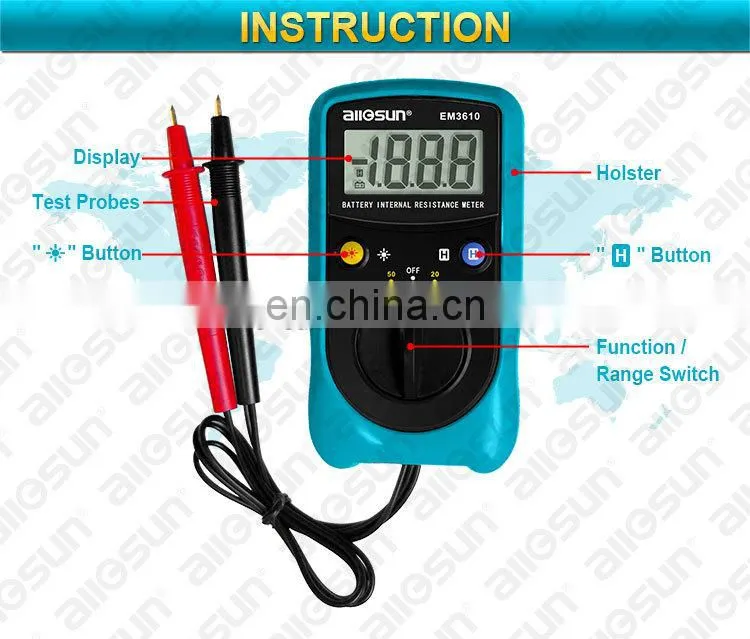

> This battery Internal Resisitance Meter is an interlligent instrument which can be
used for battery online measurements.

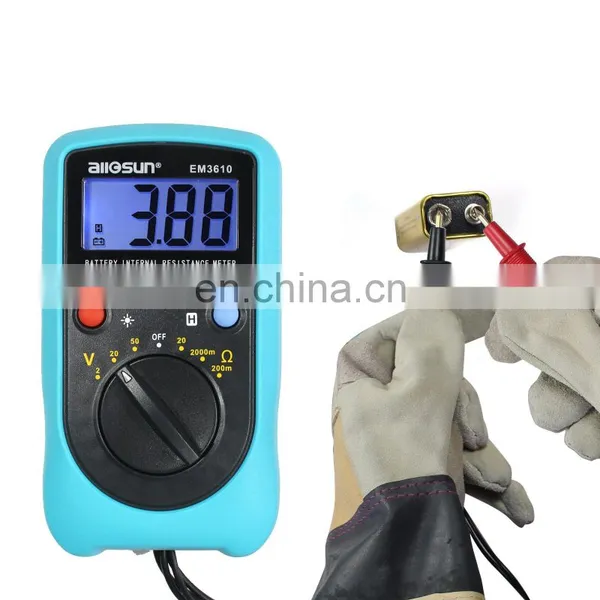

> It can be used to measure battery terminal voltage and internal resistance as
well as to make normal resisitance measurements.
> This internal resisitance is measured with the internaltional standard AC signal

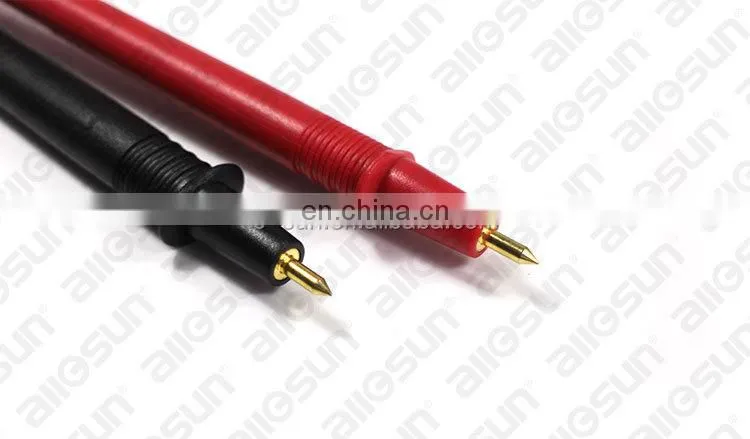

(1000Hz ±10%) by means of four-wire method to eliminate the impact of the
resistance of the test leads on the measured valus, and the battery voltage can
also be measured by the same connection method.
> It is applicable for measurements of internal resistance of Lithium-ion, nickel-
hydroxide, lithium-mangance cells or assembled battery.
GENGRAL SPECIFICATION
SPECFICATION
Accuracy is specified for a period of one year after calibration and at 18 degree to 28 degree,with relative humidity <75%,Accuracy specifications take the form of:+-(%of Reading)+(number of Least Significant Digits)

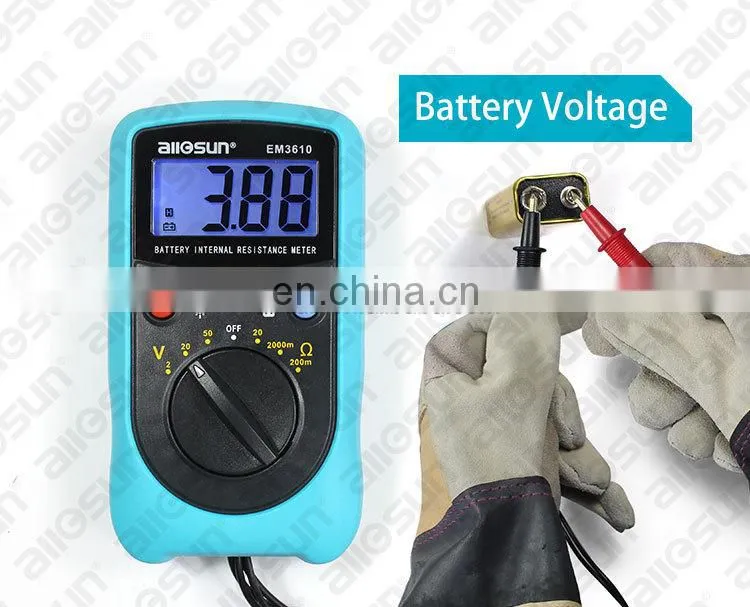

Battery Voltage
|
Range |
Resolution |
Accuracy |
|
0~1.999V |
1mV |
+-(1%+2) |
|
2.00~19.99V |
10mV |
|
|
20.0~50.0V |
100mV |

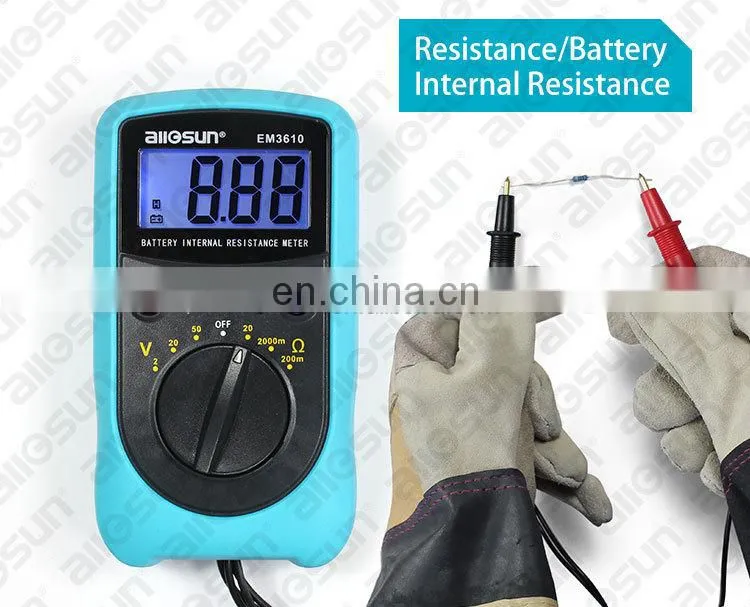

Resistance/Battery Internal Resisitance
|
Range |
Resolution |
Accuracy |
|
0~199.9mΩ |
1.0mΩ |
+-(3%+5) |
|
200mΩ~1999mΩ |
10mΩ |
|
|
2.00Ω~19.99Ω |
100mΩ |
