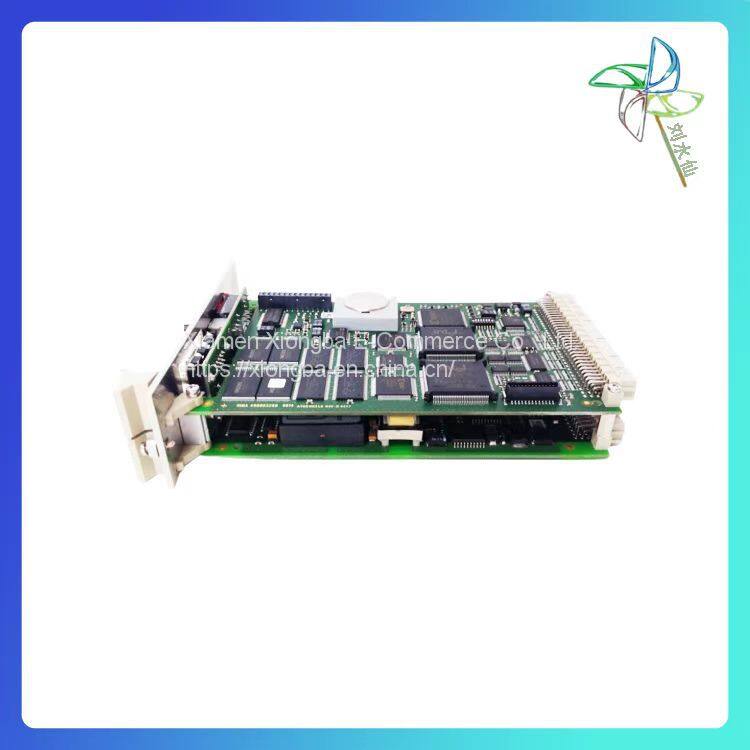

HIMA F8628X Communication Module

Contact person: Linda

Contact number: +86 18050025541 (WeChat：18050025541)

E-mail: 3005304301@qq.com

HIMA HIMATRIX F8628X Module One Year Warranty

Description

The digital outputs can be used to detect the inputs for short-circuits and open-circuits, e.g., for an EMERGENCY STOP button complying with Cat. 4 in accordance with EN 954-1. To this end, the outputs are pulsed and connected to the safety-related digital inputs of the same device, see Chapter 3.1.1. In this case, the digital outputs assume the function of pulsed outputs.

Inductive loads may be connected with no free-wheeling diode on the actuator. However, HIMA strongly recommends connecting a protective diode directly to the actuator. Reaction in the Event of a Fault If the device detects a faulty signal on a digital output, the affected module output is set to the safe (de-energized) state using the safety switches. If a fault in the device occurs, all digital outputs are switched off. In both cases, the devices activates the FAULT LED. The error code allows the user to configure additional fault reactions in the user program.

Quick View

1. Original New from Germany

2. Condition: Factory sealed

3. Warranty: 365 days

4. Service: 24hous/7days

5. Shipping to all over the world is available

Technical data

Processor: 32 Bit Motorola CPU MPC860T with integrated RISC communication controller

Operating voltage: 5 VDC / 1 A

Space required: 3 HU (units high), 4 SU (units width)

Serial interface FB: With PROFIBUS-DP slave module; Connection via a 9-pole SUB-D plug

Ethernet interface: 10Base-T or 100Base-TX according to the IEEE 802.3 standard, connection via an RJ-45 plug.

HSR interface: High-speed serial communication interface to the redundant, HSR (High Speed Redundancy) communication module. Connection via an RJ-12 plug with BV 7053.

Diagnostic Display: 6 LEDs for display diagnostic during operation

DIP switches: 2 DIP switches for setting the module functions

Functions of the F 8628X

With the F 8628X communication module, a HIMA H41q/H51q controller can operate as a PROFIBU-DP Slave.

Beginning with operating system version 4.x, the F 8628X supports the function "ELOP II TCP". The ELOP II TCP connection enables a fast data exchange between a PADT (PC) and the F 865x central module.

Note: The F 8628X has the same functions as the F 8628 and is compatible with it; however, the new function "ELOP II TCP" can only be used with an F 8628X with an operating system beginning with V4.x.

Hima Main Serise:

1. CPU: F8650X, F8650E, F8641
2. Power Distribution Module: F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE； F8621A, F8627X, F8628, F8628X

4. Input Module： F3221, F3222, F3223, F3224, F3236, F3237, F6208, F6214, F6215, F6216, F6216A, F6217, F6220, F6221
5. OUTPUT MODULE: F3330, F3331, F3332, F3333, F3334, F3322, F7126, F6705, F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802, F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201, Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block: F7553
