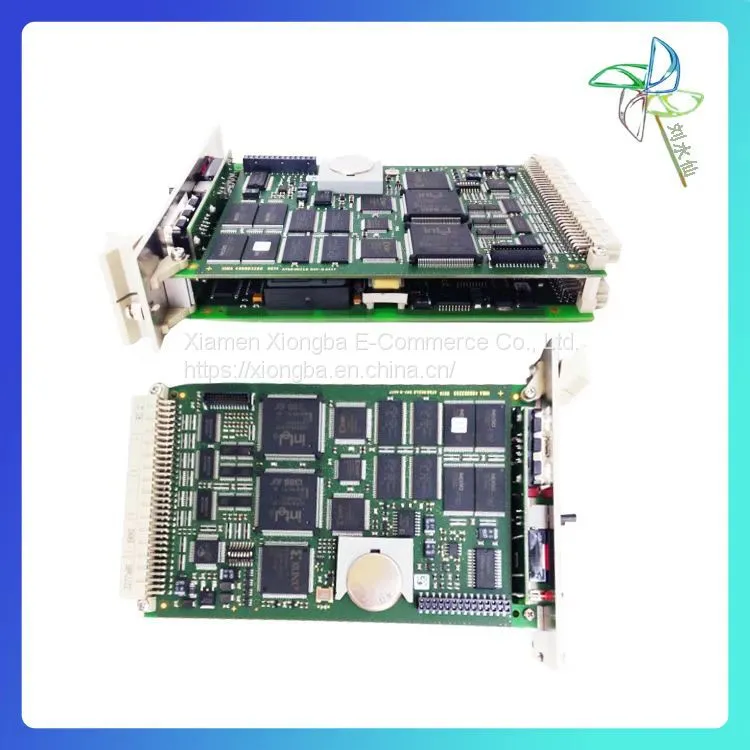

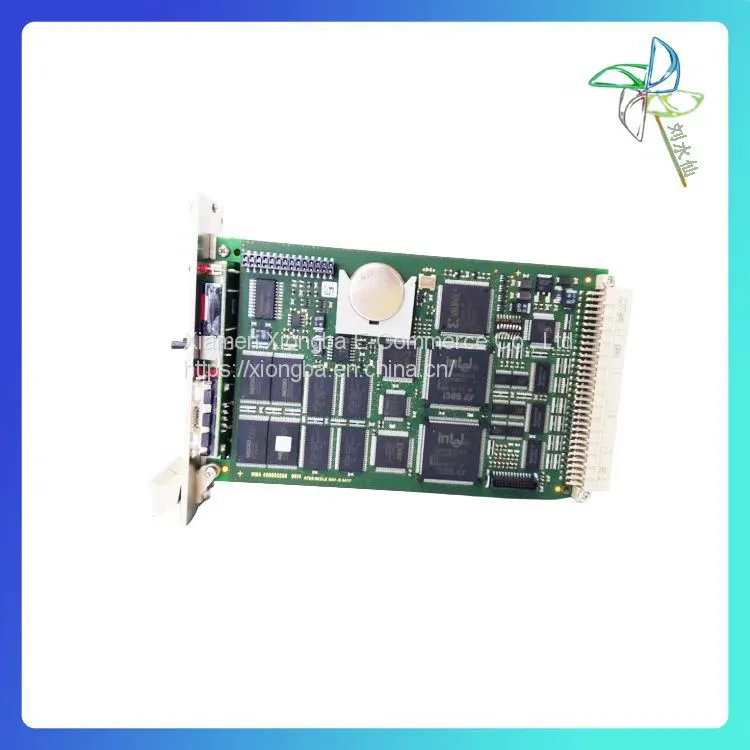

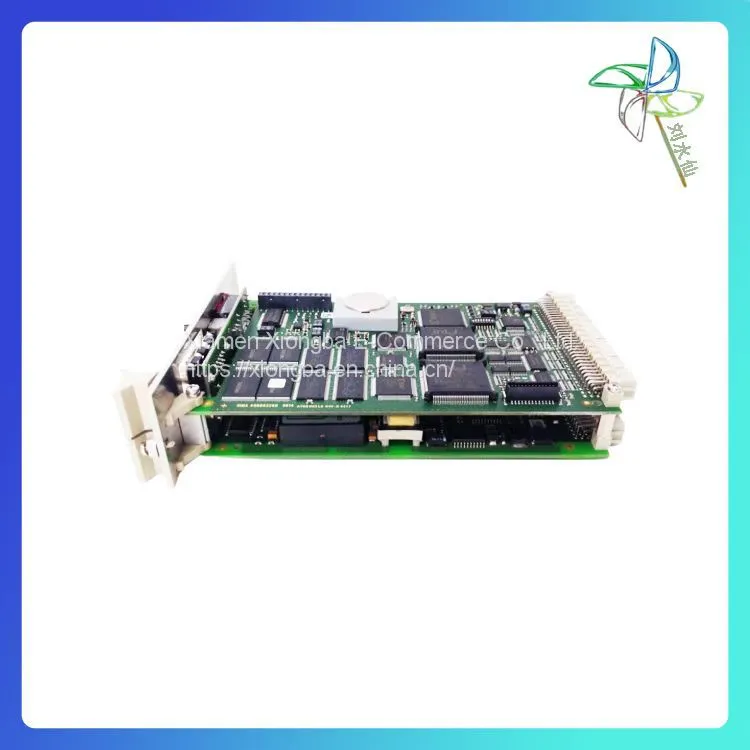

F8621A| HIMA |CPU Module

HIMA HIMATRIX F8621A Module One Year Warranty

Description

The digital outputs can be used to detect the inputs for short-circuits and open-circuits, e.g., for an EMERGENCY STOP button complying with Cat. 4 in accordance with EN 954-1. To this end, the outputs are pulsed and connected to the safety-related digital inputs of the same device, see Chapter 3.1.1. In this case, the digital outputs assume the function of pulsed outputs.

Inductive loads may be connected with no free-wheeling diode on the actuator. However, HIMA strongly recommends connecting a protective diode directly to the actuator. Reaction in the Event of a Fault If the device detects a faulty signal on a digital output, the affected module output is set to the safe (de-energized) state using the safety switches. If a fault in the device occurs, all digital outputs are switched off. In both cases, the devices activates the FAULT LED. The error code allows the user to configure additional fault reactions in the user program.

Contact person: Linda

Xiamen Xiongba E-Commerce Co., Ltd.

Address: Unit 2009, 1733 Lvling

Road, Siming District, Xiamen city, Fujian Province, China

Contact number: +86 18050025541 (WeChat：18050025541)

E-mail: 3005304301@qq.com

Hima Main Serise:

1. CPU: F8650X, F8650E, F8641
2. Power Distribution Module: F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE； F8621A, F8627X, F8628, F8628X

4. Input Module： F3221, F3222, F3223, F3224, F3236, F3237, F6208, F6214, F6215, F6216, F6216A, F6217, F6220, F6221
5. OUTPUT MODULE: F3330, F3331, F3332, F3333, F3334, F3322, F7126, F6705, F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802, F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201, Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block: F7553
