LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved

LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved thumbnail-1
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved thumbnail-2
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved thumbnail-3
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved thumbnail-4
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved photo-1
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved photo-2
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved photo-3
LED Lampara Mineras Mining Headlamp KL6Ex ATEX Approved photo-4
US$ 60 - 65 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASTTAR
Place of Origin:
China
Model Number:
KL6Ex
Contact Supplier Request Quote Chat Now
Shaanxi ASTTAR Explosion-proof Safety Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an, Tianjin, Shanghai, Qingdao
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ASTTAR
Place of Origin China
Model Number KL6Ex
Certification CE
Lamp Body Material ABS
Lamp Power(W) 1
Input Voltage(V) AC(85~265)
Working Lifetime(Hour) 5000
Working Temperature(℃) 0, 40
Application mining, tunneling, construction

ASTTAR Miners Cap Lamp LED Headlamp ATEX LED Explosion Proof LED Cap Lamp KL6Ex


ATEX Certificate No.: Baseefa09ATEX0205-Issue 3
in accordance with Directive 2014/34/EU:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000

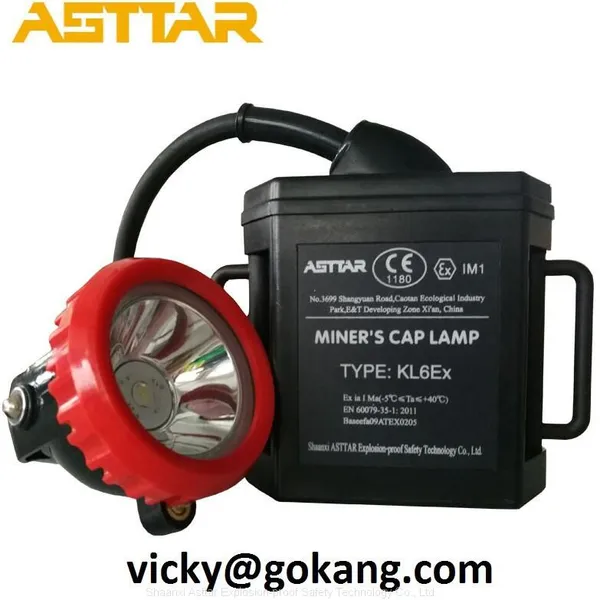

Cap lamp KL6Ex is specially designed for use in underground coal mining operations.



KL6Ex utilizes 6000mAh capacity lithium-ion batteries, the batteries are sealed in a high impact-resistand and water-resistant ABS enclosure, maintenance for free.


KL6Ex adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 17 hours.

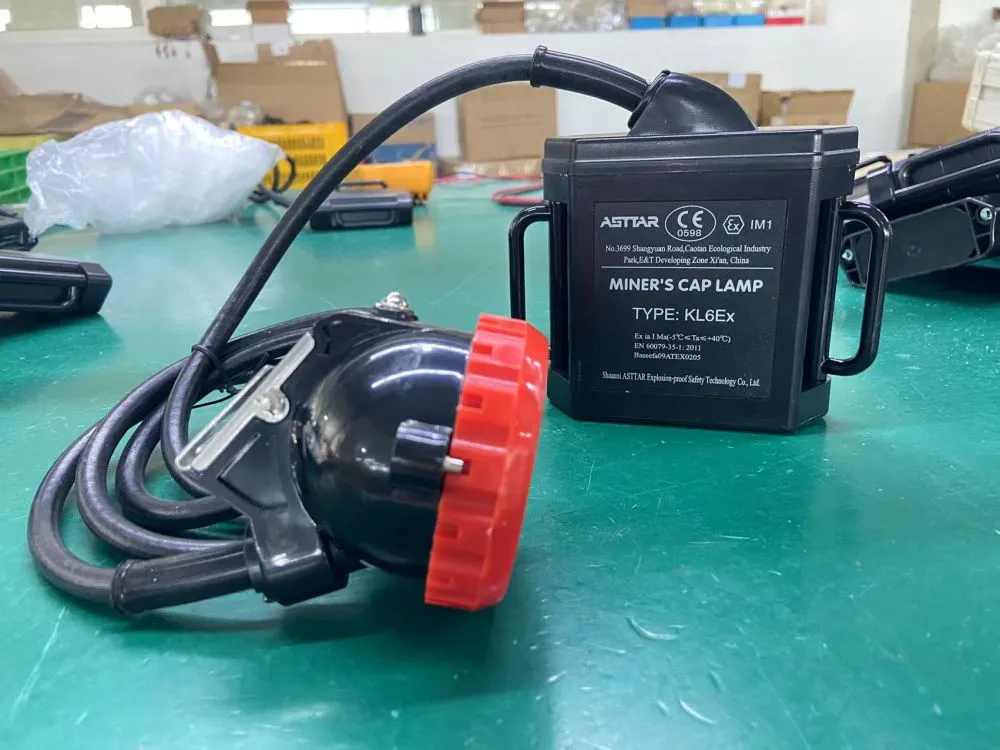

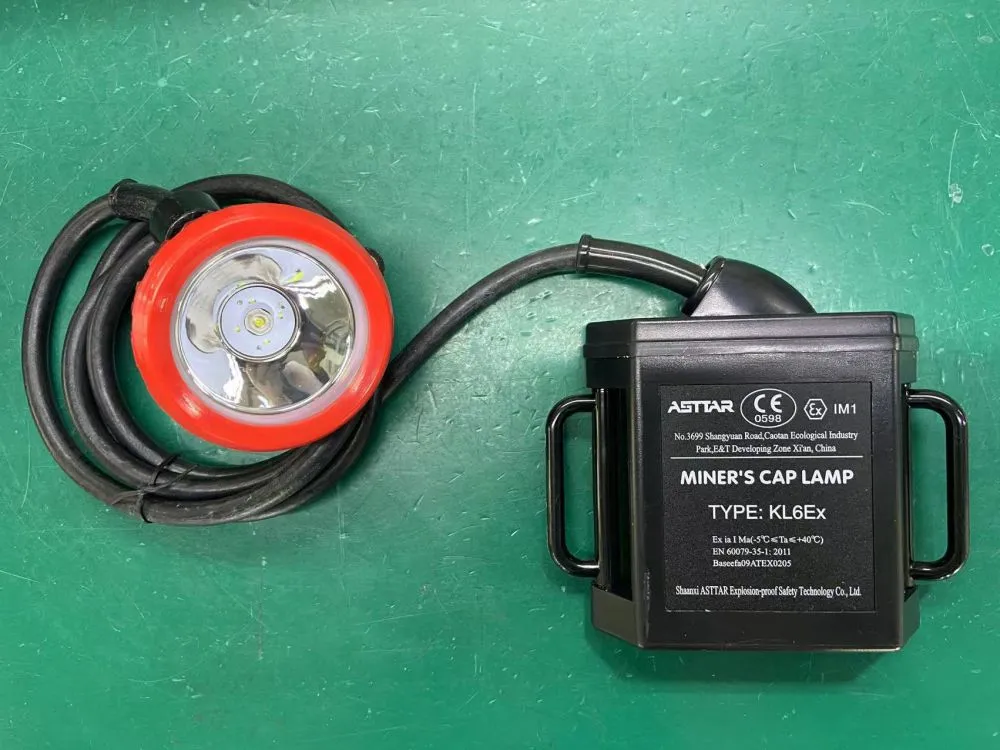

The head piece and battery box are connected by a cable with length of 1.45 meters, the head piece with a  stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.



Technical data
Battery capacity
Li-ion, 6000mAh
Rated voltage
3.7V
Lighting time
> 17 hours


Main light source
Working current
0.28A
            Illumination
At a distance of 1m apart from the lamp
Lighting begin
≥5500Lux
After 11 hours
≥5000Lux
Auxiliary light source
Working current
0.06A
Cap lamp lifespan
2 years
Charging time
Charging voltage
(6~8)V
Charging cycle
> 800 cycles
Explosion protection type
Ex ia I Ma
Ingress protection
IP65
Dimension
Headpiece: Φ71×75 mm, Battery pack: (72*65*18)mm
Weight
630g
Cable length
1.45m

202503101003471 (4)1 (8)asttar safety

Product Tags: miners lamp , mining cap lamp , mining lamp
