Home > Products > Mining cap lamp > Led Corded Mining Cap Lamps

Led Corded Mining Cap Lamps

FOB Price

US$ 60 - 65 / Set

8 Sets(Min. Order)

Port Xi'an, Tianjin, Shanghai, Qingdao
Payment TermsT/T Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ASTTAR	Place of Origin	China
Model Number	KL6Ex	Certification	CE
Lamp Body Material	ABS	Lamp Power(W)	1
Input Voltage(V)	AC(85~265)	Working Lifetime(Hour)	5000
Working Temperature(℃)	0, 40	Application	mining, tunneling, construction

Product Description

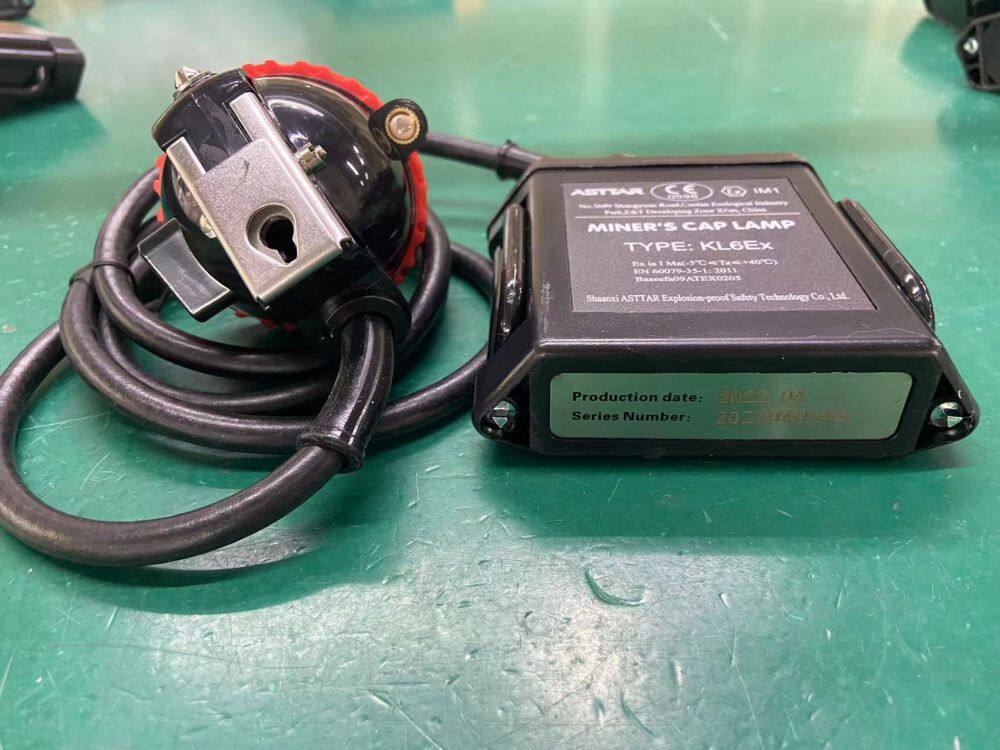

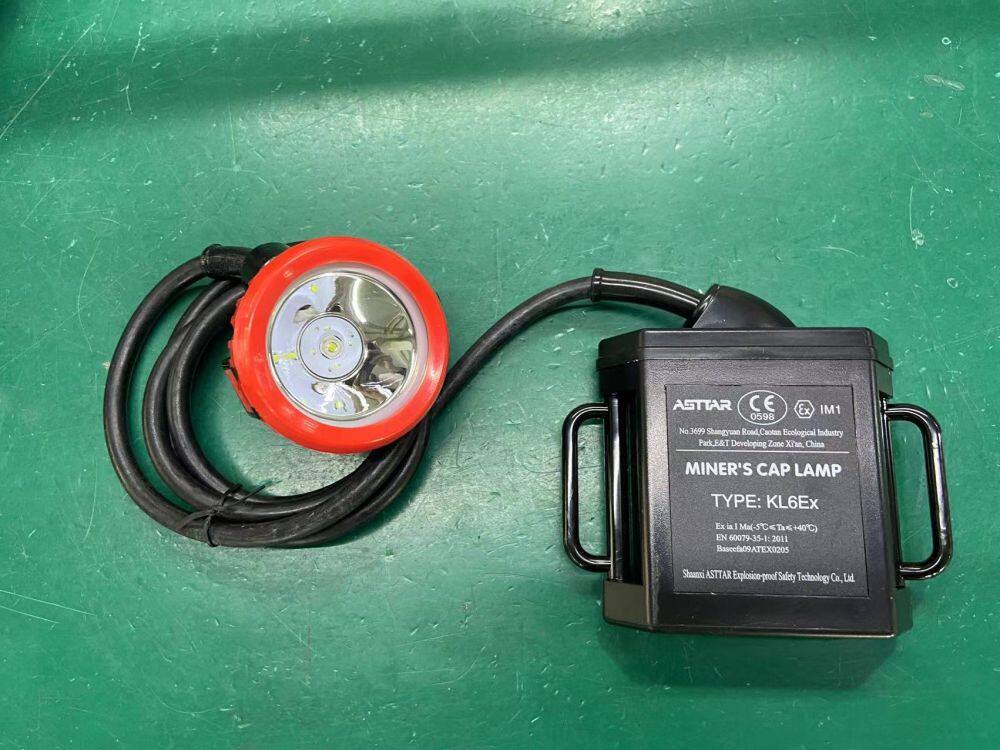

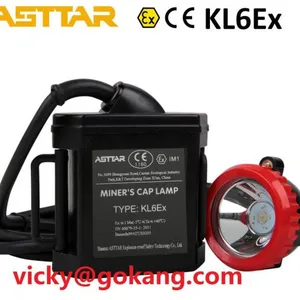

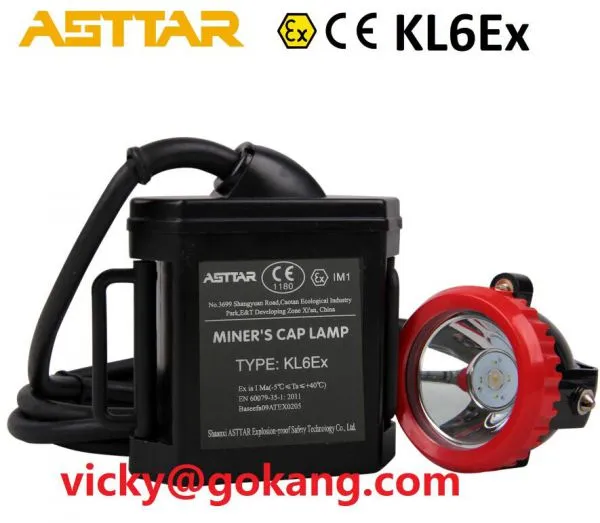

KL6Ex miner rechargeable headlamp

ATEX Certificate No.: Baseefa09ATEX0205-Issue 3
in accordance with Directive 2014/34/EU:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000

Cap lamp KL6Ex is specially designed for use in underground coal mining operations.

KL6Ex utilizes 6000mAh capacity lithium-ion batteries, the batteries are sealed in a high impact-resistand and water-resistant ABS enclosure, maintenance for free.

KL6Ex adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 17 hours.

The head piece and battery box are connected by a cable with length of 1.45 meters, the head piece with a stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.

Technical data

Battery capacity	Li-ion, 6000mAh
Rated voltage	3.7V
Lighting time	> 17 hours
Main light source	Working current	0.28A
	Illumination At a distance of 1m apart from the lamp	Lighting begin	≥5500Lux
		After 11 hours	≥5000Lux
Auxiliary light source	Working current	0.06A
Cap lamp lifespan	2 years
Charging time	<10 hours
Charging voltage	(6~8)V
Charging cycle	> 800 cycles
Explosion protection type	Ex ia I Ma
Ingress protection	IP65
Dimension	Headpiece: Φ71×75 mm, Battery pack: (726518)mm
Weight	630g
Cable length	1.45m
