KL1.2Ex wireless mining headlamp atex approval

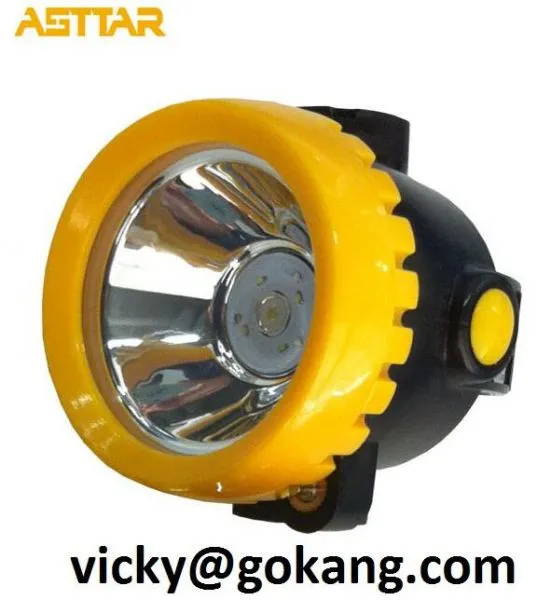

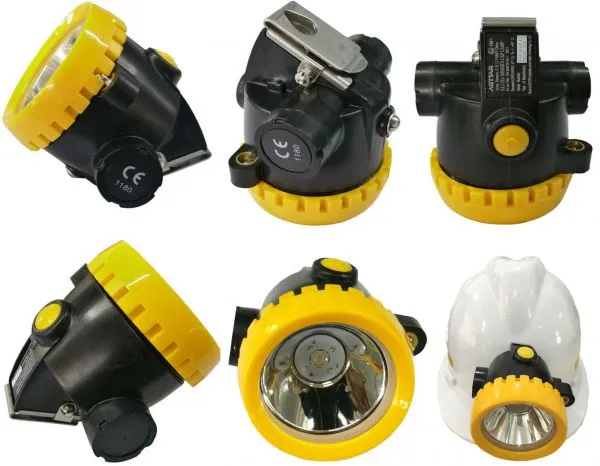

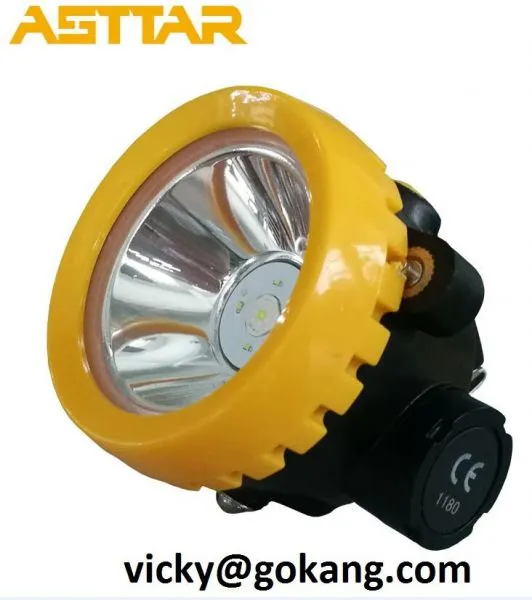

flame-proof mining cap lamp KL1.2Ex

ATEX No.: Baseefa12ATEX0052-Issue 2

Specification

Rated voltage ...........................................  3.7 V

Battery ......................................................  1.4 Ah, Li-ion

Lighting time ............................................  15 hours

Explosion protection type ......................  Ex iaI

Maximum Illumination (1m apart from the lamp)

Beginning of lighting...............................  >2200 Lux

After 11 hours lighting............................  >2000 Lux

Main Light current ...................................  0.12 A

Sub-light current ......................................  0.06 A

Life of cap lamp .......................................  2 years

Charging time ..........................................  <10 hours

Charging voltage .....................................  6-8 V

Ingress protection ...................................  IP65

Weight ......................................................  200g

Exterior dimensions ...............................  Φ67x80x75mm

Features

Miners lamp KL1.2Ex belongs to Group I, category M1, ATEX approved by Baseefa in England, is intrinsically safe, can be used for continous work underground mines and confined space where potential explosive atmosphere (like methane) and coal dust exist, with one main light and four emergency lights.

All-in-one design is very portable, only 200g, a electronic switch controls the ON/OFF of the main/auxiliary light sources.

A charging control circuit is fitted inside the headpiece of the lamp, enables the lamp can be charged by other manufacturer’s chargers

Current-limiting resistance, quick-melting fuse, overcurrent and overheat protective device built in headpiece make lamp work safely, maintenance free,

We offer different charging devices for one, ten and eighty units: KZC1B, KZC10A, KZC80A.

Standards
-EN 60079-0: 2012
-EN 60079-11: 2012
-EN60079-35-1: 2011
-EN 50303:2000
