QPS Paper Straw Making Machine equipped with a multi-knife cutting system, work perfect for many different type and specification of paper straws. All Starbucks paper straw in Korea are made by our machine

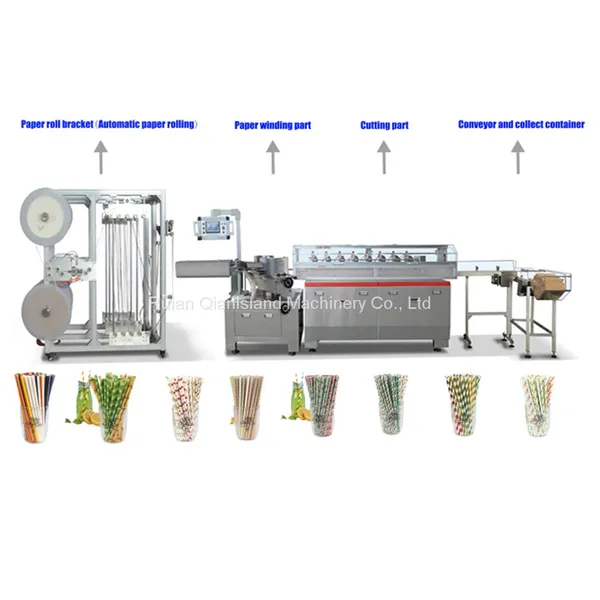

QPS Paper Straw Making Machine integrates automatic paper connection, forming, cutting and collecting. QPS Paper Straw Making Machine adopt CNC multi cutters system to produce paper straw directly. Paper straws produced by our machine can withstand 100°C, and can be biodegradable.
Specification
| Raw Material | Pure wooden pulp paper |
| Paper Layers | 3-4 layers |
| Paper Thickness (from inside to outside) | 120g/m², 120g/m², 60g/m² |
| Tube Thickness | 0.3-2mm |
| Running Speed | 40-100m/min |
| Tube Size | 4.5-12mm |
| Cutting System | Full servo motor, 8 set knives |
| Cutting Length | 70-1050mm |
| Paper Roll Bracket | 1600*2000*1100mm |
| Main Part | 2300*860*1270mm |
Electrical configurations
| Main Motor | Co-trust (1.5kw) |
| Driver | Co-trust |
| Touch Panel | Siemens |
| Servo Motor | Co-trust |
| Bearing | HRB |
| Electronic components | Omron |
| Pneumatic parts | Airtag |
Feature
1. Use PLC control, equipped with frequency conversion speed regulation, man-machine interface for the touch screen, easy to operate.
2. QPS Paper Straw Making Machine has sterilization function.
3. Won't be affected by the weather and the glue.
4. The product loss rate is greatly reduced.
5. The final paper straw is harder than the other same thickness paper straw.
6. The whole machine adopts servo motor.
7. The paper straws can withstand in high temperature and be degradable.
8. Can produce both paper straw with glue and no-glue.
9. No-glue straw technology have got patent.

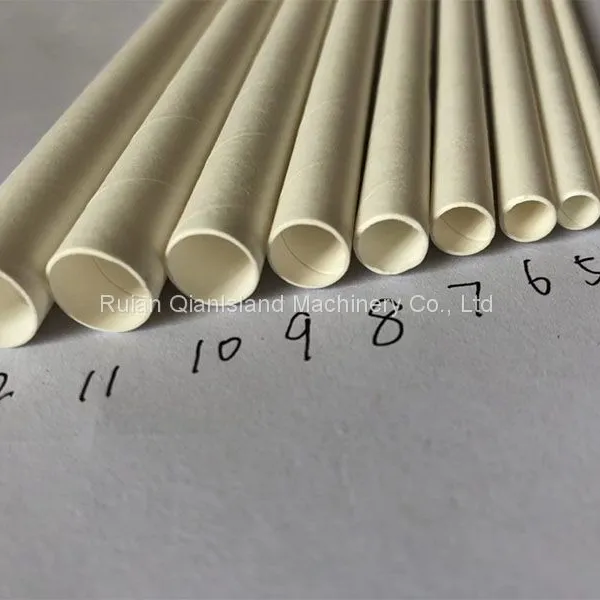

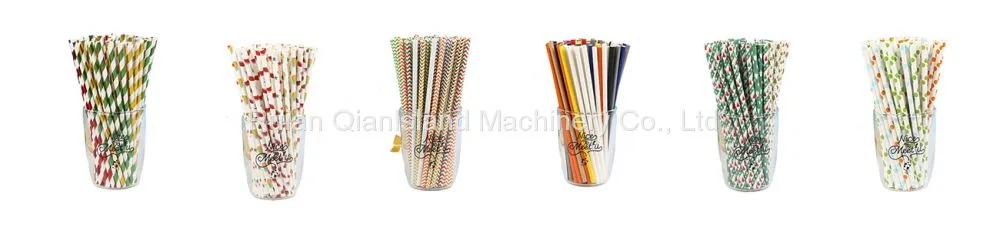

Sample
