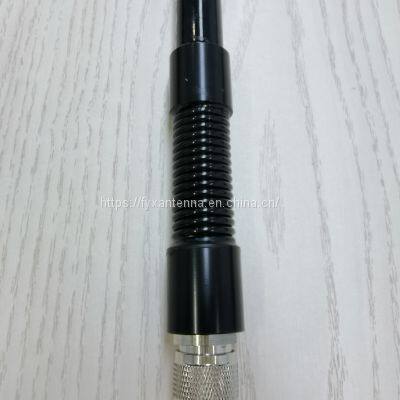

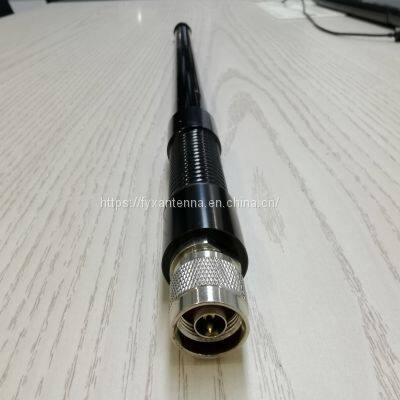

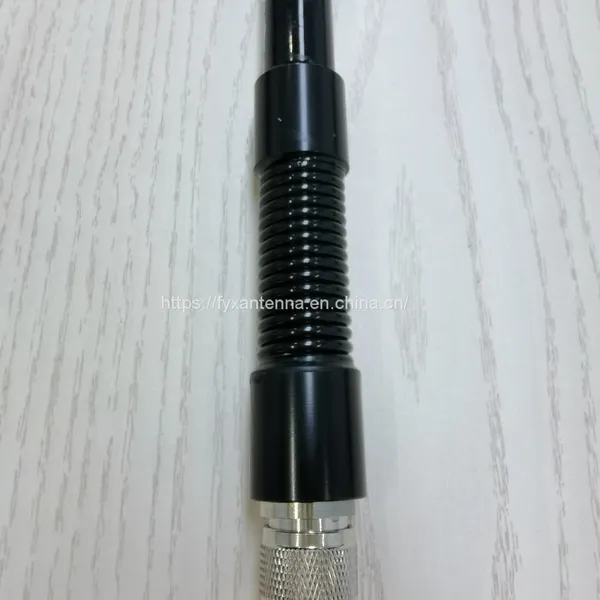

2.4GHz 5.8GHz 5GHz WIFI Dual Band Omni Outdoor Antenna with spring termination
The Omni Fiberglass Antenna is an outdoor antenna that can increase the signal strength received by the communication module. The antenna can be mounted on field mobile station, outdoor CPE, etc.
2.4GHz 5GHz Omni Outdoor Antenna Electrical Specifications
Freq. Range: 2400-2500/5150-5850MHz
Gain: 5 dBi
VSWR: ≤2.0
Horizontal Beam width: 360º
Vertical Beam width: 17±3º
Impedance: 50Ω
Polarization: Vertical
Max. Power: 50W
Lightning Protection: DC Ground
Connector: N male or female
WIFI Dual Band Antenna Mechanical Specifications
Antenna Dimension: ф20*350 mm
Radome Color: Gray or black
Rated Wind Velocity: 36.9m/s
Operating temperature: -40~80℃
Waterproof Degree: IP65
