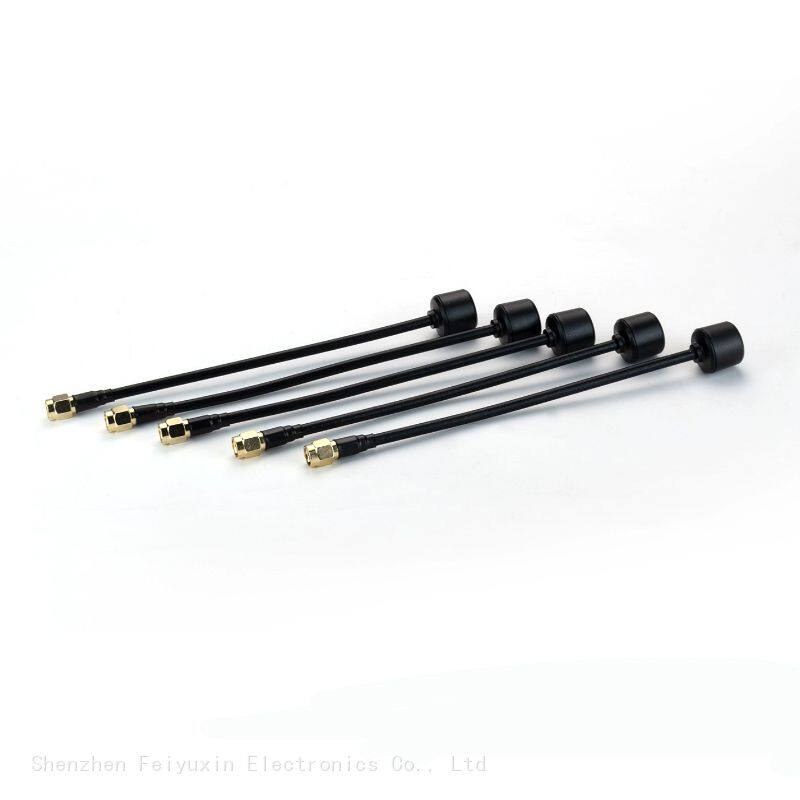

Long Range Lollipop FPV Antenna 5.8G 3dBi Super Mini RHCP SMA Antenna for RC Drone
Product Features
Omnidirectional, suit for 5.8G AV transmitter and receiver with high efficiency.
Perfect for any fpv tx and rx, goggles, monitors, high-efficiency transmission.
Arbitrary bending feature, heat/cold-resistant, it can greatly lower the cost of maintenance and give you a truly carefree flight.
Product Specification - FPV Antenna for RC Drone
Freq. Range: 5150-5900MHz (can be tuned according to your request)
Gain: 3 dBi
VSWR: ≤1.5
Impedance: 50Ω
Polarization: RHCP
Connector: SMA male or customized
Radome Color: Black
Operating temperature: -40~80℃
Antenna frequency and connector can be customized. Please contact us to design your own antenna type.
FAQ
Q: What is an FPV antenna?
A: In the realm of FPV (First Person View) drones, there's an essential yet often underestimated component — the FPV antenna. These antennas enable the wireless communication between your drone's radio system and the receiver, as well as the video transmitter and the video receiver.
Q: What frequency is the FPV antenna?
A: In this post we will discuss the differences in frequency bands for FPV: 5.8GHz, 2.4GHz, 1.2-1.3GHz and 900MHz. Each of these frequencies have pro's and con's such as range, cost, antenna size and regulations. Some of the links on this page are affiliate links.
Q: What are the different types of antenna connectors for FPV?
A: SMA (RP-SMA), MMCX and U. FL are the three main types of connector used in FPV transmitters, receivers and antennas.
Q: How to choose an antenna for FPV goggles?
A: For reliable performance, you should only use an omnidirectional antenna on the video transmitter. This is because FPV drone is always moving and rotating, and it would be impossible to keep a directional antenna aimed at the pilot's video receiver.

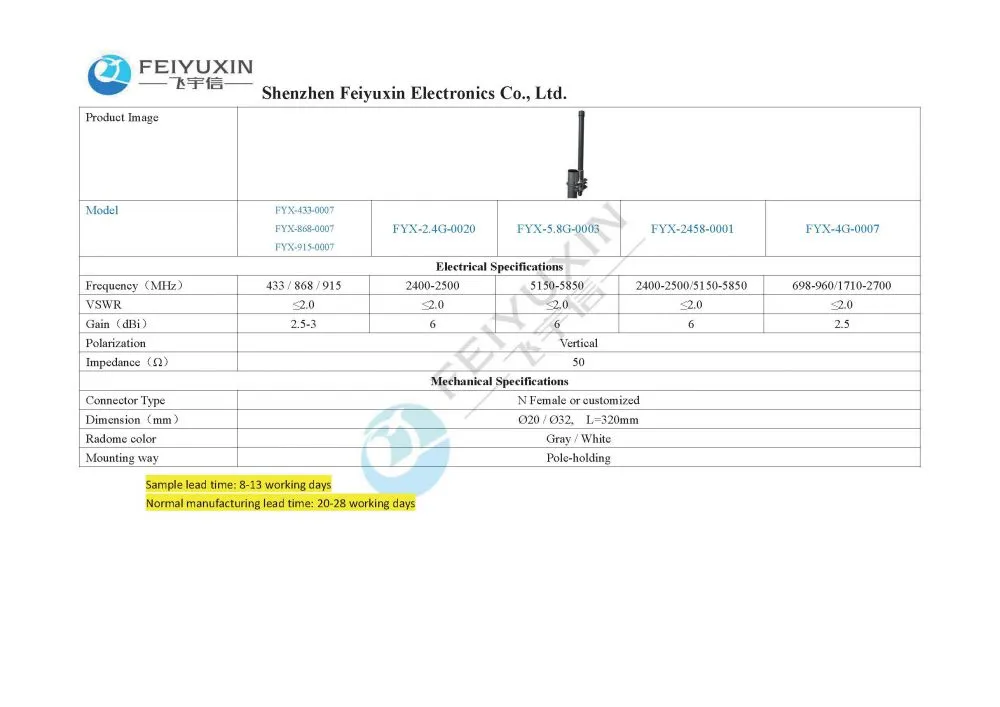

Related Products - Omni Fiberglass Antenna & Antenna Cable
Company Profile - Shenzhen Feiyuxin Electronics Co., Ltd
Feiyuxin has more than 15 years' experience in antenna manufacturing. Products are widely applied to Internet of Things (IoT), LoRa system, RFID systems, smart grid, smart home, wireless gateway, GPS vehicle tracking, meter readers, etc..
Cooperating with leading companies in many industries, Feiyuxin can offer you cutting-edge and various antenna solutions.
OEM and ODM services are available. Please don't hesitate to contact us for more details.
