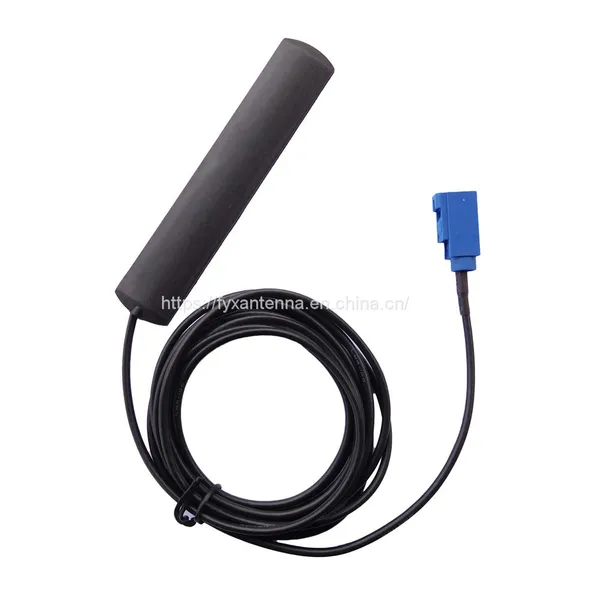

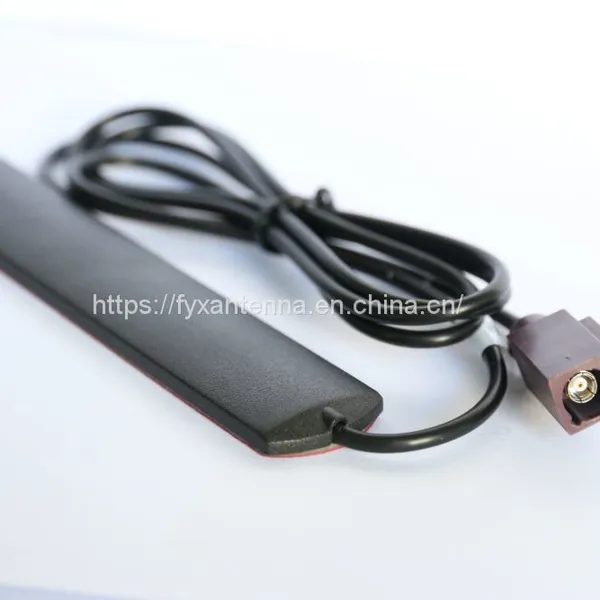

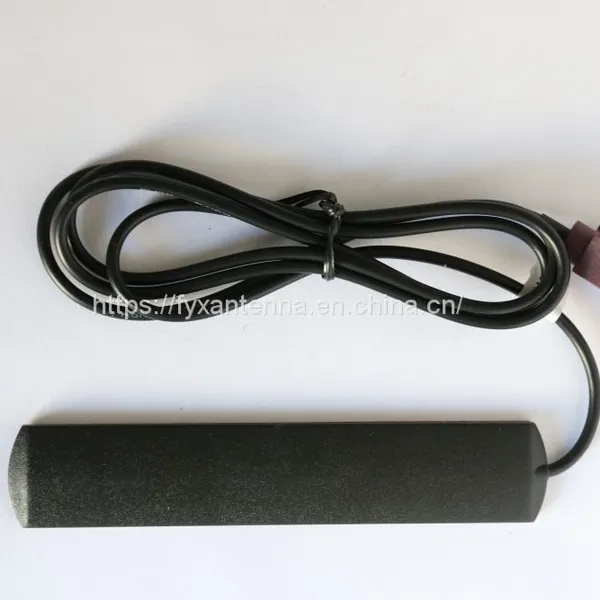

WiFi Antenna 2.4G 5.8G Fakra Jack Window Patch 3dBi Antenna Omni-Directional

WiFi Antenna 2.4G 5.8G Fakra Jack Window Patch 3dBi Antenna Omni-Directional

Application:
M2M applications such as vending machines, meter housings, equipment sheds, or other locations requiring an inconspicuous low-profile external antenna. Can also be vehicle mounted for buses, vans, trucks or other mobile installations.
This antenna suitable mounting on smooth metal, glass, plastic, stone or even wood surfaces.

WIFI Patch Antenna Specifications

I. Electrical Specifications

Frequency range: 2400-2500/5150-5850 MHz

Gain: 3dBi

VSWR: ≤2.0

Input impedance: 50 Ω

Polarization: Vertical

Maximum input power: 50 W

Radiation: Omni-directional

Input connector type: FAKRA or customized

II. Mechanical Specifications

Antenna Length: 4.5 in / 115mm

Antenna Width: 0.83 in / 22mm

Operating temperature: -10～70 ℃

Antenna shell color: Black

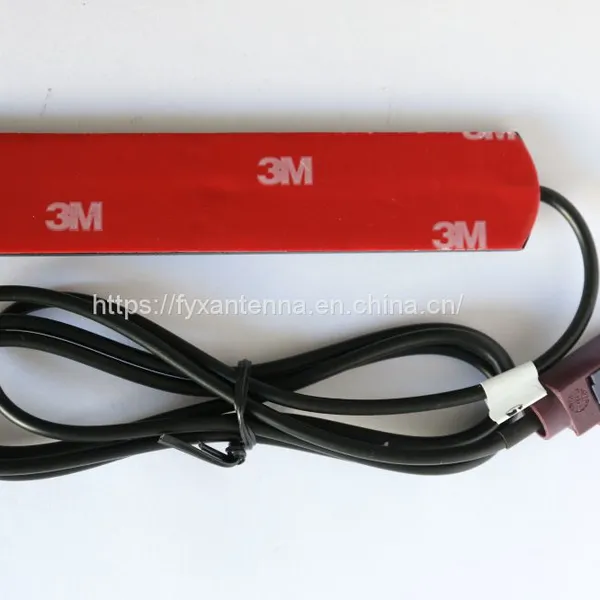

Fixing way: Adhesive
