Chinese supplier Outdoor 6/12/24 Core Duct Aerial Optical Fiber Cable
We are 20 years fiber optic cable manufacturer.
We can provide you the top-qualified cable and the best OEM serivce.

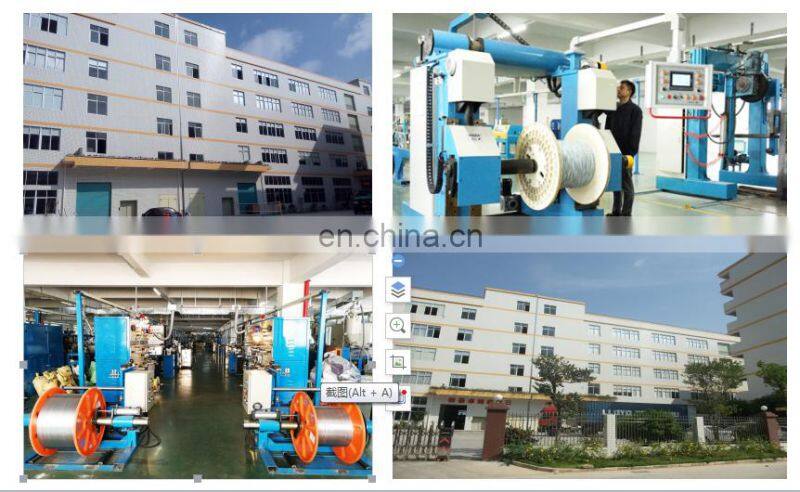

Welcome to visit our factory to verify the true ability of our company
We are pleasure to provide FREE SAMPLE, pls feel free to contact me.

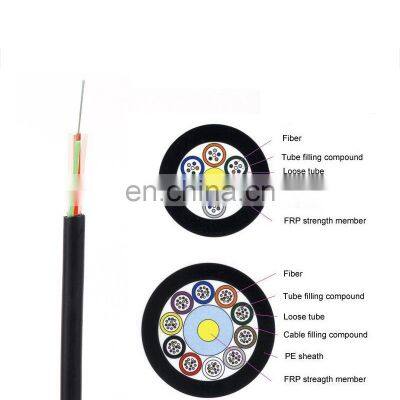

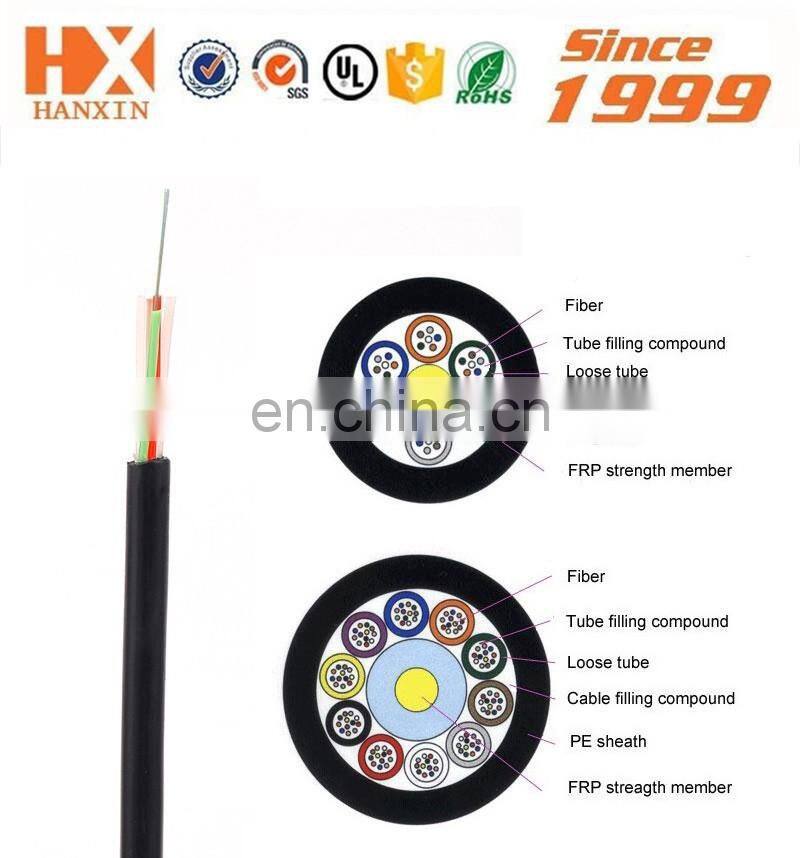

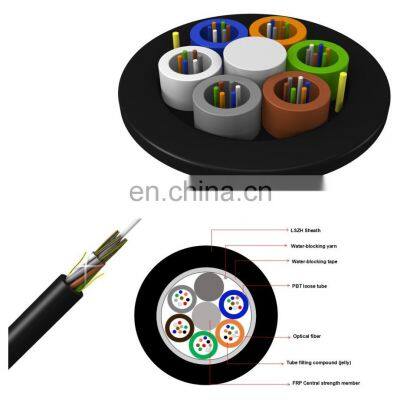

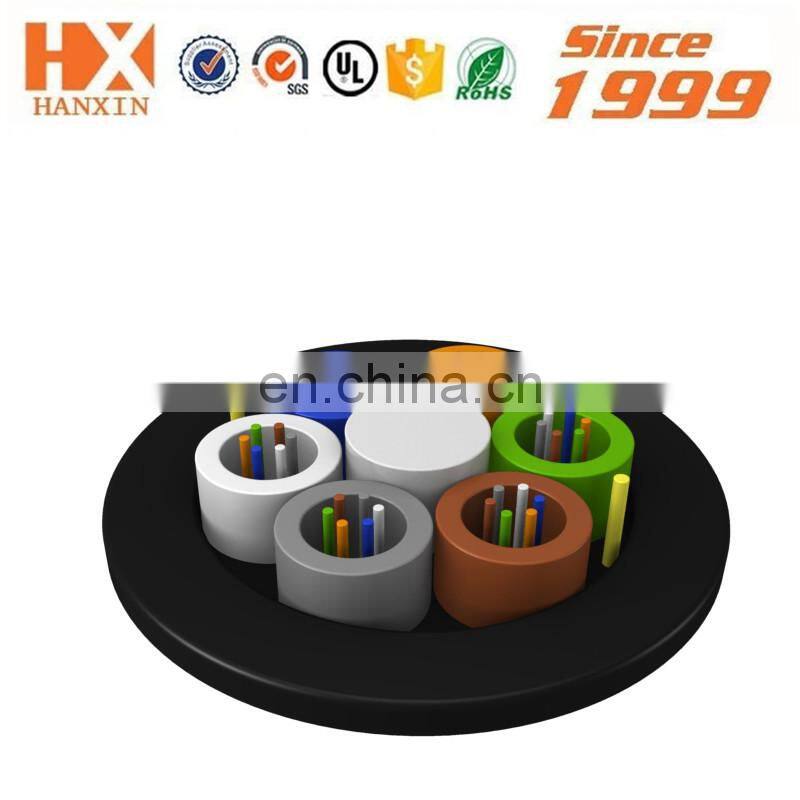

- Single-Jacket, Single-Armored Cables are designed for campus backbones in direct-buried installations.
- The loose tube design provides stable and highly reliable transmission parameters for a variety of voice, data, video and imaging applications.
- These cables also provide high-fiber density within a given cable diameter while allowing flexibility to suit many system configurations.
- The single armored construction provides additional crush and rodent protection with a high-strength ripcord under the armor for easy stripping.
- Gel-free means the cables are fully waterblocked using craft-friendly, water-swellable materials which make cable access simple and require no clean up.

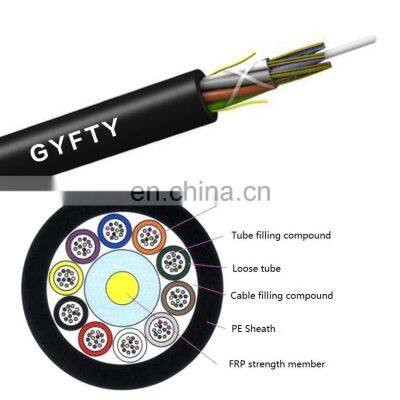

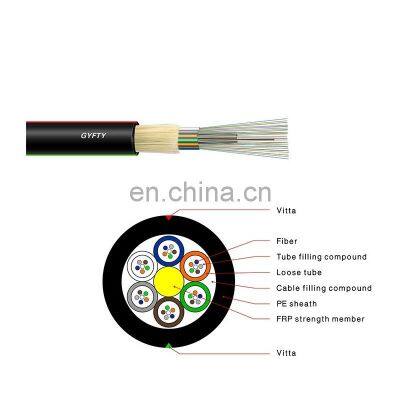

- The flexible, craft-friendly buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors
- while allowing easy midspan access.
- These cables have a medium density polyethylene jacket that is rugged, durable and easy to strip.
Fully waterblocked cables using craft-friendly, water-swellable materials
Rugged, durable and easy to strip medium density polyethylene jacket
Single armoured construction provides additional crush and rodent protection
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20℃) |
@850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
|
Bandwidht (Class A) |
@850 | ≥500MHZ·km | ≥500MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
|
Numerical Aperture |
0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm | |||
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 19 years’ history.
2.What is your fiber brand ?
NECERO,HANXIN,MECABLE, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your delivery time?
Usually within 2-3 working days
6. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
7.What is your payment way?
T/T, L/C, D/A,D/P, Moneygram,Western Union and Paypal.
8.How to Reduce the Fiber Splice Loss?
Use good fiber core.
Good splicer with skilled splicing.
The accessories such as connectors & adapters keep in low attenuation.
